Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H6184HCBCAP FILM 0.18UF 3% 630VDC RADIAL |
4,037 |
|
Datasheet | Radial | 0.18 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.453" W (20.70mm x 11.50mm) | 0.839" (21.30mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R75QN3220AA00KCAP FILM 0.22UF 10% 1KVDC RADIAL |
4,085 |
|
Datasheet | Radial | 0.22 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-FG2J155Q1CAP FILM 1.5UF 10% 630VDC RADIAL |
6,312 |
|
Datasheet | Radial | 1.5 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.472" W (27.00mm x 12.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
 Series Straight 26x14.jpg)
|
ECW-FA2J185JCAP FILM 1.8UF 5% 630VDC RADIAL |
9,306 |
|
Datasheet | Radial | 1.8 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.583" W (26.00mm x 14.80mm) | 0.780" (19.80mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
R73QN23304030JCAP FILM 0.033UF 5% 1KVDC RADIAL |
9,596 |
|
Datasheet | Radial | 0.033 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75PI2470AA30JCAP FILM 0.047UF 5% 630VDC RAD |
2,063 |
|
Datasheet | Radial | 0.047 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

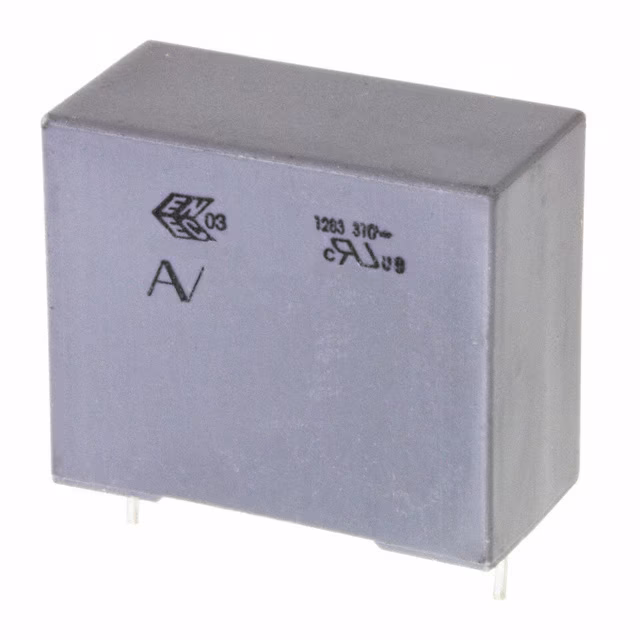

R49AN368000B1MCAP FILM 0.68UF 20% 800VDC RAD |
9,446 |
|
Datasheet | Radial | 0.68 µF | ±20% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
ECW-FD2W125JCAP FILM 1.2UF 5% 450VDC RADIAL |
1 |
|
Datasheet | Radial | 1.2 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.457" (11.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R76MN3470SE30JCAP FILM 0.47UF 5% 400VDC RADIAL |
6,916 |
|
Datasheet | Radial | 0.47 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E6824JFCAP FILM 0.82UF 5% 630VDC RADIAL |
8,629 |
|
Datasheet | Radial | 0.82 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.445" W (31.00mm x 11.30mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECW-F4394JLCAP FILM 0.39UF 5% 400VDC RADIAL |
4,398 |
|
Datasheet | Radial | 0.39 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.406" W (18.00mm x 10.30mm) | 0.654" (16.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R79MC2470Z340JCAP FILM 0.047UF 5% 400VDC RAD |
22 |
|
Datasheet | Radial | 0.047 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
R474I268050A1KV057CAP FILM 0.068UF 10% 1KVDC RAD |
2,101 |
|
Datasheet | Radial | 0.068 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
ECW-FD2J225JCCAP FILM 2.2UF 5% 630VDC RADIAL |
5,380 |
|
Datasheet | Radial | 2.2 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.488" W (25.30mm x 12.40mm) | 0.697" (17.70mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
ECW-F4434JLCAP FILM 0.43UF 5% 400VDC RADIAL |
8,107 |
|
Datasheet | Radial | 0.43 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.421" W (18.00mm x 10.70mm) | 0.673" (17.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-FG2J155JCAP FILM 1.5UF 5% 630VDC RADIAL |
6,395 |
|
Datasheet | Radial | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
|
ECW-F4334HLCAP FILM 0.33UF 3% 400VDC RADIAL |
5,655 |
|
Datasheet | Radial | 0.33 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.378" W (18.00mm x 9.60mm) | 0.622" (15.80mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-HC3B114JACAP FILM 0.11UF 5% 1.25KVDC RAD |
7,093 |
|
Datasheet | Radial | 0.11 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.559" W (20.70mm x 14.20mm) | 0.898" (22.80mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
ECW-F4514JLCAP FILM 0.51UF 5% 400VDC RADIAL |
8,499 |
|
Datasheet | Radial | 0.51 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.406" W (20.50mm x 10.30mm) | 0.720" (18.30mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F6364JLCAP FILM 0.36UF 5% 630VDC RADIAL |
3,218 |
|
Datasheet | Radial | 0.36 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.469" W (20.50mm x 11.90mm) | 0.787" (20.00mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
