Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F862BY474K310ALR0LCAP FILM 0.47UF 10% 630VDC RAD |
8,090 |
|
Datasheet | Radial | 0.47 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R46KN347000P1MCAP FILM 0.47UF 20% 560VDC RAD |
5,943 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
 Series Straight 18x8.jpg)
|
ECW-F2W824JACAP FILM 0.82UF 5% 450VDC RADIAL |
9 |
|
Datasheet | Radial | 0.82 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713" L x 0.323" W (18.10mm x 8.20mm) | 0.559" (14.20mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R53BN34705000KCAP FILM 0.47UF 10% 800VDC RAD |
6,103 |
|
Datasheet | Radial | 0.47 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.681" (17.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R46KN410000P0KCAP FILM 1UF 10% 560VDC RADIAL |
4,471 |
|
Datasheet | Radial | 1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R75MN34704030JCAP FILM 0.47UF 5% 400VDC RADIAL |
8,687 |
|
Datasheet | Radial | 0.47 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-UAAF105SACAP FILM 1UF 20% 275VAC RAD |
4,024 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R523N410050P1MCAP FILM 1UF 20% 630VDC RADIAL |
8,058 |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200, X2 | - |
|
ECW-F4273HLCAP FILM 0.027UF 3% 400VDC RAD |
2 |
|
Datasheet | Radial | 0.027 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.413" (10.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R46KN347040H1MCAP FILM 0.47UF 20% 560VDC RAD |
22 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
F861DI684K310ZLH0JCAP FILM 0.68UF 10% 310VAC RAD |
2,221 |
|
Datasheet | Radial | 0.68 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAF155MCAP FILM 1.5UF 20% 275VAC RADIAL |
3,982 |
|
Datasheet | Radial | 1.5 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.472" W (31.00mm x 12.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

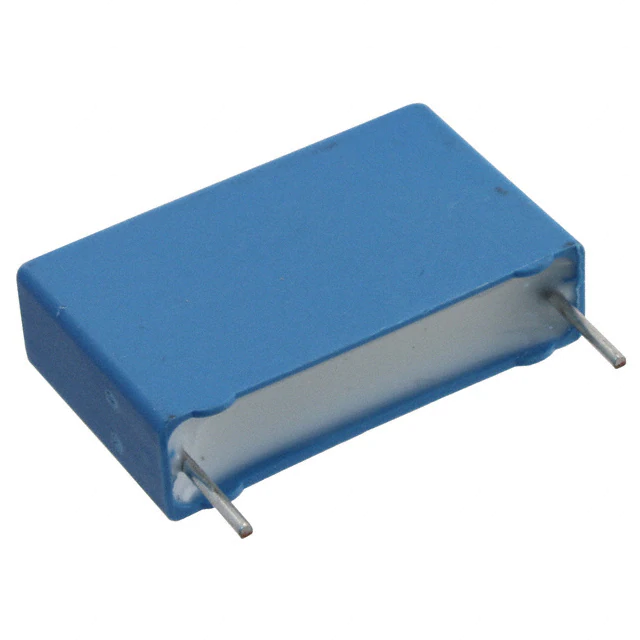

PHE840MD6330KD17R06L2CAP FILM 0.33UF 10% 760VDC RAD |
7,124 |
|
Datasheet | Radial | 0.33 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-F4683HLCAP FILM 0.068UF 3% 400VDC RAD |
9 |
|
Datasheet | Radial | 0.068 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.449" (11.40mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R76TN282050H4JCAP FILM 0.08UF 5% 1.6KVDC RAD |
5,676 |
|
Datasheet | Radial | 0.08 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 31 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-H12153JVCAP FILM 0.015UF 5% 1.25KVDC RAD |
5,009 |
|
Datasheet | Radial | 0.015 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.374" W (18.00mm x 9.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R46KR410000M1MCAP FILM 1UF 20% 560VDC RADIAL |
6,018 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE840MD6470KD15R06L2CAP FILM 0.47UF 10% 760VDC RAD |
5,062 |
|
Datasheet | Radial | 0.47 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R463R410040M1KCAP FILM 1UF 10% 630VDC RAD |
9,093 |
|
Datasheet | Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-F6183HLCAP FILM 0.018UF 3% 630VDC RAD |
3,700 |
|
Datasheet | Radial | 0.018 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.417" (10.60mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
