Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQQEW5650A3BJCAP FILM 65UF 5% 1.1KVDC RAD |
6,867 |
|
Datasheet | Radial - 4 Leads | 65 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQIEW6100A3BJCAP FILM 100UF 5% 800VDC RAD |
8,547 |
|
Datasheet | Radial - 4 Leads | 100 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
JSNEJ5430KB6L0CAP FILM 43UF 10% 100VDC SMD |
6,692 |
|
Datasheet | SMD, J-Lead | 43 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 1.181" W (17.30mm x 30.00mm) | 0.701" (17.80mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|

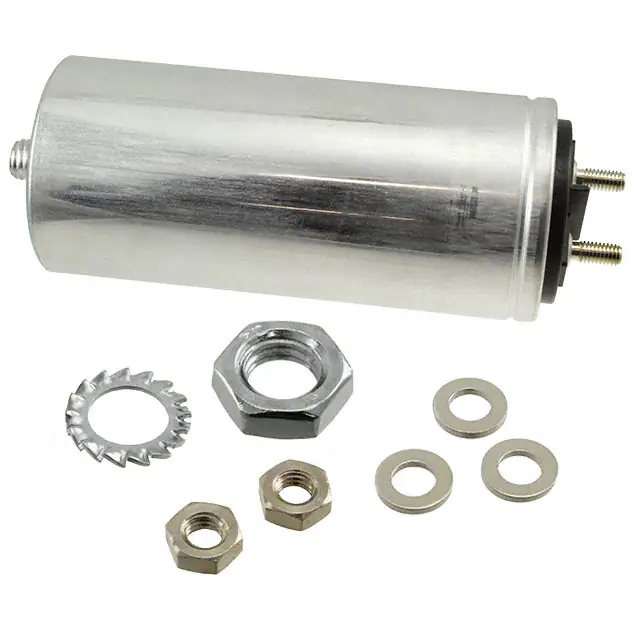

C44AFGP6100ZG0JCAP FILM 100UF 5% 400VDC RADIAL |
7,963 |
|
Datasheet | Radial, Can | 100 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44PRGR5680RASKCAP FILM 68UF 10% 1.4KVDC RADIAL |
7,329 |
|
Datasheet | Radial, Can | 68 µF | ±10% | 640V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44UQGT7110M53KCAP FILM 1100UF 10% 1.1KVDC RAD |
7,922 |
|
Datasheet | Radial, Can | 1100 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 9.370" (238.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UUGT7185M34KC44U_M, FILM, METALLIZED POLYPRO |
6,647 |
|
Datasheet | Radial, Can | 1850 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 13.740" (349.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
|
C44UQGT7255M35KC44U_M, FILM, METALLIZED POLYPRO |
1 |
|
Datasheet | Radial, Can | 2550 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 0.75 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 13.740" (349.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
|
C44UOGT7450M34KC44U_M, FILM, METALLIZED POLYPRO |
7,410 |
|
Datasheet | Radial, Can | 4500 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 0.95 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 13.740" (349.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
|
C44UOGT7400M35KC44U_M, FILM, METALLIZED POLYPRO |
4,641 |
|
Datasheet | Radial, Can | 4000 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 0.75 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 13.740" (349.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
R82MC1470Z350KCAP FILM 4700PF 10% 400VDC RAD |
8,540 |
|
Datasheet | Radial | 4700 pF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
PHE426MJ4330JR05CAP FILM 3300PF 5% 630VDC RADIAL |
31 |
|
Datasheet | Radial | 3300 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R82DC3330AA60JCAP FILM 0.33UF 5% 63VDC RADIAL |
5,808 |
|
Datasheet | Radial | 0.33 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.299" (7.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82DC3470Z360JCAP FILM 0.47UF 5% 63VDC RADIAL |
7,497 |
|
Datasheet | Radial | 0.47 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.299" (7.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
ECQ-E2104JFCAP FILM 0.1UF 5% 250VDC RADIAL |
6,534 |
|
Datasheet | Radial | 0.1 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.228" W (10.30mm x 5.80mm) | 0.370" (9.40mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
R46KI3100JBM1MCAP FILM 0.1UF 20% 560VDC RADIAL |
7 |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R474I210050A1KCAP FILM 10000PF 10% 1KVDC RAD |
4 |
|
Datasheet | Radial | 10000 pF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R82IC3100DQ60JCAP FILM 0.1UF 5% 250VDC RADIAL |
5,213 |
|
Datasheet | Radial | 0.1 µF | ±5% | 140V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.378" (9.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
ECQ-UAAF104KCAP FILM 0.1UF 10% 275VAC RADIAL |
2,651 |
|
Datasheet | Radial | 0.1 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R463F210050H7KCAP FILM 10000PF 10% 630VDC RAD |
3,618 |
|
Datasheet | Radial | 10000 pF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | High Temperature |
