Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE448RB4470JR06CAP FILM 4700PF 5% 1.6KVDC RAD |
35 |
|
Datasheet | Radial | 4700 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-F6184HLCAP FILM 0.18UF 3% 630VDC RADIAL |
80 |
|
Datasheet | Radial | 0.18 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.386" W (18.00mm x 9.80mm) | 0.618" (15.70mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-UAAF475MCAP FILM 4.7UF 20% 275VAC RADIAL |
89 |
|
Datasheet | Radial | 4.7 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.906" W (31.00mm x 23.00mm) | 1.319" (33.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FG70395JCAP FILM 3.3UF 700VDC RADIAL |
99 |
|
Datasheet | Radial | 3.9 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
PME271ED6100MR30CAP FILM 0.1UF 20% 300VAC RADIAL |
59 |
|
Datasheet | Radial | 0.1 µF | ±20% | 300V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.315" W (27.00mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|

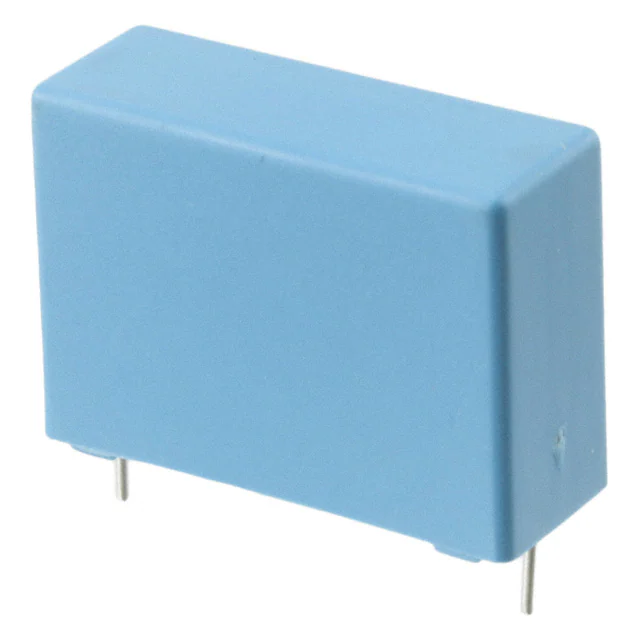

PHE820EF6470MR06L2CAP FILM 0.47UF 20% 300VAC RAD |
82 |
|
Datasheet | Radial | 0.47 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
P278EJ104M480ACAP FILM 0.1UF 20% 480VAC RADIAL |
9,472 |
|
Datasheet | Radial | 0.1 µF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.476" W (30.50mm x 12.10mm) | 0.748" (19.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X1 | - |
|
C4AF9BW4680A3FKCAP FILM 6.8UF 10% 310VAC RADIAL |
4,871 |
|
Datasheet | Radial - 4 Leads | 6.8 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
EZP-Q38855LTACAP FILM 8.5UF 5% 380VAC RADIAL |
100 |
|
Datasheet | Radial | 8.5 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 11.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
R463W510000M1KCAP FILM SAFETY/EMI SUPP RAD |
9,084 |
|
Datasheet | Radial | 10 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
EZP-Q38905LTACAP FILM 9UF 5% 380VAC RADIAL |
98 |
|
Datasheet | Radial | 9 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 11.4 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
EZP-Q38855MTACAP FILM 8.5UF 5% 380VAC RADIAL |
100 |
|
Datasheet | Radial | 8.5 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 11.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
EZP-Q38905MTACAP FILM 9UF 5% 380VAC RADIAL |
99 |
|
Datasheet | Radial | 9 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 11.4 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
EZP-Q38955MTACAP FILM 9.5UF 5% 380VAC RADIAL |
98 |
|
Datasheet | Radial | 9.5 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 11 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
ECQ-UAAF685SACAP FILM 6.8UF 20% 275VAC RADIAL |
84 |
|
Datasheet | Radial | 6.8 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.906" W (41.00mm x 23.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
EZP-Q33106LTCCAP FILM 10UF 5% 330VAC RADIAL |
99 |
|
Datasheet | Radial | 10 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 8.1 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 1.398" W (42.50mm x 35.50mm) | 1.988" (50.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
C4AF9BW5150A3OKCAP FILM 15UF 10% 310VAC RADIAL |
32 |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | 1.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
EZP-Q38106MTACAP FILM 10UF 5% 380VAC RADIAL |
100 |
|
Datasheet | Radial | 10 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 10.8 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
C4AF1BW5150A3LKCAP FILM 15UF 10% 250VAC RADIAL |
5,601 |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
C4BSPBX4120ZAJJCAP FILM 1.2UF 5% 1.2KVDC SCREW |
36 |
|
Datasheet | Rectangular Box | 1.2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
