Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C44PKGR6133RBSJCAP FILM 133UF 5% 1KVDC RADIAL |
6 |
|
Datasheet | Radial, Can | 133 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 7.835" (199.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|

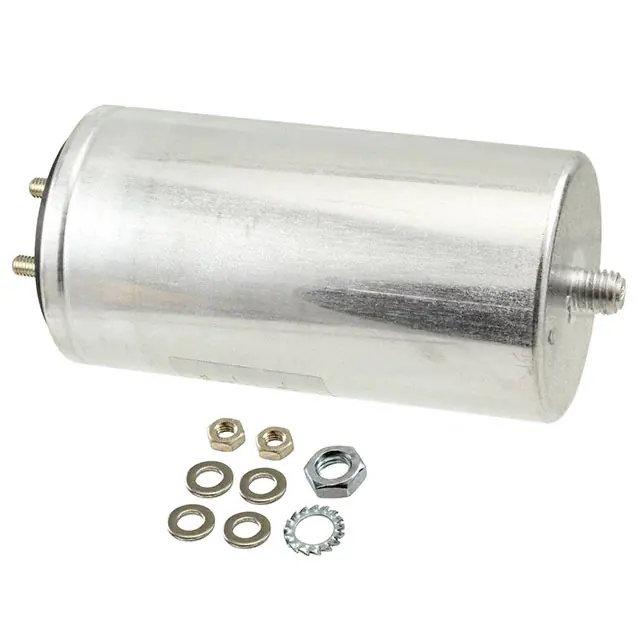

C44AFGP6150ZA0JCAP FILM 150UF 5% 400VDC RADIAL |
12 |
|
Datasheet | Radial, Can | 150 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.756" Dia (70.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
|
C44PMGR5700RASJCAP FILM 70UF 5% 1.1KVDC RADIAL |
4,542 |
|
Datasheet | Radial, Can | 70 µF | ±5% | 480V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 5.866" (149.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44HLGP6100AASJCAP FILM 100UF 5% 700VDC RADIAL |
20 |
|
Datasheet | Radial, Can | 100 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 3.937" (100.00mm) | Threaded, Male | 0.886" (22.50mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
C44USGT6230M86KCAP FILM 230UF 10% 1.5KVDC RAD |
9 |
|
Datasheet | Radial, Can | 230 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6400M85KCAP FILM 400UF 10% 1.1KVDC RAD |
24 |
|
Datasheet | Radial, Can | 400 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.827" (148.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
C44HKGR6150AASJCAP FILM 150UF 5% 1KVDC RADIAL |
15 |
|
Datasheet | Radial, Can | 150 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 7.717" (196.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
|
C44UUGT6250M84KCAP FILM 250UF 10% 1.3KVDC RAD |
4 |
|
Datasheet | Radial, Can | 250 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44USGT6145M82KCAP FILM 145UF 10% 1.5KVDC RAD |
13 |
|
Datasheet | Radial, Can | 145 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.646" (118.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UOGT6500M83KCAP FILM 500UF 10% 900VDC RADIAL |
10 |
|
Datasheet | Radial, Can | 500 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.039" (128.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6460M86KCAP FILM 460UF 10% 1.1KVDC RAD |
17 |
|
Datasheet | Radial, Can | 460 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UVGT6300M87KCAP FILM 300UF 10% 1.8KVDC RAD |
2 |
|
Datasheet | Radial, Can | 300 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 10.709" (272.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6910M31KC44U_M, FILM, METALLIZED POLYPRO |
10 |
|
Datasheet | Radial, Can | 910 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 0.85 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 5.236" (133.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
C9TS6MD6110AARXCAP FILM 110UF 440VAC RADIAL |
12 |
|
Datasheet | Radial, Can | 110 µF | -5%, +15% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 11.102" (282.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C9TS6MD5411AARXCAP FILM 41.1UF 440VAC RADIAL |
7,165 |
|
Datasheet | Radial, Can | 41.1 µF | -5%, +15% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 6.378" (162.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C44UHGT7130M86KCAP FILM 1300UF 10% 600VDC RAD |
23 |
|
Datasheet | Radial, Can | 1300 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
C44HKGR6250AASJCAP FILM 250UF 5% 1KVDC RADIAL |
6 |
|
Datasheet | Radial, Can | 250 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.606" (244.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
|
C44UVGT6275M52KCAP FILM 275UF 10% 1.8KVDC RAD |
4 |
|
Datasheet | Radial, Can | 275 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.220" (158.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
C9TS6MD6137AARXCAP FILM 137UF 440VAC RADIAL |
6 |
|
Datasheet | Radial, Can | 137 µF | -5%, +15% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 11.102" (282.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C44USGT6300M51KCAP FILM 300UF 10% 1.5KVDC RAD |
2 |
|
Datasheet | Radial, Can | 300 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
