Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R75UR31004030JCAP FILM 0.1UF 5% 2KVDC RAD |
58 |
|
Datasheet | Radial | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4AQSLU4100A11JCAP FILM 1UF 5% 1.5KVDC RADIAL |
37 |
|
Datasheet | Radial | 1 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 29.6 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.500" (12.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R463R422000M2KCAP FILM 2.2UF 10% 630VDC RAD |
75 |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
F861DU225M310ZCAP FILM 2.2UF 20% 630VDC RADIAL |
36 |
|
Datasheet | Radial | 2.2 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F861DY335M310ZLH0JCAP FILM 3.3UF 20% 310VAC RADIAL |
85 |
|
Datasheet | Radial | 3.3 µF | ±20% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PME271M633KR30CAP FILM 0.33UF 10% 275VAC RAD |
61 |
|
Datasheet | Radial | 0.33 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.476" W (30.50mm x 12.10mm) | 0.748" (19.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
R75UR315050L4JCAP FILM 0.15UF 5% 2KVDC RADIAL |
27 |
|
Datasheet | Radial | 0.15 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 7.4 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.945" W (32.00mm x 24.00mm) | 0.594" (15.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C274ACF4400LF0JCAP FILM 4UF 5% 470VAC RADIAL |
62 |
|
Datasheet | Radial, Can | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.382" (60.50mm) | Wire Leads | - | Motor Run | - | - |
|
|
C4AQJLU5100M19JCAP FILM 10UF 5% 700VDC RADIAL |
96 |
|
Datasheet | Radial | 10 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.4 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 1.220" W (32.00mm x 31.00mm) | 0.756" (19.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C274AC34300AA0JCAP FILM 3UF 5% 470VAC RADIAL |
54 |
|

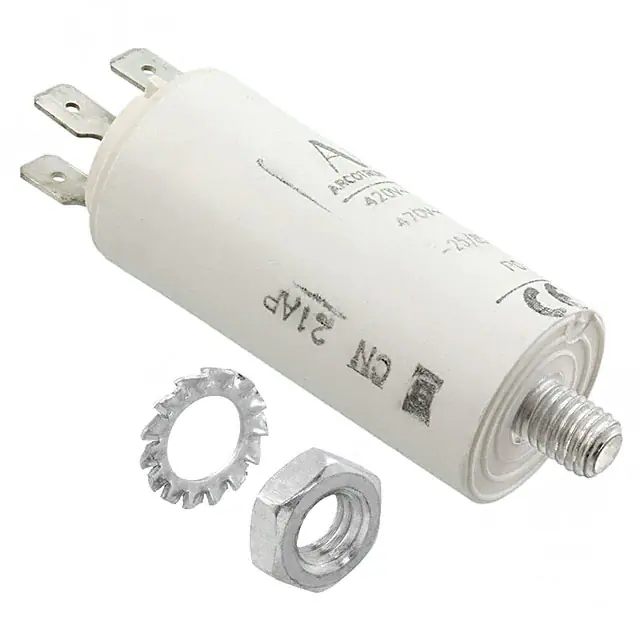

Datasheet | Radial, Can | 3 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
R76UW3100SE30KCAP FILM 0.1UF 10% 2KVDC RADIAL |
55 |
|
Datasheet | Radial | 0.1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R533R456050P0MCAP FILM 5.6UF 20% 630VDC RADIAL |
30 |
|
Datasheet | Radial | 5.6 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.630" W (32.00mm x 16.00mm) | 1.193" (30.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE844RF6680MR06L2CAP FILM 0.68UF 20% 1KVDC RAD |
26 |
|
Datasheet | Radial | 0.68 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
C274AC34400AA0JCAP FILM 4UF 5% 470VAC RADIAL |
48 |
|
Datasheet | Radial, Can | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C4CAYUB2100AA0JCAP FILM 10000PF 5% 3KVDC AXIAL |
98 |
|
Datasheet | Axial | 10000 pF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 90.3 mOhms | -40°C ~ 85°C | Through Hole | 0.472" Dia x 1.299" L (12.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
R75UW333050L3JCAP FILM 0.33UF 5% 2KVDC RADIAL |
50 |
|
Datasheet | Radial | 0.33 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.752" (19.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PHE426HF7470JR06L2CAP FILM 4.7UF 5% 250VDC RADIAL |
74 |
|
Datasheet | Radial | 4.7 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R474W422050A1KCAP FILM 2.2UF 10% 1KVDC RADIAL |
47 |
|
Datasheet | Radial | 2.2 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
C4AQCBW5200A3FJCAP FILM 20UF 5% 650VDC RADIAL |
66 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C4GAMUD4220AA1JCAP FILM 2.2UF 5% 850VDC AXIAL |
58 |
|
Datasheet | Axial | 2.2 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Through Hole | 1.161" Dia x 1.732" L (29.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
