Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
878BF35150SA0J15 470V |
244 |
|
- |
Radial, Can | 15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
9TS6MD5960AARX59.0UF 440V |
31 |
|
- |
Radial, Can | 96 µF | -5%, +15% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 11.102" (282.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
9TS5MD6123AARX6100PF 415V |
26 |
|
- |
Radial, Can | 123 µF | -5%, +15% | 415V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 11.102" (282.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
44UQGT6250A8SK250 1100V |
47 |
|
- |
Radial, Can | 250 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.748" (146.00mm) | Threaded, Female | 1.248" (31.70mm) | DC Link, DC Filtering | - | Long Life |
|
|
44PKGR6150AASJ150 UF-/450V |
36 |
|
- |
Radial, Can | 150 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
44UOGQ6600F8SK600 900V |
86 |
|
- |
Radial, Can | 600 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 2.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.591" (142.00mm) | Threaded, Male | 1.248" (31.70mm) | DC Link, DC Filtering | - | Long Life |
|
|
44UQGQ6500F8SK500 1100V |
49 |
|
- |
Radial, Can | 500 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 6.929" (176.00mm) | Threaded, Male | 1.248" (31.70mm) | DC Link, DC Filtering | - | Long Life |
|
|
20AKGR5220AASK22 UF 50 VV |
146 |
|
- |
Radial, Can | 22 µF | ±10% | 550V | 1280V (1.28kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
ECP-U1C105MA5CAP FILM 1UF 20% 16VDC 1210 |
483 |
|
Datasheet | 1210 (3225 Metric) | 1 µF | ±20% | 12V | 16V | Acrylic, Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.063" (1.60mm) | Solder Pads | - | EMI, RFI Suppression | - | Low ESR |
|
LDEEC3100JA5N00CAP FILM 0.1UF 5% 100VDC 1812 |
45 |
|
Datasheet | 1812 (4532 Metric) | 0.1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PHE840MB6470MB16R17CAP FILM 0.47UF 20% 760VDC RAD |
6,035 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R60DN5100AA30KCAP FILM 10UF 10% 63VDC RADIAL |
95 |
|
Datasheet | Radial | 10 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
C4BSWBX3470ZAFJCAP FILM 0.47UF 5% 2KVDC SCREW |
92 |
|
Datasheet | Rectangular Box | 0.47 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4ATMBW5100A3NJCAP FILM 10UF 5% 850VDC RADIAL |
91 |
|
Datasheet | Radial - 4 Leads | 10 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
R60EW61005000KCAP FILM 100UF 10% 100VDC RADIAL |
79 |
|
Datasheet | Radial | 100 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|

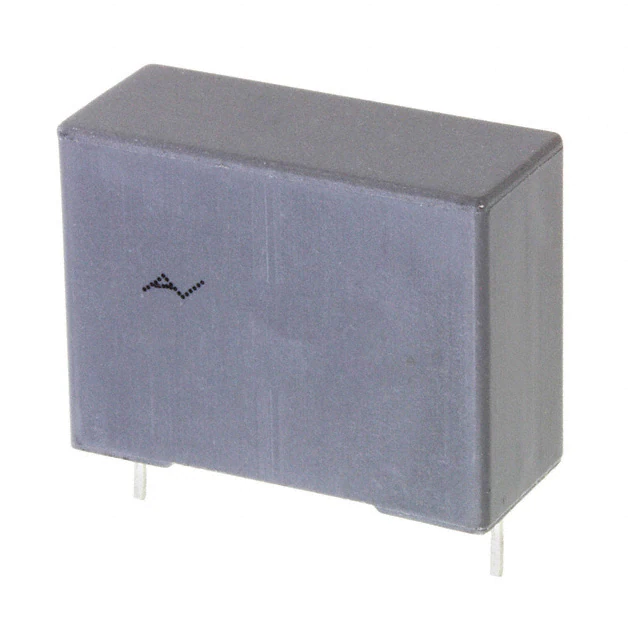

R60DW6100AA40KCAP FILM 100UF 10% 63VDC RADIAL |
3,305 |
|
Datasheet | Radial | 100 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
C44USGT6950M32KC44U_M, FILM, METALLIZED POLYPRO |
10 |
|
Datasheet | Radial, Can | 950 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 1.15 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 9.213" (234.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
|
C44UVGT7105M34KC44U_M, FILM, METALLIZED POLYPRO |
8 |
|
Datasheet | Radial, Can | 1050 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 13.740" (349.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
|
C44UUGT7180M35KC44U_M, FILM, METALLIZED POLYPRO |
7 |
|
Datasheet | Radial, Can | 1800 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 0.78 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 13.740" (349.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
ECQ-E2473KFWCAP FILM 0.047UF 10% 250VDC RAD |
733 |
|
Datasheet | Radial | 0.047 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.492" (12.50mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
