Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C276CC35350AA0JCAP FILM 35UF 5% 470VAC RADIAL |
385 |
|
Datasheet | Radial, Can | 35 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.740" (95.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C276CCF5125LG0JCAP FILM 12.5UF 5% 470VAC RADIAL |
370 |
|
Datasheet | Radial, Can | 12.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
|
C274AC25300AA0JCAP FILM 30UF 5% 470VAC RADIAL |
384 |
|
Datasheet | Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.740" (95.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
|
R60ER5330AA40KCAP FILM AUTOMOTIVE |
264 |
|
Datasheet | Radial | 33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
C4AUPBW5200M3MKFILM, RADIAL, METALLIZED POLYPRO |
162 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.819" (46.20mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C878AF35250AA0JCAP FILM MOTOR START RUN |
384 |
|
Datasheet | Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.937" (100.00mm) | Quick Connect, Disconnect | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C870CF35450AA0JCAP FILM MOTOR START RUN |
377 |
|
Datasheet | Radial, Can | 45 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 5.315" (135.00mm) | Quick Connect, Disconnect | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4BSYBX3100ZAFJCAP FILM METAL RAD POLYPROP |
245 |
|
Datasheet | Rectangular Box | 0.1 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 17.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C878BF35160AA0JCAP MOTOR RUN 16UF 5% 470VAC |
240 |
|
Datasheet | Radial, Can | 16 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4ASWBU3100A3CJCAP FILM METAL RAD POLYPROP |
162 |
|
Datasheet | Radial | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 13 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4ASNBW4200A3LJCAP FILM METAL RAD POLYPROP |
113 |
|
Datasheet | Radial | 2 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C274AC25315AA0JCAP FILM 31.5UF 5% 470VAC RADIAL |
242 |
|
Datasheet | Radial, Can | 31.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.740" (95.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
C878BF35250SA0JCAP FILM 25UF 5% 470VAC RADIAL |
306 |
|
Datasheet | Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.937" (100.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C878BF35300SA0JCAP FILM 30UF 5% 470VAC RADIAL |
355 |
|
Datasheet | Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.937" (100.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4BTFBX5250ZAMJCAP FILM METAL RAD POLYPROP |
120 |
|
Datasheet | Rectangular Box | 25 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 1.8 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C44AHFP5100ZA0JCAP FILM 10UF 5% 600VDC RADIAL |
114 |
|
Datasheet | Radial, Can | 10 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.228" (82.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
|
C930ZG35500ZA0XCAP FILM AXL |
274 |
|
Datasheet | Radial, Can | 50 µF | -5%, +15% | 320V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 3.937" (100.00mm) | Quick Connect - 0.250" (6.3mm) | - | Power Factor Correction (PFC) | - | - |
|

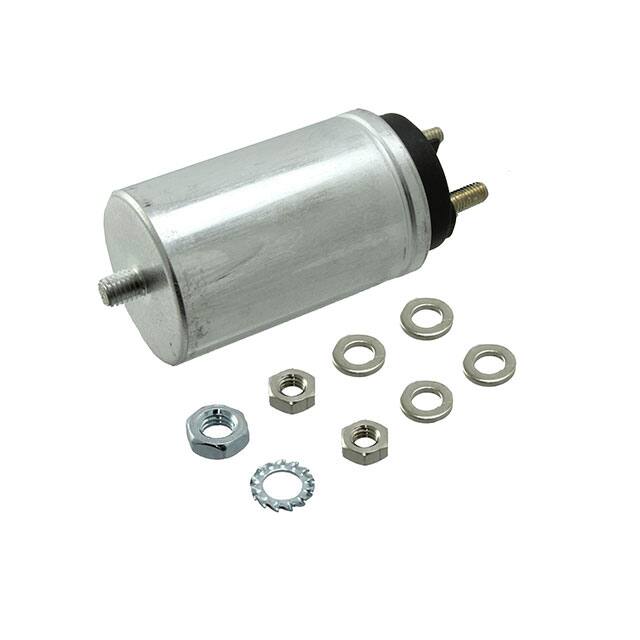

C44AMFP4600ZA0JCAP FILM 6UF 5% 850VDC RADIAL |
118 |
|
Datasheet | Radial, Can | 6 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.228" (82.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
|
C44AFGP5600ZA0JCAP POLYPROP FILM CAN |
352 |
|
Datasheet | Radial, Can | 60 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 85°C | Chassis Mount | 2.362" Dia (60.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44AHGP5750ZA0JCAP FILM 75UF 5% 600VDC RADIAL |
96 |
|
Datasheet | Radial, Can | 75 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
