Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R463N4100CKN1MCAP FILM SAFETY/EMI SUPP RAD |
640 |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | High Temperature |
|
R75GN415050H0JCAP FILM 1.5UF 5% 160VDC RADIAL |
291 |
|
Datasheet | Radial | 1.5 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R73PI2220SE00JCAP FILM METAL RAD POLYPROP |
1,000 |
|
Datasheet | Radial | 0.022 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E2335KFBCAP FILM 3.3UF 10% 250VDC RADIAL |
953 |
|
Datasheet | Radial | 3.3 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.406" W (26.00mm x 10.30mm) | 0.906" (23.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
ECW-HC3F103JQCAP FILM 10000PF 5% 3KVDC RADIAL |
950 |
|
Datasheet | Radial | 10000 pF | ±5% | - | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.012" L x 0.323" W (25.70mm x 8.20mm) | 0.909" (23.10mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
R46KN368050M2MCAP FILM SAFETY/EMI SUPP RAD |
600 |
|
Datasheet | Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R46KI3820DQP0MCAP FILM SAFETY/EMI SUPP RAD |
325 |
|
Datasheet | Radial | 0.82 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
F862BZ564K310ALR0LCAP FILM 0.56UF 10% 630VDC RAD |
287 |
|
Datasheet | Radial | 0.56 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.472" W (18.00mm x 12.00mm) | 0.787" (20.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|

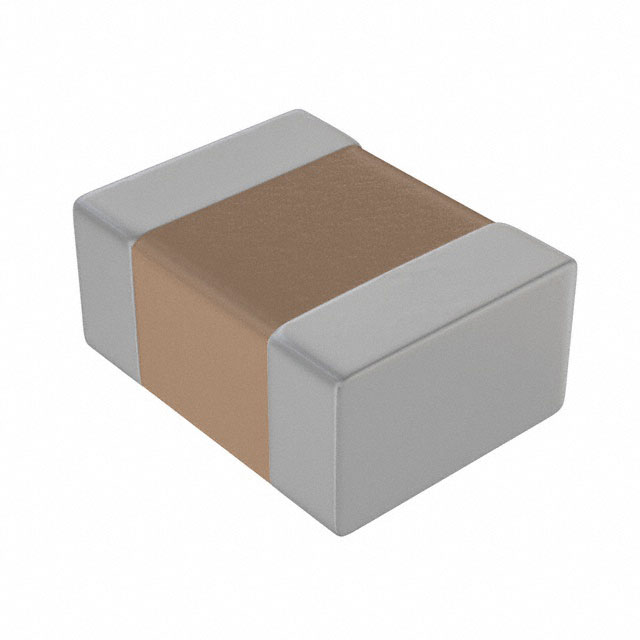

LDBCB2220GC5N0CAP FILM 0.022UF 2% 50VDC 1210 |
2,230 |
|
Datasheet | 1210 (3225 Metric) | 0.022 µF | ±2% | - | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.059" (1.50mm) | Solder Pads | - | General Purpose | - | - |
|
R46KR34705001MCAP FILM 0.47UF 20% 560VDC RAD |
1,312 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R474R339050A1KV057CAP FILM 0.39UF 10% 1KVDC RADIAL |
276 |
|
Datasheet | Radial | 0.39 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
|
R413N315050D1KCAP FILM 0.15UF 10% 1.2KVDC RAD |
215 |
|
Datasheet | Radial | 0.15 µF | ±10% | 300V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression; High Pulse, DV/DT | AEC-Q200, X1, Y2 | - |
|
|
R75MR3680AA30JCAP FILM AUTO POLYPROP RAD |
816 |
|
Datasheet | Radial | 0.68 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 9.4 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R73UI1220SE00JCAP FILM METAL RAD POLYPROP |
562 |
|
Datasheet | Radial | 2200 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76UN2220SE40JCAP FILM AUTO POLYPROP RAD |
240 |
|
Datasheet | Radial | 0.022 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 29 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R46KI347000P3MCAP FILM SAFETY/EMI SUPP RAD |
898 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R46KN4100DQP1MCAP FILM SAFETY/EMI SUPP RAD |
559 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F863DS105K310ZV047CAP FILM 1UF 10% 630VDC RADIAL |
241 |
|
Datasheet | Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
F861BR684M310ZCAP FILM POLYPROP RAD X2 |
2,534 |
|
Datasheet | Radial | 0.68 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R75PN3330AA30KCAP FILM 0.33UF 10% 630VDC RAD |
356 |
|
Datasheet | Radial | 0.33 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
