Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AFABW4750F3MKFILM CAP AC, 7.5 UF, 10%,500 VAC |
102 |
|
Datasheet | Radial - 4 Leads | 7.5 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 10.7 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
EZP-Q33286MTACAP FILM 28UF 5% 330VAC RADIAL |
396 |
|
Datasheet | Radial - 4 Leads | 28 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 6.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
EZP-V60856MTSCAP FILM 85UF 10% 600V RADIAL |
138 |
|
Datasheet | Radial - 4 Leads | 85 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.047" (52.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
EZP-Q38116LTACAP FILM 11UF 5% 380VAC RADIAL |
170 |
|
Datasheet | Radial | 11 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 12.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
R75MW515050H3JCAP FILM 15UF 5% 400VDC RADIAL |
168 |
|
Datasheet | Radial | 15 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60DR5220AA30JCAP FILM 22UF 5% 63VDC RADIAL |
283 |
|
Datasheet | Radial | 22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
EZP-E52296MTBCAP FILM 29UF 15% 525VDC RADIAL |
439 |
|
Datasheet | Radial - 4 Leads | 29 µF | ±15% | - | 525V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.457" L x 1.909" W (37.00mm x 48.50mm) | 0.965" (24.50mm) | PC Pins | 0.799" (20.30mm) | DC Link, DC Filtering | - | Low ESR |
|
C4AQQBW5180M36JCAP FILM 18UF 5% 1.1KVDC RADIAL |
163 |
|
Datasheet | Radial - 4 Leads | 18 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.819" (46.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
EZP-E45666MTBCAP FILM 66UF 15% 450VDC RADIAL |
537 |
|
Datasheet | Radial - 4 Leads | 66 µF | ±15% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.279" L x 3.543" W (32.50mm x 90.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
EZP-V80456MTBCAP FILM 45UF 10% 800V RADIAL |
125 |
|
Datasheet | Radial - 4 Leads | 45 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.283" (58.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|

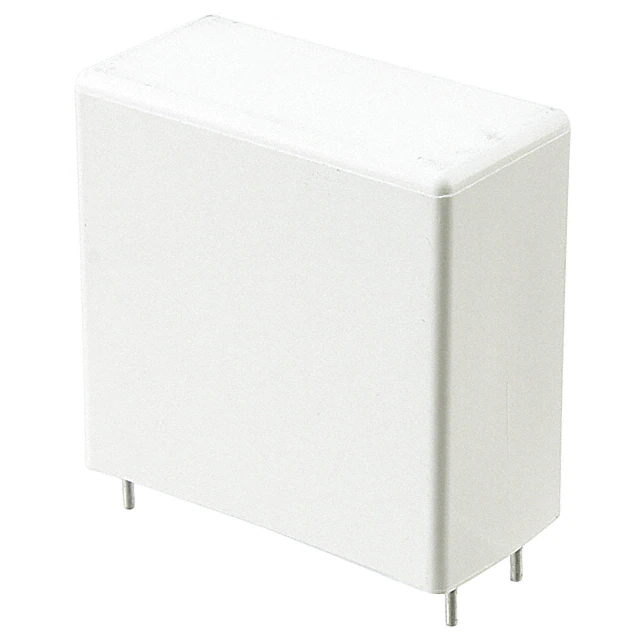

C4AEOBW5120A3FJCAP FILM 12UF 5% 900VDC RADIAL |
174 |
|
Datasheet | Radial | 12 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 6.4 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
EZP-Q38156LTBCAP FILM 15UF 5% 380VAC RADIAL |
152 |
|
Datasheet | Radial | 15 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 9.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
EZP-V80206MTBCAP FILM 20UF 10% 800V RADIAL |
146 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.024" W (41.00mm x 26.00mm) | 1.634" (41.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
SMC12.7474J100B31TR24CAP FILM 0.47UF 5% 100VDC SMD |
2,500 |
|
Datasheet | Nonstandard | 0.47 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
EZP-E1B206MTACAP FILM 20UF 10% 1.1KVDC RADIAL |
966 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.039" (51.80mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
C4AQUBW5250A3NJCAP FILM 25UF 5% 1.3KVDC RADIAL |
102 |
|
Datasheet | Radial - 4 Leads | 25 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EZP-Q33306MTBCAP FILM 30UF 5% 330VAC RADIAL |
194 |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.461" (62.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
EZP-Q38166MTACAP FILM 16UF 5% 380VAC RADIAL |
152 |
|
Datasheet | Radial - 4 Leads | 16 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 8.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
C4ASMBW3680A3GJCAP FILM 0.68UF 5% 850VDC RADIAL |
114 |
|
Datasheet | Radial - 4 Leads | 0.68 µF | ±5% | 500V | 850V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.484" (37.70mm) | PC Pins | 1.083" (27.50mm) | Snubber | - | - |
|
|
EZP-Q38336MTACAP FILM 33UF 5% 380VAC RADIAL |
372 |
|
Datasheet | Radial - 4 Leads | 33 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.461" (62.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
