Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C44PKGR6133AASJCAP POLYPROP FILM CAN |
9,595 |
|
Datasheet | Radial, Can | 133 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | 3 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44UQGT6200A8SKCAP POLYPROP FILM CAN |
5,257 |
|
Datasheet | Radial, Can | 200 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.803" (122.00mm) | Threaded, Female | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C44UOGT6275A7SKCAP POLYPROP FILM CAN |
7,943 |
|
Datasheet | Radial, Can | 275 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 5.591" (142.00mm) | Threaded, Female | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C44UOET6220A7SKCAP POLYPROP FILM CAN |
9,408 |
|
Datasheet | Radial, Can | 220 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 90°C | Chassis Mount | 2.992" Dia (76.00mm) | 4.803" (122.00mm) | Threaded, Female | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C44UOGQ6270F7SKCAP POLYPROP FILM CAN |
2,148 |
|
Datasheet | Radial, Can | 270 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.8 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 3.819" (97.00mm) | Threaded, Male | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C9TS5AD5308AA0XCAP FILM SCRW TERM |
7,329 |
|
Datasheet | Radial, Can | 30.5 µF | -5%, +10% | 415V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 8.740" (222.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C9TSAAD5290AA0XCAP FILM SCRW TERM |
4,201 |
|
Datasheet | Radial, Can | 29 µF | -5%, +10% | 525V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 8.740" (222.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C9TS5AD5462AA0XCAP FILM SCRW TERM |
5,018 |
|
Datasheet | Radial, Can | 46.2 µF | -5%, +10% | 415V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 8.740" (222.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C9TS6AD5393AA0XCAP FILM SCRW TERM |
2,486 |
|
Datasheet | Radial, Can | 39.3 µF | -5%, +10% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 8.740" (222.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C9TSAAD5192AA0XCAP FILM SCRW TERM |
3,379 |
|
Datasheet | Radial, Can | 19.2 µF | -5%, +10% | 525V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 8.740" (222.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C44UJET6175A7TKCAP POLYPROP FILM CAN |
8,929 |
|
Datasheet | Radial, Can | 175 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 90°C | Chassis Mount | 2.992" Dia (76.00mm) | 2.835" (72.00mm) | Threaded, Female | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C9TS6AD5262AA0XCAP FILM SCRW TERM |
7,997 |
|
Datasheet | Radial, Can | 26.2 µF | -5%, +10% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 8.740" (222.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C44UUGQ6165F8SKCAP POLYPROP FILM CAN |
2,425 |
|
Datasheet | Radial, Can | 165 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 3.819" (97.00mm) | Threaded, Male | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C44UOGT6300A8SKCAP POLYPROP FILM CAN |
7,779 |
|
Datasheet | Radial, Can | 300 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.803" (122.00mm) | Threaded, Female | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C44UJGT6350A7SKCAP POLYPROP FILM CAN |
8,939 |
|
Datasheet | Radial, Can | 350 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 4.803" (122.00mm) | Threaded, Female | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C44UOEQ6270F7SKCAP POLYPROP FILM CAN |
2,382 |
|
Datasheet | Radial, Can | 270 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 90°C | Chassis Mount | 2.992" Dia (76.00mm) | 3.819" (97.00mm) | Threaded, Male | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
|
C44AFGR6200ZE0JCAP FILM 200UF 5% 400VDC RADIAL |
5,832 |
|
Datasheet | Radial, Can | 200 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis, Stud Mount | - | - | Threaded, Male | - | General Purpose | - | - |
|
|
C44UQGQ6240F8SKCAP POLYPROP FILM CAN |
2,897 |
|
Datasheet | Radial, Can | 240 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.7 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 3.819" (97.00mm) | Threaded, Male | 1.248" (31.70mm) | General Purpose | - | Long Life |
|

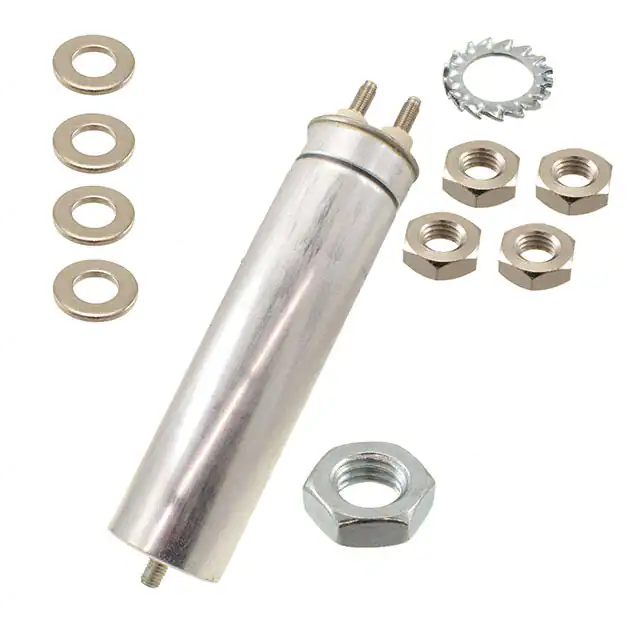

C44PPGR6150RASKCAP FILM 150UF 10% 1.28KVDC RAD |
8,566 |
|
Datasheet | Radial, Can | 150 µF | ±10% | 550V | 1280V (1.28kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 3.740" Dia (95.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44UOGQ6370F8SKCAP POLYPROP FILM CAN |
6,800 |
|
Datasheet | Radial, Can | 370 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 3.819" (97.00mm) | Threaded, Male | 1.248" (31.70mm) | General Purpose | - | Long Life |
