Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4BSWBX3220ZEFJCAP FILM METAL RAD POLYPROP |
8,506 |
|
Datasheet | Rectangular Box | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 10.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | Screw Terminals | 1.299" (33.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|

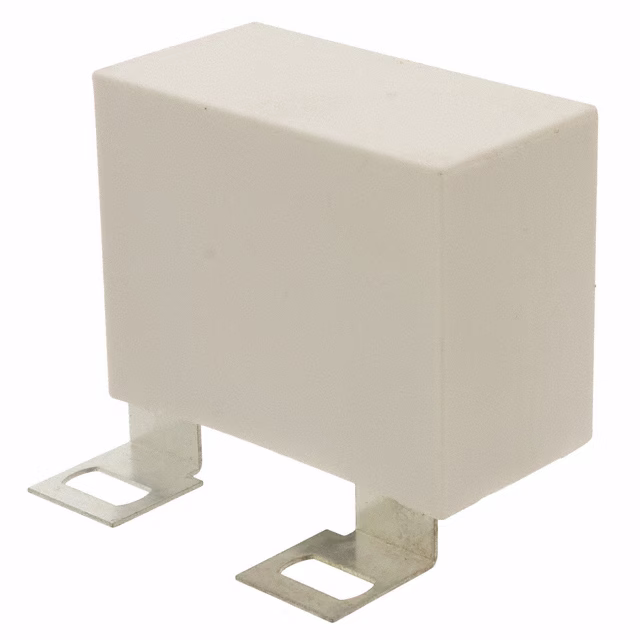

C4BSPBX4200ZBMJCAP FILM 2UF 5% 1.2KVDC SCREW |
9,135 |
|
Datasheet | Rectangular Box | 2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.457" (37.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4BTFBX4680ZAFJCAP FILM METAL RAD POLYPROP |
7,675 |
|
Datasheet | Rectangular Box | 6.8 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C870DF35350AA0JCAP FILM 35UF 5% 470VAC RADIAL |
7,040 |
|
Datasheet | Radial, Can | 35 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
|
C4BTHBX5150ZAMJCAP FILM METAL RAD POLYPROP |
8,486 |
|
Datasheet | Rectangular Box | 15 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C870CF35350AA0JCAP FILM MOTOR START RUN |
4,412 |
|
Datasheet | Radial, Can | 35 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.937" (100.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4BSMBX4150ZBJJCAP FILM METAL RAD POLYPROP |
8,386 |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 550V | 850V | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.465" (37.20mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C4ASMBW4300A3MJCAP FILM METAL RAD POLYPROP |
4,622 |
|
Datasheet | Radial - 4 Leads | 3 µF | ±5% | 500V | 850V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | High Pulse, DV/DT; Snubber | - | - |
|
|
C4ATDBW5100A30KCAP FILM METAL RAD POLYPROP |
6,488 |
|
Datasheet | Radial - 4 Leads | 10 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
R46KW447052M1MCAP FILM SAFETY/EMI SUPP RAD |
2,098 |
|
Datasheet | Radial | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
C4BSPBX4100ZHJJCAP FILM METAL RAD POLYPROP |
7,017 |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.465" (37.20mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C4GSHUC4300AA1JCAP FILM METAL AXL POLYPROP |
2,680 |
|
Datasheet | Axial | 3 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 4.8 mOhms | -40°C ~ 85°C | Through Hole | 0.886" Dia x 1.732" L (22.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
C4CSPUD4100AA1JCAP FILM METAL AXL POLYPROP |
4,356 |
|
Datasheet | Axial | 1 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Through Hole | 0.984" Dia x 1.732" L (25.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C4CSMUD4100AA1JCAP FILM METAL AXL POLYPROP |
3,739 |
|
Datasheet | Axial | 1 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 0.984" Dia x 1.732" L (25.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C4CSYUD3100AA1JCAP FILM METAL AXL POLYPROP |
3,630 |
|
Datasheet | Axial | 0.1 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 12.8 mOhms | -40°C ~ 85°C | Through Hole | 1.063" Dia x 1.732" L (27.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C4GSMUD4250AA1JCAP FILM METAL AXL POLYPROP |
4,931 |
|
Datasheet | Axial | 2.5 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Through Hole | 1.240" Dia x 1.732" L (31.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
C4GSDUD5400AA3KCAP FILM METAL AXL POLYPROP |
3,768 |
|
Datasheet | Axial | 40 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Through Hole | 1.319" Dia x 2.283" L (33.50mm x 58.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
C4GSHUD4400AA1JCAP FILM METAL AXL POLYPROP |
2,048 |
|
Datasheet | Axial | 4 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 1.004" Dia x 1.732" L (25.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
C4GSHUD5100AA3JCAP FILM METAL AXL POLYPROP |
4,933 |
|
Datasheet | Axial | 10 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 1.358" Dia x 2.283" L (34.50mm x 58.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
C4BTJBX4500ZBJJCAP FILM METAL RAD POLYPROP |
3,310 |
|
Datasheet | Rectangular Box | 5 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
