Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C870CF35250AA1JCAP FILM MOTOR START RUN |
3,910 |
|
Datasheet | Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4GAMUD4300AA3JCAP FILM METAL AXL POLYPROP |
9,970 |
|
Datasheet | Axial | 3 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Through Hole | 1.102" Dia x 2.283" L (28.00mm x 58.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
R73QW41005030JCAP FILM METAL RAD POLYPROP |
6,371 |
|
Datasheet | Radial | 1 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F461RP186J250ZCAP FILM POLYPROP RAD |
9,864 |
|
Datasheet | Radial | 18 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
C870CF25250AA1JCAP FILM MOTOR START RUN |
9,817 |
|
Datasheet | Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.937" (100.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|

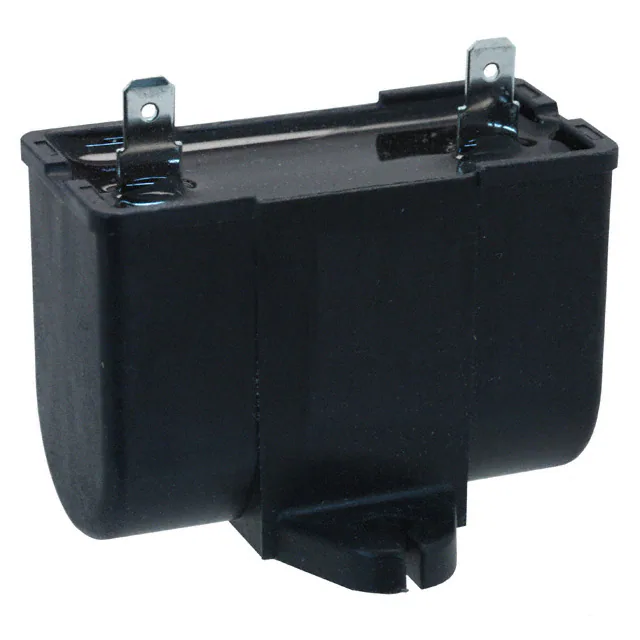

JS251106-BACAP FILM 10UF 10% 250VAC CHAS MT |
8,666 |
|
Datasheet | Rectangular Box | 10 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.957" L x 0.945" W (49.70mm x 24.00mm) | 1.378" (35.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
|
F461RD226J160ZCAP FILM POLYPROP RAD |
4,289 |
|
Datasheet | Radial | 22 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
C4CAPUD4150AA3JCAP FILM METAL AXL POLYPROP |
3,790 |
|
Datasheet | Axial | 1.5 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" Dia x 2.283" L (32.00mm x 58.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
F461RH126R160Z12.0UF 160V |
6,366 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F461RO685K630ZCAP FILM POLYPROP RAD |
5,190 |
|
Datasheet | Radial | 6.8 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
F461RO126K400ZCAP FILM POLYPROP RAD |
6,113 |
|
Datasheet | Radial | 12 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
C4ATFBW4500A3EJCAP FILM METAL RAD POLYPROP |
8,021 |
|
Datasheet | Radial - 4 Leads | 5 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C878BF35230SA0JCAP FILM MOTOR START RUN |
5,177 |
|
Datasheet | Radial, Can | 23 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
R76QW4220SE30JCAP FILM AUTO POLYPROP RAD |
2,040 |
|
Datasheet | Radial | 2.2 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 8.7 mOhms | -55°C ~ 110°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
C878AF35180AA0JCAP FILM MOTOR START RUN |
6,671 |
|
Datasheet | Radial, Can | 18 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C870CF35140AA0JCAP FILM MOTOR START RUN |
5,894 |
|
Datasheet | Radial, Can | 14 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4ASWBW3150A3EJCAP FILM METAL RAD POLYPROP |
5,766 |
|
Datasheet | Radial | 0.15 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 8.8 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4ATDBU4500A30JCAP FILM METAL RAD POLYPROP |
2,336 |
|
Datasheet | Radial | 5 µF | ±5% | 160V | 250V | - | 5.8 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C4GAMUD4330AA3JCAP FILM METAL AXL POLYPROP |
2,666 |
|
Datasheet | Axial | 3.3 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Through Hole | 1.161" Dia x 2.283" L (29.50mm x 58.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
C4GADUD5250AA1JCAP FILM METAL AXL POLYPROP |
6,415 |
|
Datasheet | Axial | 25 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 1.220" Dia x 1.732" L (31.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
