Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F871RV684M330ZCAP FILM POLYPROP RAD X1 |
4,111 |
|
Datasheet | Radial | 0.68 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F462RP684K1K6ZCAP FILM POLYPROP RAD |
5,415 |
|
Datasheet | Radial | 0.68 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
C878AF24750AA2JCAP FILM MOTOR START RUN |
9,818 |
|
Datasheet | Radial, Can | 7.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
|
C878AF24750AA0JCAP FILM MOTOR START RUN |
3,484 |
|
Datasheet | Radial, Can | 7.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
C4CAPUC3220AA1JCAP FILM 0.22UF 5% 500VAC AXIAL |
2,847 |
|
Datasheet | Axial | 0.22 µF | ±5% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
F871RV125M330ZCAP FILM POLYPROP RAD X1 |
6,558 |
|
Datasheet | Radial | 1.2 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F462RP125K1L2ZCAP FILM POLYPROP RAD |
6,649 |
|
Datasheet | Radial | 1.2 µF | ±10% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
C4ASNBU3150A3AJCAP FILM METAL RAD POLYPROP |
9,317 |
|
Datasheet | Radial | 0.15 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 12.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.394" W (32.00mm x 10.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT; Snubber | - | - |
|
|
C4CAMUD4150AA1JCAP FILM METAL AXL POLYPROP |
8,176 |
|
Datasheet | Axial | 1.5 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 1.201" Dia x 1.732" L (30.50mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
R75UW36805030KCAP FILM AUTO POLYPROP RAD |
5,278 |
|
Datasheet | Radial | 0.68 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 4.7 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R75RW4100AA30JCAP FILM AUTO POLYPROP RAD |
6,569 |
|
Datasheet | Radial | 1 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R75RW41005030JCAP FILM AUTO POLYPROP RAD |
4,065 |
|
Datasheet | Radial | 1 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F871RV155M330ZCAP FILM POLYPROP RAD X1 |
7,798 |
|
Datasheet | Radial | 1.5 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F462FY684J1K6ZCAP FILM POLYPROP RAD |
8,812 |
|
Datasheet | Radial | 0.68 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F461FY156J160ZCAP FILM POLYPROP RAD |
3,454 |
|
Datasheet | Radial | 15 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F872RV684M480ZCAP FILM POLYPROP RAD X1 |
4,984 |
|
Datasheet | Radial | 0.68 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
C4GAJUD4330AA1JCAP FILM METAL AXL POLYPROP |
6,839 |
|
Datasheet | Axial | 3.3 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Through Hole | 1.181" Dia x 1.732" L (30.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
F462FY125J1L2ZCAP FILM POLYPROP RAD |
8,471 |
|
Datasheet | Radial | 1.2 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|

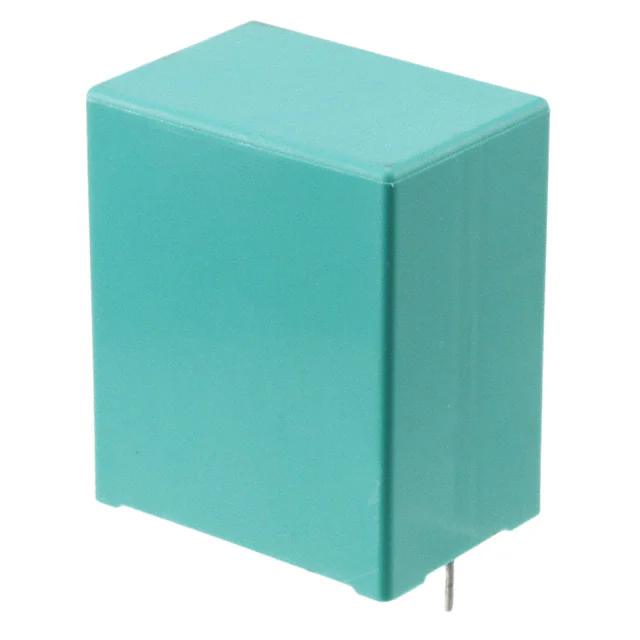

C4AEJBU5125A12JCAP FILM 12.5UF 5% 700VDC RADIAL |
4,981 |
|
Datasheet | Radial | 12.5 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 85°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C870CF25100AA0JCAP FILM MOTOR START RUN |
3,916 |
|
Datasheet | Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
