Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQOLW4380P34JCAP FILM 3.8UF 5% 900VDC RADIAL |
2,167 |
|
Datasheet | Radial - 4 Leads | 3.8 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 21.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
F462FN684R1K0ZCAP |
3,730 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C274ACA4150AL0JCAP FILM 1.5UF 5% 470VAC RADIAL |
3,318 |
|
Datasheet | Radial, Can | 1.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
|
|
A50IK3470AA60JCAP FILM AXL |
2,009 |
|
Datasheet | Axial | 0.47 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
F462FY105K1K0ZCAP FILM POLYPROP RAD |
5,990 |
|
Datasheet | Radial | 1 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F871FH254M330ZCAP FILM POLYPROP RAD X1 |
5,998 |
|
Datasheet | Radial | 0.25 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 0.492" (12.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
C870CF24800AA1JCAP FILM MOTOR START RUN |
2,810 |
|
Datasheet | Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.441" (62.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|

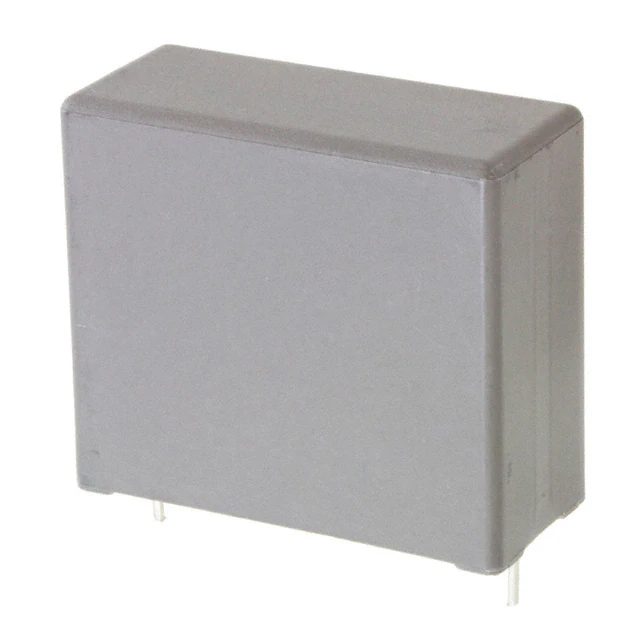

R71QW4220AA20JCAP FILM 2.2UF 5% 1KVDC RADIAL |
5,382 |
|
Datasheet | Radial | 2.2 µF | ±5% | 275V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
F871FY225J330Z2.20UF 330V |
5,772 |
|
- |
Radial | 2.2 µF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
SMC5.7223K100J33TR12CAP FILM 0.022UF 10% 100VDC 2220 |
2,653 |
|
- |
2220 (5750 Metric) | 0.022 µF | ±10% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.126" (3.20mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
|
F461DY825R160Z8.20UF 160V |
7,572 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A50MT4220AA60JCAP FILM AXL |
8,532 |
|
Datasheet | Axial | 2.2 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.591" Dia x 1.299" L (15.00mm x 33.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
A50IK34702660JCAP FILM AXL |
6,123 |
|
Datasheet | Axial | 0.47 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
A50IK34702660KCAP FILM AXL |
6,785 |
|
Datasheet | Axial | 0.47 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
A50IK34702660MCAP FILM AXL |
5,557 |
|
Datasheet | Axial | 0.47 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
C878AF24400AA2JCAP FILM MOTOR START RUN |
7,418 |
|
Datasheet | Radial, Can | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
|
F461RF335R400Z3.30UF 400V |
6,514 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F873FS334K760ZCAP FILM POLYPROP RAD X1 |
9,323 |
|
Datasheet | Radial | 0.33 µF | ±10% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F462FI394R1L2ZCAP |
7,394 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F462RB184R1K6ZCAP |
6,591 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
