Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F6105JLBCAP FILM 1UF 5% 630VDC RADIAL |
5,552 |
|
Datasheet | Radial | 1 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 1.075" (27.30mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F6514HLBCAP FILM 0.51UF 3% 630VDC RADIAL |
2,978 |
|
Datasheet | Radial | 0.51 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.437" W (28.00mm x 11.10mm) | 0.878" (22.30mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
R76TR31505040JCAP FILM AUTO POLYPROP RAD |
2,596 |
|
Datasheet | Radial | 0.15 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 21 mOhms | -55°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F461FB824K400ZCAP FILM POLYPROP RAD |
3,002 |
|
Datasheet | Radial | 0.82 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.669" (17.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
ECW-H12563JVBCAP FILM 0.056UF 5% 1.25KVDC RAD |
3,357 |
|
Datasheet | Radial | 0.056 µF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.453" W (28.00mm x 11.50mm) | 0.984" (25.00mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
ECW-H12623JVBCAP FILM 0.062UF 5% 1.25KVDC RAD |
5,778 |
|
Datasheet | Radial | 0.062 µF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.472" W (28.00mm x 12.00mm) | 1.024" (26.00mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
F871FB334J330Z.330UF 330V |
4,476 |
|
- |
Radial | 0.33 µF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.669" (17.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
R76QR3100CK40KCAP FILM AUTO POLYPROP RAD |
8,663 |
|
Datasheet | Radial | 0.1 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 24 mOhms | -55°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F161WP683K100VCAP FILM SMD PET |
8,460 |
|
Datasheet | Nonstandard SMD | 0.068 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
R73PW3330SE00KCAP FILM METAL RAD POLYPROP |
4,677 |
|
Datasheet | Radial | 0.33 µF | ±10% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.949" (24.10mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F462DY224J1K6LCAP FILM POLYPROP RAD |
9,429 |
|
Datasheet | Radial | 0.22 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F161WP393J400VCAP FILM SMD PET |
8,499 |
|
Datasheet | Nonstandard SMD | 0.039 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
LDEPH3180MA5N00CAP FILM SMD PEN |
4,808 |
|
Datasheet | 6054 (153137 Metric) | 0.18 µF | ±20% | 200V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.610" L x 0.539" W (15.50mm x 13.70mm) | 0.165" (4.20mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
R463R4330JEM2MCAP FILM SAFETY/EMI SUPP RAD |
5,858 |
|
Datasheet | Radial | 3.3 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R463R4330JBM2MCAP FILM SAFETY/EMI SUPP RAD |
4,868 |
|
Datasheet | Radial | 3.3 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R60GN4330DQ30KCAP FILM AUTOMOTIVE |
3,833 |
|
Datasheet | Radial | 3.3 µF | ±10% | 90V | 160V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
R73UW2330SE00JCAP FILM METAL RAD POLYPROP |
3,489 |
|
Datasheet | Radial | 0.033 µF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.949" (24.10mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F461DY395K250LCAP FILM POLYPROP RAD |
3,944 |
|
Datasheet | Radial | 3.9 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|

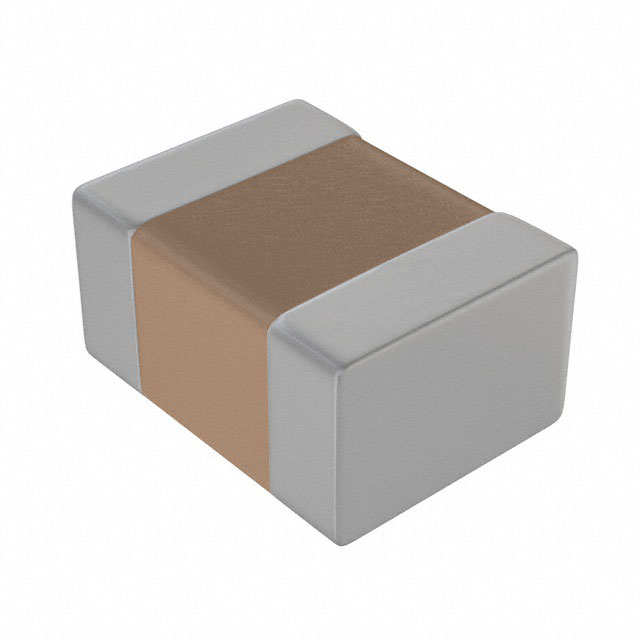

LDBAB2560JC5N0CAP FILM 0.056UF 5% 16VDC 1210 |
5,293 |
|
Datasheet | 1210 (3225 Metric) | 0.056 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
|
F461DY225K400LCAP FILM POLYPROP RAD |
9,853 |
|
Datasheet | Radial | 2.2 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
