Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMR209MC6220M033R30FILTER RC |
4,436 |
|
Datasheet | Radial | 0.22 µF | ±20% | 250V | 630V | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | Long Life |
|
|
R75MR42205040JCAP FILM AUTO POLYPROP RAD |
6,644 |
|
Datasheet | Radial | 2.2 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R413R3220CK00MCAP FILM 0.22UF 20% 1KVDC RADIAL |
2,097 |
|
Datasheet | Radial | 0.22 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
|
R76UR28205040JCAP FILM AUTO POLYPROP RAD |
4,606 |
|
Datasheet | Radial | 0.082 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 29 mOhms | -55°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

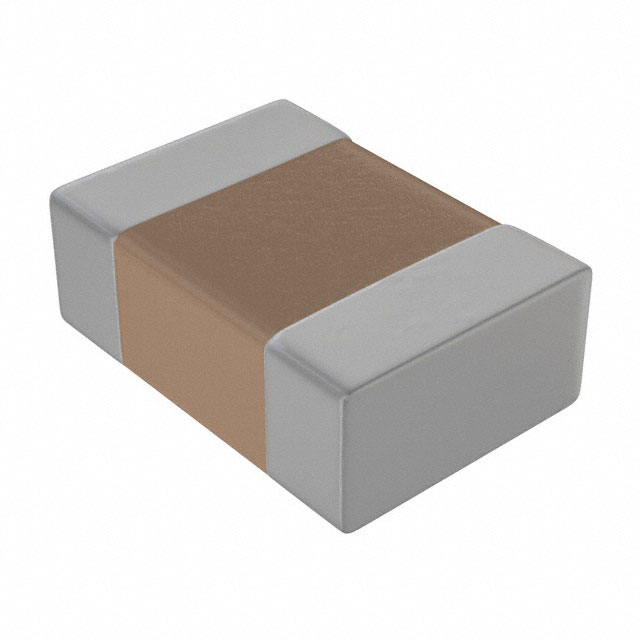

LDBCC2560GC5N0CAP FILM 0.056UF 2% 50VDC 1812 |
6,443 |
|
Datasheet | 1812 (4532 Metric) | 0.056 µF | ±2% | - | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
LDECA1680JA0N00CAP FILM 6800PF 5% 50VDC 1206 |
6,484 |
|
Datasheet | 1206 (3216 Metric) | 6800 pF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
ECW-F4394RJBCAP FILM 0.39UF 5% 400VDC RADIAL |
3,089 |
|
- |
Radial | 0.39 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 105°C | Through Hole | 0.906" L x 0.531" W (23.00mm x 13.50mm) | 1.004" (25.50mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
LDEMG3330MA5N00CAP FILM SMD PEN |
9,664 |
|
Datasheet | 5040 (127102 Metric) | 0.33 µF | ±20% | 160V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.512" L x 0.409" W (13.00mm x 10.40mm) | 0.220" (5.60mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECQ-UAAF225TACAP FILM 2.2UF 10% 275VAC RAD |
9,543 |
|
Datasheet | Radial | 2.2 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.571" W (31.00mm x 14.50mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
MMK22.5475K63D13L4TRAYCAP FILM RAD |
4,876 |
|
- |
Radial | 4.7 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
A50DF33302660MCAP FILM AXL |
5,450 |
|
Datasheet | Axial | 0.33 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
A50DF33302660KCAP FILM AXL |
7,544 |
|
Datasheet | Axial | 0.33 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
ECW-F4624JLBCAP FILM 0.62UF 5% 400VDC RADIAL |
3,369 |
|
Datasheet | Radial | 0.62 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.445" W (20.50mm x 11.30mm) | 0.902" (22.90mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F4334HLBCAP FILM 0.33UF 3% 400VDC RADIAL |
8,213 |
|
Datasheet | Radial | 0.33 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.378" W (18.00mm x 9.60mm) | 0.760" (19.30mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
ECW-F6514JLBCAP FILM 0.51UF 5% 630VDC RADIAL |
4,961 |
|
Datasheet | Radial | 0.51 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.437" W (28.00mm x 11.10mm) | 0.878" (22.30mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
ECW-H16203RJVCAP FILM 0.02UF 5% 1.6KVDC RAD |
7,150 |
|
Datasheet | Radial | 0.02 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.433" W (23.00mm x 11.00mm) | 0.984" (25.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
F872DU254M480RCAP FILM POLYPROP RAD X1 |
5,041 |
|
Datasheet | Radial | 0.25 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
PME271Y568MR30CAP FILM |
2,336 |
|
Datasheet | Radial | 0.068 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | Y2 | - |
|
|
R749R2470AA00JCAP FILM METAL RAD POLYPROP |
3,597 |
|
Datasheet | Radial | 0.047 µF | ±5% | 900V | 2200V (2.2kV) | Polypropylene (PP), Metallized | 20 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
PHE426MD6470JR06L2CAP FILM RAD |
2,098 |
|
- |
Radial | 0.47 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
