Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FE2J474QDCAP FILM 0.47UF 10% 630VDC RAD |
247 |
|
Datasheet | Radial | 0.47 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E6104JFBCAP FILM 0.1UF 5% 630VDC RADIAL |
987 |
|
Datasheet | Radial | 0.1 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.248" W (18.50mm x 6.30mm) | 0.748" (19.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
ECQ-E2125KBCAP FILM 1.2UF 10% 250VDC RADIAL |
940 |
|
Datasheet | Radial | 1.2 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602" L x 0.299" W (15.30mm x 7.60mm) | 0.614" (15.60mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
|
PHE450MA5270JR05CAP FILM 0.027UF 5% 630VDC RAD |
800 |
|
Datasheet | Radial | 0.027 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-FD2J184JQCAP FILM 0.18UF 5% 630VDC RADIAL |
793 |
|
Datasheet | Radial | 0.18 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496" L x 0.291" W (12.60mm x 7.40mm) | 0.618" (15.70mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R523I3330DQP0KCAP FILM 0.33UF 10% 630VDC RAD |
480 |
|
Datasheet | Radial | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R75TI21004030JCAP FILM 10000PF 5% 1.6KVDC RAD |
447 |
|
Datasheet | Radial | 10000 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76TF16805050JFILM, RADIAL, PULSE, DOUBLE META |
3,354 |
|
Datasheet | Radial | 6800 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 93.6 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

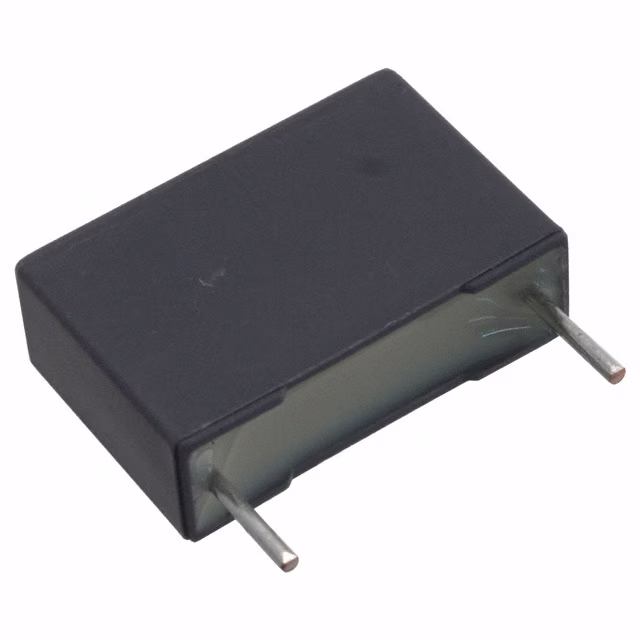

R60II3470AA30KCAP FILM 0.47UF 10% 250VDC RAD |
1,748 |
|
Datasheet | Radial | 0.47 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
ECW-H12392JVCAP FILM 3900PF 5% 1.25KVDC RAD |
799 |
|
Datasheet | Radial | 3900 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
F862BK154K310ZCAP FILM 0.15UF 10% 630VDC RAD |
4,220 |
|
Datasheet | Radial | 0.15 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE450MB5120JR06CAP FILM 0.012UF 5% 630VDC RAD |
1,296 |
|
Datasheet | Radial | 0.012 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-E2824KB3CAP FILM 0.82UF 10% 250VDC RAD |
999 |
|
Datasheet | Radial | 0.82 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602" L x 0.248" W (15.30mm x 6.30mm) | 0.720" (18.30mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
ECQ-E4564JFCAP FILM 0.56UF 5% 400VDC RADIAL |
744 |
|
Datasheet | Radial | 0.56 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECW-FE2W155PLCAP FILM 1.5UF 5% 450VDC RADIAL |
582 |
|
Datasheet | Radial | 1.5 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.354" W (31.00mm x 9.00mm) | 0.768" (19.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F862BS334K310ALR0LCAP FILM 0.33UF 10% 630VDC RAD |
453 |
|
Datasheet | Radial | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECH-U1123JC9CAP FILM 0.012UF 5% 100VDC 1913 |
5,770 |
|
Datasheet | 1913 (4833 Metric) | 0.012 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1123GC9CAP FILM 0.012UF 2% 100VDC 1913 |
754 |
|
Datasheet | 1913 (4833 Metric) | 0.012 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
|
R523I3330DQP1KCAP FILM 0.33UF 10% 630VDC RAD |
1,195 |
|
Datasheet | Radial | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.496" (12.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R41BN268050T0KCAP FILM 0.068UF 10% 1.5KVDC RAD |
479 |
|
Datasheet | Radial | 0.068 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
