Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C274ACF5150WA0JCAP FILM 15UF 5% 470VAC RADIAL |
116 |
|
Datasheet | Radial, Can | 15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
C4AQLBW5500A3JKCAP FILM 50UF 10% 500VDC RADIAL |
258 |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQPBW5200M3MJCAP FILM 20UF 5% 1.2KVDC RADIAL |
104 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C878BF35150SA0JCAP FILM 15UF 5% 470VAC RADIAL |
22 |
|
Datasheet | Radial, Can | 15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C4ASPBW3470A3GJCAP FILM 0.47UF 5% 1.2KVDC RAD |
132 |
|
Datasheet | Radial - 4 Leads | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | Snubber | - | - |
|
R586W433050T0KCAP FILM 600VAC(X1) 3.3 UF 10% |
108 |
|
Datasheet | Radial | 3.3 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

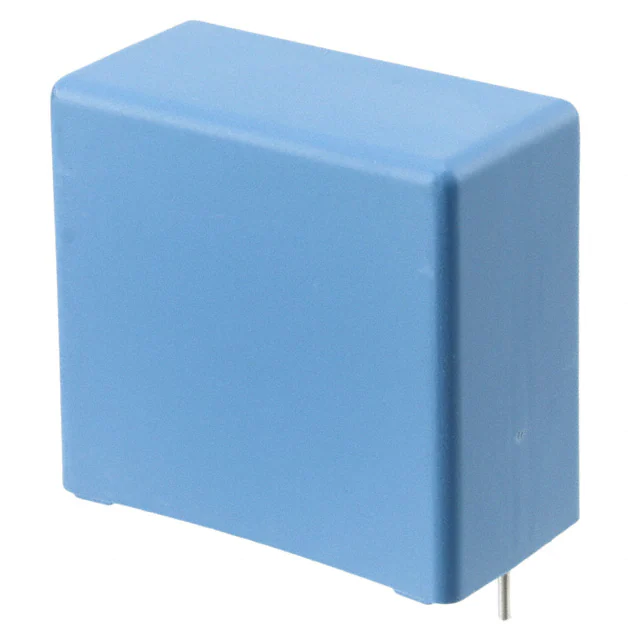

PHE450MR7270JR06L2CAP FILM 2.7UF 5% 630VDC RADIAL |
1,424 |
|
Datasheet | Radial | 2.7 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
EZP-V1B256MTTCAP FILM 25UF 10% 1100V RADIAL |
235 |
|
Datasheet | Radial - 4 Leads | 25 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.9 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.106" (53.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C4ATHBW4900A3LJCAP FILM 9UF 5% 600VDC RADIAL |
180 |
|
Datasheet | Radial - 4 Leads | 9 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AF7BW5100T3OKFILM, POWER, METALLIZED POLYPROP |
104 |
|
Datasheet | Radial - 4 Leads | 10 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 2.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
R60ER54705040KCAP FILM 47UF 10% 100VDC RAD |
107 |
|
Datasheet | Radial | 47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
C4AQLBW5540M3HKCAP FILM 54UF 10% 500VDC RADIAL |
130 |
|
Datasheet | Radial - 4 Leads | 54 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.6 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.740" (44.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
EZP-Q33356MTACAP FILM 35UF 5% 330VAC RADIAL |
192 |
|
Datasheet | Radial - 4 Leads | 35 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.461" (62.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
C276CC35600AA0JCAP FILM 60UF 5% 470VAC RADIAL |
262 |
|
Datasheet | Radial, Can | 60 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.803" (122.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C878AG35600AA0JCAP FILM 60UF 5% 470VAC RADIAL |
297 |
|
Datasheet | Radial, Can | 60 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
EZP-V60406MTBCAP FILM 40UF 10% 600V RADIAL |
269 |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 1.083" W (41.50mm x 27.50mm) | 1.693" (43.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
C870DF35300AA1JCAP FILM 30UF 5% 470VAC RADIAL |
350 |
|
Datasheet | Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
C4AEJBW5300A3LJCAP FILM 30UF 5% 700VDC RADIAL |
419 |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
EZP-E50556MTACAP FILM 55UF 10% 500VDC RADIAL |
572 |
|
Datasheet | Radial - 4 Leads | 55 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
C274AC35200SA0JCAP FILM 20UF 5% 470VAC RADIAL |
251 |
|
Datasheet | Radial, Can | 20 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
