Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-U2105KCZCAP FILM 1UF 10% 250VDC 6039 |
1,692 |
|
Datasheet | 6039 (1510 Metric) | 1 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.598" L x 0.394" W (15.20mm x 10.00mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
C4AF1BU4750A12KCAP FILM 7.5UF 10% 250VAC RADIAL |
613 |
|
Datasheet | Radial | 7.5 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
 Series Straight 23x17.jpg)
|
ECW-F2685JACAP FILM 6.8UF 5% 250VDC RADIAL |
742 |
|
Datasheet | Radial | 6.8 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.701" W (23.80mm x 17.80mm) | 0.984" (25.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
R60MR51005040KCAP FILM 10UF 10% 400VDC RADIAL |
178 |
|
Datasheet | Radial | 10 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R75RR356050H4JCAP FILM 0.56UF 5% 1.25KVDC RAD |
284 |
|
Datasheet | Radial | 0.56 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5.7 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R75UW356050H4JCAP FILM 0.56UF 5% 2KVDC RADIAL |
487 |
|
Datasheet | Radial | 0.56 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.7 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AEJBU4400A1XJCAP FILM 4UF 5% 700VDC RADIAL |
234 |
|
Datasheet | Radial | 4 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 12.9 mOhms | -40°C ~ 85°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
EZP-V1B405LTTCAP FILM 4UF 10% 1100V RADIAL |
318 |
|
Datasheet | Radial | 4 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 23.5 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.181" (30.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C4AQILW5150A36JCAP FILM 15UF 5% 800VDC RADIAL |
1,518 |
|
Datasheet | Radial - 4 Leads | 15 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 6.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 0.953" (24.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R533R468050P0KCAP FILM 6.8UF 10% 630VDC RADIAL |
112 |
|
Datasheet | Radial | 6.8 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.469" (37.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE845VF6330MR06L2CAP FILM 0.33UF 20% 1.5KVDC RAD |
1,313 |
|
Datasheet | Radial | 0.33 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
PHE840MR7220MR05R06L2CAP FILM 2.2UF 20% 760VDC RADIAL |
280 |
|
Datasheet | Radial | 2.2 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
C4AQSLW4600A36JCAP FILM 6UF 5% 1.5KVDC RADIAL |
233 |
|
Datasheet | Radial - 4 Leads | 6 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 9.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 0.953" (24.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
.jpg)
|
LDEEH4470KA5N00CAP FILM 4.7UF 10% 100VDC 6054 |
535 |
|
Datasheet | 6054 (153137 Metric) | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.610" L x 0.539" W (15.50mm x 13.70mm) | 0.209" (5.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
C4AQGBU5150P11KCAP FILM 15UF 10% 450VDC RADIAL |
159 |
|
Datasheet | Radial | 15 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 6.4 mOhms | -55°C ~ 125°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
EZP-Q33405LTACAP FILM 4UF 5% 330VAC RADIAL |
261 |
|
Datasheet | Radial | 4 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 17.5 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.713" (43.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
C4AQCBU5150A12JCAP FILM 15UF 5% 650VDC RADIAL |
150 |
|
Datasheet | Radial | 15 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

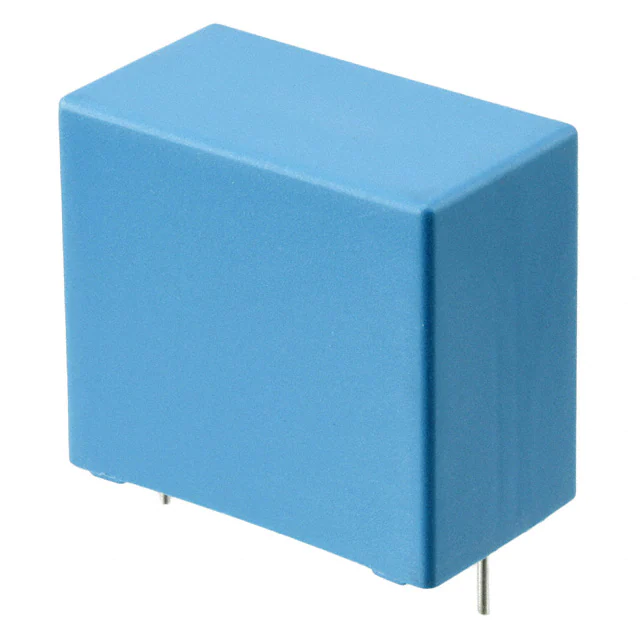

PHE450MF7100JR06L2CAP FILM 1UF 5% 630VDC RADIAL |
174 |
|
Datasheet | Radial | 1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
R41BW410050T0KCAP FILM 1UF 10% 1.5KVDC RADIAL |
174 |
|
Datasheet | Radial | 1 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
SMC7.3154J50K35TR12CAP FILM 0.15UF 5% 50VDC 2824 |
4,315 |
|
Datasheet | 2824 (7260 Metric) | 0.15 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.138" (3.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
