Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R82DC3470AA60KCAP FILM 0.47UF 10% 63VDC RADIAL |
2,249 |
|
Datasheet | Radial | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.299" (7.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
ECQ-E2683JBCAP FILM 0.068UF 5% 250VDC RAD |
2,031 |
|
Datasheet | Radial | 0.068 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311" L x 0.201" W (7.90mm x 5.10mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
R82EC2270DQ50JCAP FILM 0.027UF 5% 100VDC RAD |
63,988 |
|
Datasheet | Radial | 0.027 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
ECQ-E4223KFCAP FILM 0.022UF 10% 400VDC RAD |
8,320 |
|
Datasheet | Radial | 0.022 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.189" W (10.30mm x 4.80mm) | 0.331" (8.40mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
ECQ-E4273KFCAP FILM 0.027UF 10% 400VDC RAD |
402,849 |
|
Datasheet | Radial | 0.027 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.217" W (10.30mm x 5.50mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
MMK5103J50J01L16.5TA18CAP FILM 10000PF 5% 50VDC RADIAL |
8,413 |
|
Datasheet | Radial | 10000 pF | ±5% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
.jpg)
|
ECH-U1C221JX5CAP FILM 220PF 5% 16VDC 0603 |
4,285 |
|
Datasheet | 0603 (1608 Metric) | 220 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | Solder Pads | - | General Purpose | - | - |
|
|
R82EC2200DQ50JCAP FILM 0.02UF 5% 100VDC RADIAL |
2,495 |
|
Datasheet | Radial | 0.02 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | - | Automotive | AEC-Q200 | - |
|

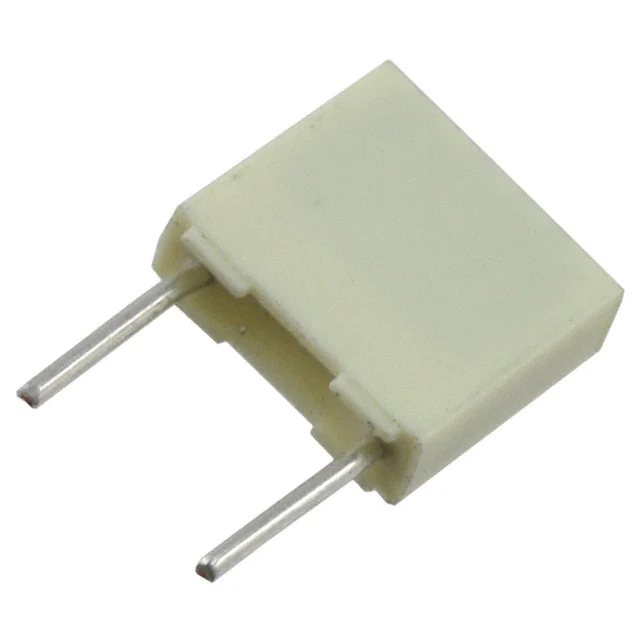

RSBDC3100AA00JCAP FILM 0.1UF 5% 63VDC RADIAL |
2,254 |
|
Datasheet | Radial | 0.1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
R46KI24705001MCAP FILM 0.047UF 20% 560VDC RAD |
158,591 |
|
Datasheet | Radial | 0.047 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E2154KFCAP FILM 0.15UF 10% 250VDC RAD |
47,603 |
|
Datasheet | Radial | 0.15 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.465" (11.80mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
R82EC3470AA70JCAP FILM 0.47UF 5% 100VDC RADIAL |
18,815 |
|
Datasheet | Radial | 0.47 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.378" (9.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
MMK5103K63J01L4BULKCAP FILM 10000PF 10% 63VDC RAD |
15,936 |
|
Datasheet | Radial | 10000 pF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
MMK5123J50J01L16.5TR18CAP FILM 0.012UF 5% 50VDC RADIAL |
11,851 |
|
Datasheet | Radial | 0.012 µF | ±5% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
ECH-U1C222JX5CAP FILM 2200PF 5% 16VDC 0603 |
9,671 |
|
Datasheet | 0603 (1608 Metric) | 2200 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | Solder Pads | - | General Purpose | - | - |
|
|
MMK5182J100J01L16.5TA18CAP FILM 1800PF 5% 100VDC RADIAL |
7,835 |
|
Datasheet | Radial | 1800 pF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
MMK5103J50J01L4BULKCAP FILM 10000PF 5% 50VDC RADIAL |
4,560 |
|
Datasheet | Radial | 10000 pF | ±5% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
R82DC3470DQ60JCAP FILM 0.47UF 5% 63VDC RADIAL |
3,286 |
|
Datasheet | Radial | 0.47 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.299" (7.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
ECQ-UAAF154KCAP FILM 0.15UF 10% 275VAC RAD |
123,638 |
|
Datasheet | Radial | 0.15 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R71MF31004030KCAP FILM 0.1UF 10% 420VDC RADIAL |
7,026 |
|
Datasheet | Radial | 0.1 µF | ±10% | 220V | 420V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
