Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FD2J274J4CAP FILM 0.27UF 5% 630VDC RADIAL |
7,614 |
|
Datasheet | Radial | 0.27 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.236" W (17.80mm x 6.00mm) | 0.630" (16.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F461DB274J400RCAP FILM POLYPROP RAD |
4,721 |
|
Datasheet | Radial | 0.27 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
R66DD4220Z36AKCAP FILM METAL RAD POLYESTER |
6,362 |
|
Datasheet | Radial | 2.2 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
|
|
R60MN32205030KCAP FILM AUTOMOTIVE |
7,647 |
|
Datasheet | Radial | 0.22 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
F881DB563M300ZCAP FILM POLYPROP RAD Y2 |
4,816 |
|
Datasheet | Radial | 0.056 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
R66ED4100CK7AKCAP FILM METAL RAD POLYESTER |
3,734 |
|
Datasheet | Radial | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.417" (10.60mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
|
|
F861BI394K310RCAP FILM POLYPROP RAD X2 |
2,870 |
|
Datasheet | Radial | 0.39 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
F872BT333M480CCAP FILM POLYPROP RAD X1 |
2,921 |
|
Datasheet | Radial | 0.033 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
F881BT333M300CCAP FILM POLYPROP RAD Y2 |
7,688 |
|
Datasheet | Radial | 0.033 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|

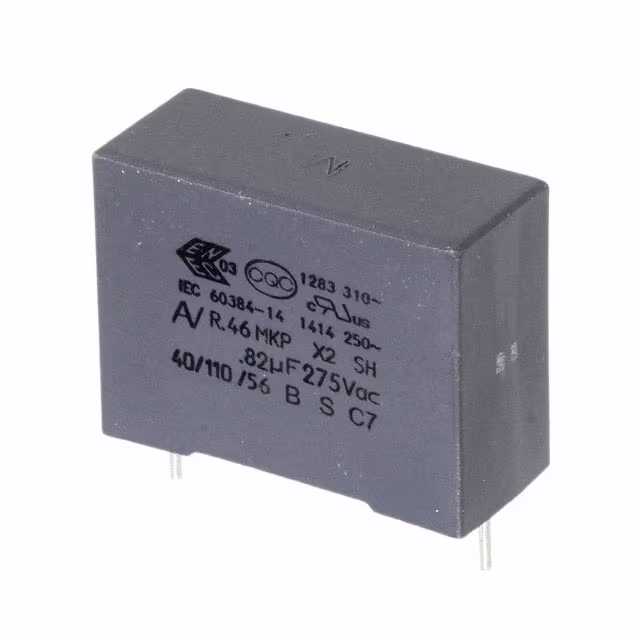

R46KN382000M1MCAP FILM 0.82UF 20% 560VDC RAD |
9,330 |
|
Datasheet | Radial | 0.82 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAV334SACAP FILM 0.33UF 20% 310VAC RAD |
9,615 |
|
Datasheet | Radial | 0.33 µF | ±20% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
F881BO333M300ACAP FILM POLYPROP RAD Y2 |
2,083 |
|
Datasheet | Radial | 0.033 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
R73UI0680DQ00KCAP FILM METAL RAD POLYPROP |
3,570 |
|
Datasheet | Radial | 680 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R60MN3220JB30KCAP FILM AUTOMOTIVE |
9,603 |
|
Datasheet | Radial | 0.22 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
F461BP824J250RCAP FILM POLYPROP RAD |
9,127 |
|
Datasheet | Radial | 0.82 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
ECQ-E1105KFWCAP FILM 1UF 10% 100VDC RADIAL |
2,939 |
|
Datasheet | Radial | 1 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.264" W (12.00mm x 6.70mm) | 0.748" (19.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
ECQ-E1105KFBCAP FILM 1UF 10% 100VDC RADIAL |
9,314 |
|
Datasheet | Radial | 1 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.264" W (12.00mm x 6.70mm) | 0.748" (19.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
F872BT253M480ZCAP FILM POLYPROP RAD X1 |
3,753 |
|
Datasheet | Radial | 0.025 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
F881BT253M300ZCAP FILM POLYPROP RAD Y2 |
4,826 |
|
Datasheet | Radial | 0.025 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
R46KI333040M1MCAP FILM SAFETY/EMI SUPP RAD |
5,513 |
|
Datasheet | Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
