Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F461DB124M630R.120UF 630V |
8,850 |
|
Datasheet | Radial | 0.12 µF | ±20% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|

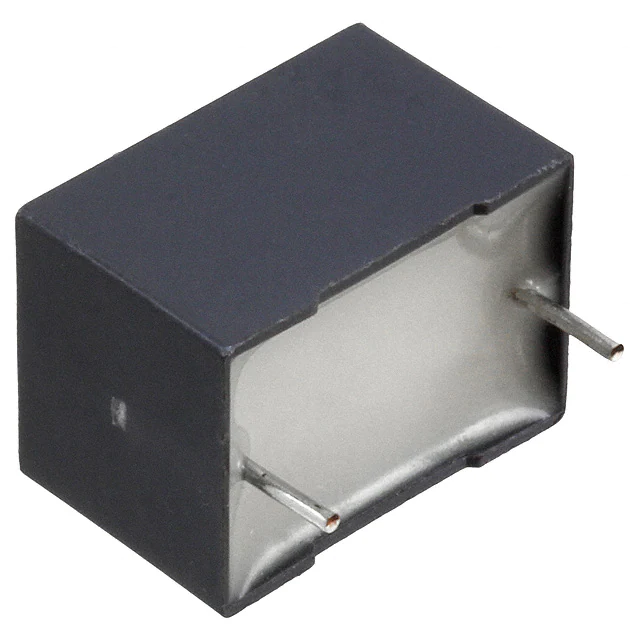

R46KI33300001MCAP FILM 0.33UF 20% 560VDC RAD |
9,663 |
|
Datasheet | Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
F462DB153K1K6RCAP FILM POLYPROP RAD |
3,765 |
|
Datasheet | Radial | 0.015 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F461BP824J250CCAP FILM POLYPROP RAD |
3,835 |
|
Datasheet | Radial | 0.82 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
ECW-HC3F362JCAP FILM 3600PF 5% 3KVDC RADIAL |
5,881 |
|
Datasheet | Radial | 3600 pF | ±5% | - | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.283" W (25.80mm x 7.20mm) | 0.469" (11.90mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
F881BI253M300ZCAP FILM POLYPROP RAD Y2 |
7,901 |
|
Datasheet | Radial | 0.025 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
R73RI1220JH00KCAP FILM METAL RAD POLYPROP |
3,864 |
|
Datasheet | Radial | 2200 pF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R73QI1680SE30JCAP FILM METAL RAD POLYPROP |
9,614 |
|
Datasheet | Radial | 6800 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R75II32704040JCAP FILM AUTO POLYPROP RAD |
5,566 |
|
Datasheet | Radial | 0.27 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 17.7 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R75II32705040JCAP FILM AUTO POLYPROP RAD |
2,385 |
|
Datasheet | Radial | 0.27 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 17.7 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
F881AO822M300LCAP FILM POLYPROP RAD Y2 |
9,230 |
|
Datasheet | Radial | 8200 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.669" (17.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
R75QN31005000KCAP FILM AUTO POLYPROP RAD |
4,993 |
|
Datasheet | Radial | 0.1 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | 27.1 mOhms | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76TI2220JB40KCAP FILM AUTO POLYPROP RAD |
3,275 |
|
Datasheet | Radial | 0.022 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 29 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
F461DB564K250ZCAP FILM POLYPROP RAD |
8,119 |
|
Datasheet | Radial | 0.56 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
R46KI333050P0KCAP FILM SAFETY/EMI SUPP RAD |
3,187 |
|
Datasheet | Radial | 0.33 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
F861BI334J310Z.330UF 310V |
5,578 |
|
Datasheet | Radial | 0.33 µF | ±5% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAV274RACAP FILM 0.27UF 20% 310VAC RAD |
8,329 |
|
Datasheet | Radial | 0.27 µF | ±20% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
F462BK563K1K0ACAP FILM POLYPROP RAD |
6,913 |
|
Datasheet | Radial | 0.056 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.531" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
R73UI06805000JCAP FILM METAL RAD POLYPROP |
2,364 |
|
Datasheet | Radial | 680 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R73UI06804000JCAP FILM METAL RAD POLYPROP |
2,648 |
|
Datasheet | Radial | 680 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
