Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFR5152J63J11L4BULKCAP FILM 1500PF 5% 63VDC RADIAL |
558 |
|
Datasheet | Radial | 1500 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

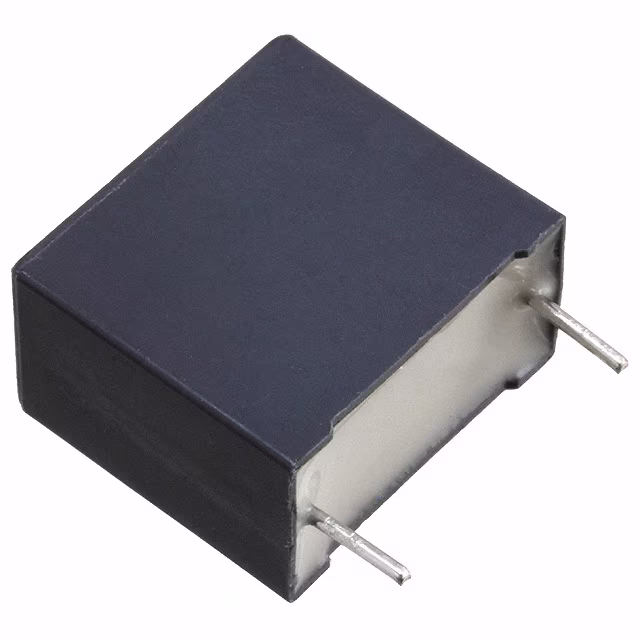

R49AI322000B2MCAP FILM 0.22UF 20% 800VDC RAD |
380 |
|
Datasheet | Radial | 0.22 µF | ±20% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.630" (16.00mm) | EMI, RFI Suppression | X1 | - |
|
R76UN256050H4JCAP FILM 0.056UF 5% 2KVDC RAD |
247 |
|
Datasheet | Radial | 0.056 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 45 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PFR5102J63J11L4BULKCAP FILM 1000PF 5% 63VDC RADIAL |
188 |
|
Datasheet | Radial | 1000 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KN347050N0KCAP FILM 0.47UF 10% 560VDC RAD |
9,430 |
|
Datasheet | Radial | 0.47 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECH-U1H223GB5CAP FILM 0.022UF 2% 50VDC 1210 |
3,864 |
|
Datasheet | 1210 (3225 Metric) | 0.022 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
LDECA1100JA0N00CAP FILM 1000PF 5% 50VDC 1206 |
3,370 |
|
Datasheet | 1206 (3216 Metric) | 1000 pF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
.jpg)
|
ECH-U1H823JX9CAP FILM 0.082UF 5% 50VDC 1913 |
1,270 |
|
Datasheet | 1913 (4833 Metric) | 0.082 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
PME271M515MR30CAP FILM 0.015UF 20% 630VDC RAD |
1,207 |
|
Datasheet | Radial | 0.015 µF | ±20% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.413" (10.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
R46KN347000N0KCAP FILM 0.47UF 10% 560VDC RAD |
647 |
|
Datasheet | Radial | 0.47 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

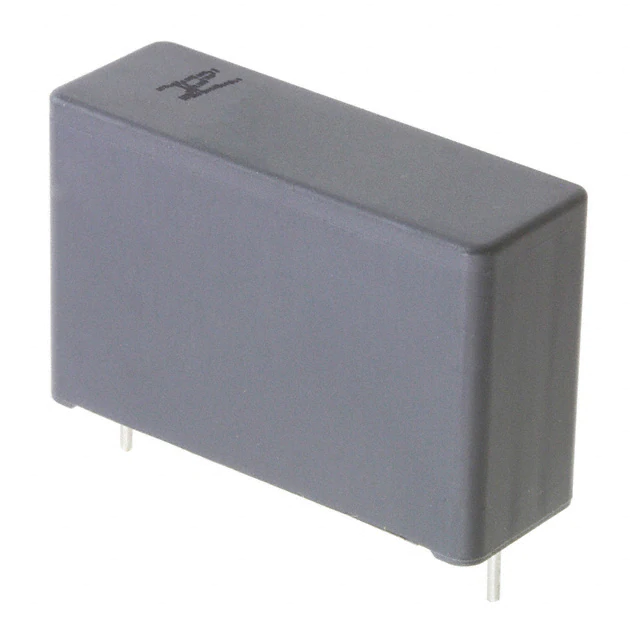

R463R410000M1MCAP FILM 1UF 20% 630VDC RADIAL |
468 |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
 Series Style D 18x7.jpg)
|
ECW-F2824JAQCAP FILM 0.82UF 5% 250VDC RADIAL |
262 |
|
Datasheet | Radial | 0.82 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713" L x 0.315" W (18.10mm x 8.00mm) | 0.831" (21.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R413N24700000KCAP FILM 0.047UF 10% 1KVDC RAD |
6,829 |
|
Datasheet | Radial | 0.047 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R474N315050A1KCAP FILM 0.15UF 10% 1KVDC RADIAL |
5,654 |
|
Datasheet | Radial | 0.15 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
LDBCB2470GC5N0CAP FILM 0.047UF 2% 50VDC 1210 |
2,240 |
|
Datasheet | 1210 (3225 Metric) | 0.047 µF | ±2% | - | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECH-U1183GC9CAP FILM 0.018UF 2% 100VDC 1913 |
1,925 |
|
Datasheet | 1913 (4833 Metric) | 0.018 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
|
PFR5471J630J11L4BULKCAP FILM 470PF 5% 630VDC RADIAL |
856 |
|
Datasheet | Radial | 470 pF | ±5% | 250V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R76PI24704030JCAP FILM 0.047UF 5% 630VDC RAD |
704 |
|
Datasheet | Radial | 0.047 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75PN356050H3JCAP FILM 0.56UF 5% 630VDC RADIAL |
645 |
|
Datasheet | Radial | 0.56 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 11.4 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE840MD6470MD15R06L2CAP FILM 0.47UF 20% 760VDC RAD |
233 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
