FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA1N120PMOSFET N-CH 1200V 1A TO263 |
94 |
|
Datasheet | Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 1A (Tc) | 10V | 20Ohm @ 500mA, 10V | 4.5V @ 50µA | 17.6 nC @ 10 V | ±20V | 550 pF @ 25 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IPW60R160C6FKSA1MOSFET N-CH 600V 23.8A TO247-3 |
56 |
|
Datasheet | CoolMOS™ | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 23.8A (Tc) | 10V | 160mOhm @ 11.3A, 10V | 3.5V @ 750µA | 75 nC @ 10 V | ±20V | 1660 pF @ 100 V | - | 176W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-1 |
|
CSD19505KTTTMOSFET N-CH 80V 200A DDPAK |
117 |
|
Datasheet | NexFET™ | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 200A (Ta) | 6V, 10V | 3.1mOhm @ 100A, 10V | 3.2V @ 250µA | 76 nC @ 10 V | ±20V | 7920 pF @ 40 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
APT30F50BMOSFET N-CH 500V 30A TO247 |
95 |
|
Datasheet | POWER MOS 8™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 190mOhm @ 14A, 10V | 5V @ 1mA | 115 nC @ 10 V | ±30V | 4525 pF @ 25 V | - | 415W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
STF15NM65NMOSFET N-CH 650V 12A TO220FP |
84 |
|
Datasheet | MDmesh™ II | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 380mOhm @ 6A, 10V | 4V @ 250µA | 33.3 nC @ 10 V | ±25V | 983 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
APT9M100SMOSFET N-CH 1000V 9A D3PAK |
47 |
|
Datasheet | POWER MOS 8™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 9A (Tc) | 10V | 1.4Ohm @ 5A, 10V | 5V @ 1mA | 80 nC @ 10 V | ±30V | 2605 pF @ 25 V | - | 335W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D3PAK |
|
IPA075N15N3GXKSA1MOSFET N-CH 150V 43A TO220-3 |
61 |
|
Datasheet | OptiMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 43A (Tc) | 8V, 10V | 7.5mOhm @ 43A, 10V | 4V @ 270µA | 93 nC @ 10 V | ±20V | 7280 pF @ 75 V | - | 39W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
NTHL190N65S3HFMOSFET N-CH 650V 20A TO247-3 |
44 |
|
Datasheet | FRFET®, SuperFET® III | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 430µA | 34 nC @ 10 V | ±30V | 1610 pF @ 400 V | - | 162W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IXTP01N100DMOSFET N-CH 1000V 400MA TO220AB |
90 |
|
Datasheet | Depletion | TO-220-3 | Tube | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 1000 V | 400mA (Tc) | 0V | 80Ohm @ 50mA, 0V | 4.5V @ 25µA | 5.8 nC @ 5 V | ±20V | 100 pF @ 25 V | - | 1.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
.jpg)
|
IXTH180N10TMOSFET N-CH 100V 180A TO247 |
94 |
|
Datasheet | Trench | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 6.4mOhm @ 25A, 10V | 4.5V @ 250µA | 151 nC @ 10 V | ±30V | 6900 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXTP80N075L2MOSFET N-CH 75V 80A TO220AB |
32 |
|
Datasheet | Linear L2™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 10V | 24mOhm @ 40A, 10V | 4.5V @ 250µA | 103 nC @ 10 V | ±20V | 3600 pF @ 25 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
IXTH120P065TMOSFET P-CH 65V 120A TO247 |
88 |
|
Datasheet | TrenchP™ | TO-247-3 | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 65 V | 120A (Tc) | 10V | 10mOhm @ 500mA, 10V | 4V @ 250µA | 185 nC @ 10 V | ±15V | 13200 pF @ 25 V | - | 298W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXFA34N65X3MOSFET 34A 650V X3 TO263 |
45 |
|
Datasheet | HiPerFET™, Ultra X3 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34A (Tc) | 10V | 100mOhm @ 17A, 10V | 5.2V @ 2.5mA | 29 nC @ 10 V | ±20V | 2025 pF @ 25 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
|
IXTP6N100D2MOSFET N-CH 1000V 6A TO220AB |
63 |
|
Datasheet | Depletion | TO-220-3 | Tube | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 1000 V | 6A (Tc) | - | 2.2Ohm @ 3A, 0V | - | 95 nC @ 5 V | ±20V | 2650 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
MSC080SMA120B4SICFET N-CH 1200V 37A TO247-4 |
94 |
|
Datasheet | - | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 37A (Tc) | 20V | 100mOhm @ 15A, 20V | 2.8V @ 1mA | 64 nC @ 20 V | +23V, -10V | 838 pF @ 1000 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
IXTP86N20X4MOSFET 200V 86A N-CH ULTRA TO220 |
26 |
|
Datasheet | Ultra X4 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 86A (Tc) | 10V | 13mOhm @ 43A, 10V | 4.5V @ 250µA | 70 nC @ 10 V | ±20V | 2250 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
MSC060SMA070BSICFET N-CH 700V 39A TO247-3 |
79 |
|
Datasheet | - | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 39A (Tc) | 20V | 75mOhm @ 20A, 20V | 2.4V @ 1mA | 56 nC @ 20 V | +23V, -10V | 1175 pF @ 700 V | - | 143W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IXFH48N60X3MOSFET ULTRA JCT 600V 48A TO247 |
58 |
|
Datasheet | HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 48A (Tc) | 10V | 65mOhm @ 24A, 10V | 5V @ 2.5mA | 38 nC @ 10 V | ±20V | 2730 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
NTH4L060N090SC1SILICON CARBIDE MOSFET, NCHANNEL |
33 |
|
Datasheet | - | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 900 V | 46A (Tc) | 15V, 18V | 43mOhm @ 20A, 18V | 4.3V @ 5mA | 87 nC @ 15 V | +22V, -8V | 1770 pF @ 450 V | - | 221W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4L |
|

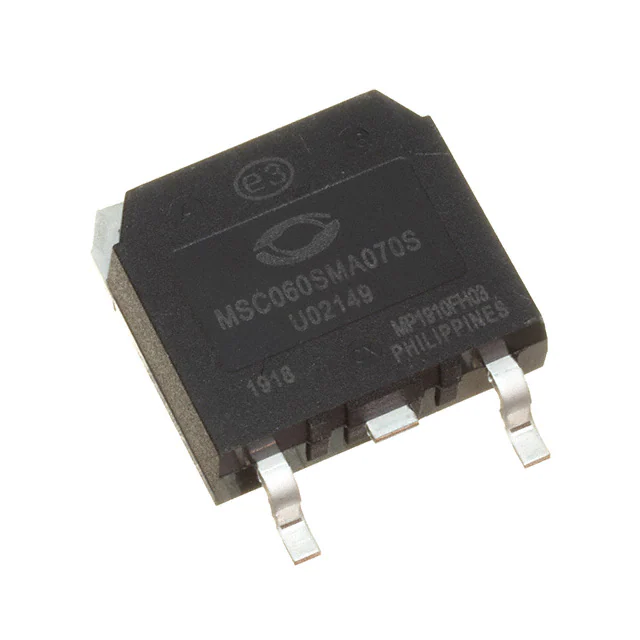

MSC060SMA070SSICFET N-CH 700V 37A D3PAK |
92 |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 37A (Tc) | 20V | 75mOhm @ 20A, 20V | 2.4V @ 1mA (Typ) | 56 nC @ 20 V | +23V, -10V | 1175 pF @ 700 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D3PAK |
