FET, MOSFET Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDG6332C-F085PMOSFET N/P-CH 20V 0.7A SC70-6 |
9,880 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | N and P-Channel | - | 20V | 700mA (Ta), 600mA (Ta) | 300mOhm @ 700mA, 4.5V, 420mOhm @ 600mA, 4.5V | 1.5V @ 250µA | 1.5nC @ 4.5V, 2nC @ 4.5V | 113pF @ 10V, 114pF @ 10V | 300mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70-6 |
|
DF11MR12W1M1B11BPSA1MOSFET 2N-CH 1200V AG-EASY1BM-2 |
7,868 |
|
Datasheet | CoolSiC™+ | Module | Tray | Obsolete | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 50A (Tj) | 22.5mOhm @ 50A, 15V | 5.55V @ 20mA | 124nC @ 15V | 3680pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | AG-EASY1BM-2 |
|
HAT1126RWS-EMOSFET 2P-CH 60V 6A 8SOP |
7,700 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate, 4.5V Drive | 60V | 6A (Ta) | 50mOhm @ 3A, 10V | 2.5V @ 1mA | 37nC @ 10V | 2300pF @ 10V | 3W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
HAT2038RWS-EMOSFET 2N-CH 60V 5A 8SOP |
4,897 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate, 4V Drive | 60V | 5A (Ta) | 58mOhm @ 3A, 10V | 2.2V @ 1mA | - | 520pF @ 10V | 3W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
|
HAT2210RWS-EMOSFET 2N-CH 30V 7.5A 8SOP |
7,385 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual), Schottky | Logic Level Gate, 4.5V Drive | 30V | 7.5A (Ta), 8A (Ta) | 24mOhm @ 3.75A, 10V, 22mOhm @ 4A, 10V | 2.5V @ 1mA | 4.6nC @ 4.5V, 11nC @ 4.5V | 630pF @ 10V, 1330pF @ 10V | 1.5W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
|
UPA1950TE-T1-ATMOSFET 2P-CH 12V 2.5A SC95 |
4,235 |
|
Datasheet | - | SC-95 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate, 1.8V Drive | 12V | 2.5A (Ta) | 130mOhm @ 1.5A, 4.5V | 1.5V @ 1mA | 1.9nC @ 4V | 220pF @ 10V | 1.15W (Ta) | 150°C | - | - | Surface Mount | SC-95 |
|
|
UPA1952TE-T1-AMOSFET 2P-CH 20V 2A SC95 |
5,018 |
|
Datasheet | - | SC-95 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | Logic Level Gate, 1.8V Drive | 20V | 2A (Ta) | 135mOhm @ 1A, 4.5V | 1.5V @ 1mA | 2.3nC @ 4V | 272pF @ 10V | 1.15W (Ta) | 150°C | - | - | Surface Mount | SC-95 |
|
|
UPA2350T1P-E4-AMOSFET 2N-CH 20V 6A LGA |
2,389 |
|
- |
- | 4-XFBGA | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate, 2.5V Drive | 20V | 6A (Ta) | 35mOhm @ 3A, 4.5V | 1.5V @ 1mA | 8.6nC @ 4V | 542pF @ 10V | 1.3W (Ta) | 150°C | - | - | Surface Mount | 4-EFLIP-LGA (1.62x1.62) |
|
|
UPA2374T1P-E1-AMOSFET N-CH DUAL LGA |
2,888 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UPA2381AT1P-E1-AMOSFET N-CH DUAL LGA |
5,276 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UPA672CT-T1-ATMOSFET 2N-CH 60V 0.1A SC88 |
7,714 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual), Schottky | Logic Level Gate, 4.5V Drive | 60V | 100mA (Ta) | 2.7Ohm @ 100mA, 10V | 2.5V @ 250µA | 2nC @ 10V | 20pF @ 10V | 200mW (Ta) | 150°C | - | - | Surface Mount | SC-88 |
|
|
2N7002DW-13-GMOSFET 2N-CH 60V SOT-363 |
4,745 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DMN5L06VK-7-GMOSFET 2N-CH 50V 0.28A SOT563 |
6,585 |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 50V | 280mA (Ta) | 2Ohm @ 50mA, 5V | 1.2V @ 250µA | - | 50pF @ 25V | 250mW | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-563 |
|
|
DMP2160UFDB-7RMOSFET P-CH SOT23 |
8,687 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IRF7331TRPBF-1MOSFET 2N-CH 20V 7A 8SOIC |
5,684 |
|
Datasheet | HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 7A (Ta) | 30mOhm @ 7A, 4.5V | 1.2V @ 250µA | 20nC @ 4.5V | 1340pF @ 16V | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IRF7904TRPBF-1MOSFET 2N-CH 30V 7.6A/11A 8SO |
8,358 |
|
Datasheet | HEXFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 7.6A, 11A | 16.2mOhm @ 7.6A, 10V | 2.25V @ 25µA | 11nC @ 4.5V | 910pF @ 15V | 1.4W, 2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
DMN5L06DWK-7-01MOSFET 2N-CH 50V 0.305A SOT363 |
6,737 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 50V | 305mA (Ta) | 2Ohm @ 50mA, 5V | 1V @ 250µA | 0.4nC @ 4.5V | 50pF @ 25V | 250mW (Ta) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|

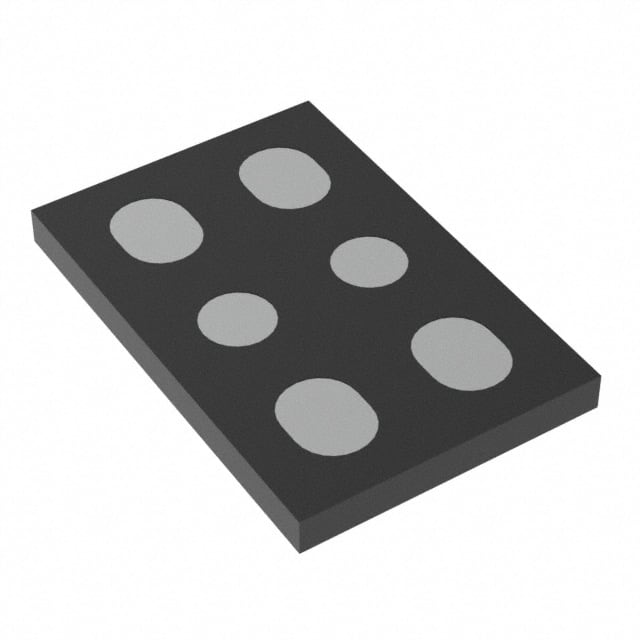

EFC2K101NUZTDGMOSFET 2N-CH 12V 15A 6WLCSP |
6,611 |
|
Datasheet | - | 6-SMD, No Lead | Tape & Reel (TR) | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Dual) Common Drain | Logic Level Gate, 2.5V Drive | 12V | 15A (Ta) | 6.2mOhm @ 5A, 4.5V | 1.3V @ 1mA | 16nC @ 3.8V | - | 1.4W (Ta) | 150°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.79x1.18) |
|
|
94-2518PBFMOSFET |
2,844 |
|
- |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
64-2013PBFMOSFET |
8,391 |
|
- |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
