Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CYIL2SM1300-EVALBOARD EVAL IMG SENS LUPA-1300-2 |
0 |
|
Datasheet | - | Box | Obsolete | CMOS Imaging, Monochrome | 1.3 Megapixel | SPI | 500fps | 2.5V ~ 3.3V | No | Board(s) | LUPA-1300-2 |
|
USEQDAK8128L00FOOD SENSOR EVALUATION KIT LINEA |
0 |
|
Datasheet | QDA | Box | Active | Infrared | - | - | - | - | - | Board(s) | USEQDAAA: 128L00, 128S00, 12850 |
|
|
USEQDAK8128500FOOD SENSOR EVALUATION KIT LINEA |
0 |
|
Datasheet | QDA | Box | Active | Infrared | - | - | - | - | - | Board(s) | USEQDAAA: 128L00, 128S00, 12850 |
|

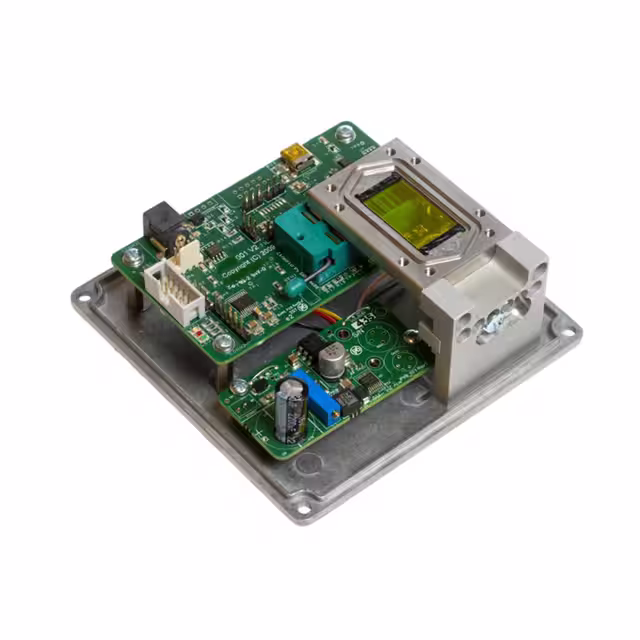

USEQDAK7128L00FOOD SENSOR EVALUATION KIT LINEA |
0 |
|
Datasheet | QDA | Box | Active | Infrared | - | - | - | - | - | Board(s) | USEQDAAA: 128L00, 128S00, 12850 |
|

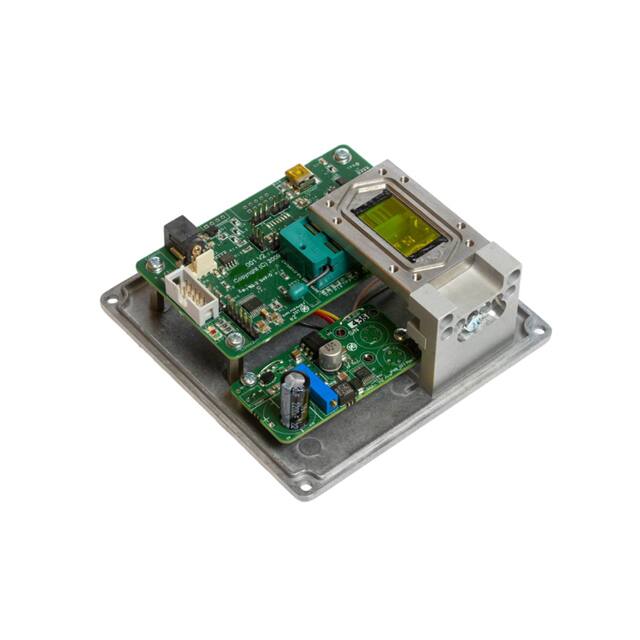

USEQDAK7128500FOOD SENSOR EVALUATION KIT LINEA |
0 |
|
Datasheet | QDA | Box | Active | Infrared | - | - | - | - | - | Board(s) | USEQDAAA: 128L00, 128S00, 12850 |
|
|
CYII4SC014K-EVALBOARD EVAL IMAG SENS IBIS4-14000 |
0 |
|
Datasheet | - | Tray | Obsolete | CMOS Imaging, Color (RGB) | 14 Megapixel | SPI | 3fps | 3.3V | No | Board(s) | IBIS4-14000 |
|
|
CYII4SM014K-EVALBOARD EVAL IMAG SENS IBIS4-14000 |
0 |
|
Datasheet | - | Tray | Obsolete | CMOS Imaging, Monochrome | 14 Megapixel | SPI | 3fps | 3.3V | No | Board(s) | IBIS4-14000 |
|
CYIL1SM4000-EVALBOARD EVAL IMAGE SENS LUPA-4000 |
0 |
|
Datasheet | - | Tray | Obsolete | CMOS Imaging, Monochrome | 4 Megapixel | SPI | 15fps | 2.5V ~ 3.3V | No | Board(s) | LUPA-4000 |
|

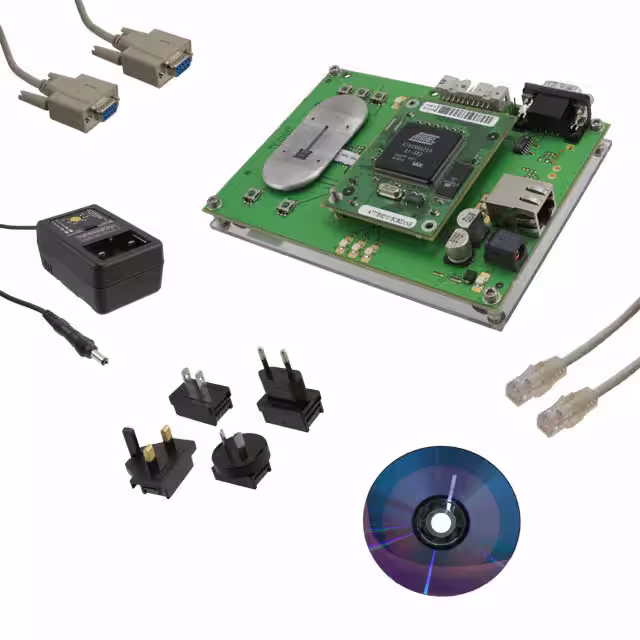

AT77SM0101BCB02VEKKIT EVALUATION FINGERCHIP |
0 |
|
Datasheet | FingerChip™ Biometrics | - | Obsolete | Fingerprint | - | - | - | 3V ~ 3.6V | Yes, MCU, 16/32-Bit | Board(s), Cable(s), Power Supply | AT77SM0101BCB02VKE |
|

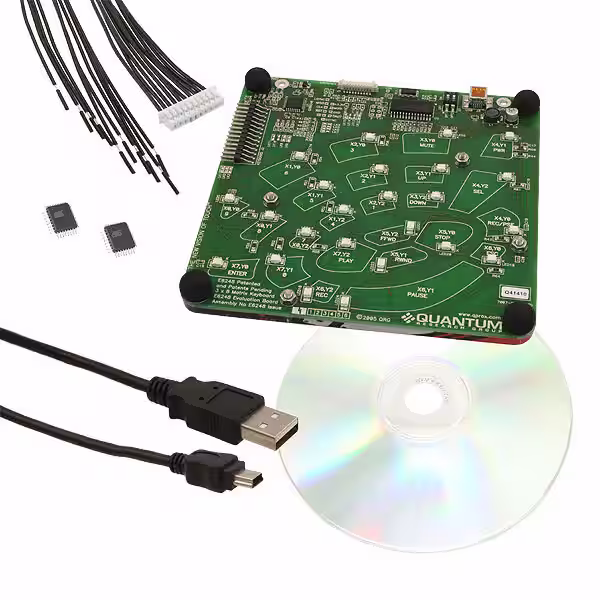

E6248BOARD EVAL QT60248-AS QMATRIX |
0 |
|
Datasheet | Quantum, QMatrix™ | Box | Obsolete | Touch, Capacitive | 16 / 24 Buttons/Keys | Serial, SPI | - | 3V ~ 5V | No | Board(s), Cable(s) | QT60168, QT60248 |
|

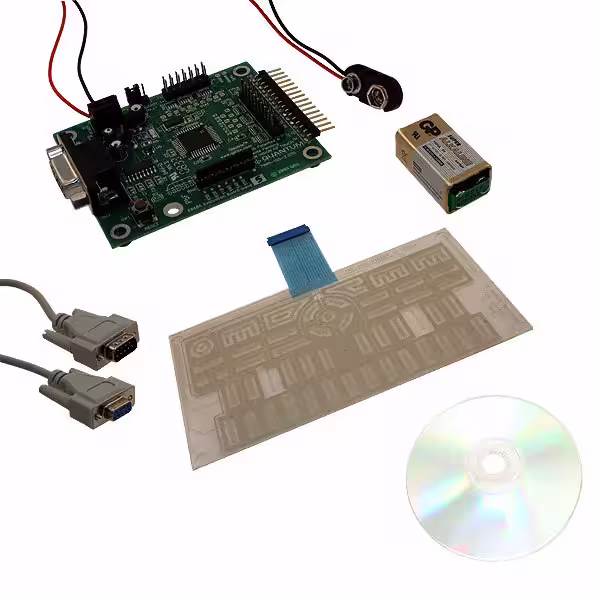

E6486BOARD EVAL QT60486-AS QMATRIX |
0 |
|
Datasheet | Quantum, QMatrix™ | Box | Obsolete | Touch, Capacitive | 32 / 48 Buttons/Keys | RS-232 | - | 4.75V ~ 5.25V | No | Board(s) | QT60326, QT60486 |
|
MCP6SX2DM-PCTLPDBOARD DAUGHTER PICTAIL MCP6SX2 |
0 |
|
Datasheet | PICtail™ | Bulk | Obsolete | Light, Current Output | - | Analog | 850nm | 2.5V ~ 5.5V | No | Board(s) | MCP6001, MCP6S22, MCP6S92 |
|
TMP100EVMEVALUATION MODULE FOR TMP100 |
0 |
|
Datasheet | - | Box | Obsolete | Temperature | -55°C ~ 125°C | I2C, SMBus | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | TMP100 |
|
|
TMP122EVMEVALUATION MODULE FOR TMP122 |
0 |
|
Datasheet | - | Box | Obsolete | Temperature | -55°C ~ 150°C | SPI | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | TMP122 |
|
CY3220-SLIDERKIT DEMO PSOC CAPSENSE SLIDE |
0 |
|
- |
PSOC™ CAPSENSE™ | Bulk | Obsolete | Touch, Capacitive | - | - | - | - | Yes, MCU, 8-Bit | Board(s), Power Supply | CY8C21234, CY8C21334, CY8C21434, CY8C24794, CY8C21634, CY8C21534 |
|
F350-COMPASS-RDKIT REFERENCE DESIGN DGTL COMPSS |
0 |
|
Datasheet | DSiT™ | - | Obsolete | Magnetic, Digital Compass | - | USB | - | - | Yes, MCU, 8-Bit | Board(s), Cable(s) | C8051F350 |
|
|
MCP9800DM-DLBOARD DEMO FOR MCP9800 |
0 |
|
Datasheet | - | Bulk | Active | Temperature | -55°C ~ 125°C | I2C, SMBus | ±0.5°C | 2.7V ~ 5.5V | Yes, MCU, 8-Bit | Board(s) | MCP9800 |
|
ADIS16003/PCBZBOARD EVALUATION ADIS16003 |
0 |
|
Datasheet | iSensor™ | Box | Obsolete | Accelerometer, 2 Axis | ±1.7g | Serial, SPI | 820LSB/g | 3V ~ 5.25V | No | Board(s) | ADIS16003 |
|
TMPSNS-RTD1BOARD EVAL PT100 RTD TEMP SENSOR |
0 |
|
Datasheet | - | Bulk | Active | Temperature | - | USB | - | - | Yes, MCU, 8-Bit | Board(s), Cable(s) | MCP3301, MCP6S26, PIC18F2550 |
|
|
HDJD-JD05KIT DEV RGB COLOR SENSOR 20-QFN |
0 |
|
Datasheet | - | Bulk | Obsolete | Light, Color Sensor | RGB | 2-Wire Serial | - | 2.5V ~ 3.6V | No | Board(s), Cable(s), Power Supply | ADJD-S313-QR999 |
