Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-IFS012V12EVAL DAUGHTER STTS424E02 8-TDFN |
2 |
|
- |
- | Box | Obsolete | Temperature | -40°C ~ 125°C | I2C, Serial | ±1°C | 2.7V ~ 3.6V | No | Board(s) | STTS424E02BDN3F |
|
STEVAL-IFS012V11EVAL DAUGHTER STCN75 8-TSSOP |
3 |
|
- |
- | Box | Obsolete | Temperature | -55°C ~ 125°C | I2C, Serial | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | STCN75DS2F |
|
STEVAL-IFS012V2EVAL DAUGHTER STTS75 8-TSSOP |
2 |
|
- |
- | Box | Obsolete | Temperature | -55°C ~ 125°C | I2C, Serial | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | STTS75 |
|
STEVAL-IFS012V4EVAL DAUGHTER STLM20 SOT-323 |
1 |
|
- |
- | Box | Obsolete | Temperature | -55°C ~ 130°C | I2C, Serial | ±1.5°C | 2.4V ~ 5.5V | No | Board(s) | STLM20W87F |
|
STEVAL-IFS012V7EVAL DAUGHTER STDS75 8-TSSOP |
1 |
|
- |
- | Box | Obsolete | Temperature | -55°C ~ 125°C | I2C, Serial | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | STDS75DS2F |
|
STEVAL-IFS012V8EVAL DAUGHTER STLM75 8-SOIC |
0 |
|
- |
- | Box | Obsolete | Temperature | -55°C ~ 125°C | I2C, Serial | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | STLM75M2F |
|
STEVAL-IFS012V9MEMS TEMP SENSOR CARD |
0 |
|
- |
- | Bulk | Obsolete | Temperature | -55°C ~ 125°C | I2C, Serial | ±0.5°C | 2.7V ~ 5.5V | No | Board(s) | STLM75DS2F |
|
KX224-I2C-EVK-001EVAL BOARD FOR KX224-1053 |
0 |
|
Datasheet | - | Bulk | Obsolete | Accelerometer, 3 Axis | ±8g, 16g, 32g | I2C, Serial, SPI | - | 1.71V ~ 3.6V | - | Board(s) | KX224-1053 |
|
MCP9800DM-PCTLBOARD DEMO FOR PICTAIL MCP9800 |
0 |
|
Datasheet | PICtail™ | Bulk | Obsolete | Temperature | -55°C ~ 125°C | I2C, SMBus | ±0.5°C | 2.7V ~ 5.5V | Yes, MCU, 8-Bit | Board(s) | MCP9800 |
|
STEVAL-MKI009V1BOARD ADAPTER 20DIP LIS3LV02DL |
0 |
|
Datasheet | MEMS | Box | Obsolete | Accelerometer, 3 Axis | ±2g, 6g | I2C, Serial, SPI | 340 or 1024LSb/g | 2.16V ~ 3.6V | No | Board(s) | LIS3LV02DL |
|
KITMPL115A1SPIKIT EVALUATION FOR PL115A1SP1 |
0 |
|
Datasheet | - | Box | Obsolete | Pressure | 50 ~ 115 kPa | SPI | - | 2.375V ~ 5.5V | No | Board(s) | PL115A1SP1 |
|
KITMPL115A2I2CKIT EVALUATION FOR PL115A2I2C |
0 |
|
Datasheet | - | Box | Obsolete | Pressure | 50 ~ 115 kPa | I2C | - | 2.375V ~ 5.5V | No | Board(s) | PL115A2I2C |
|
STEVAL-MKI083V1BOARD ADAPTER LPY450A2 DIL24 |
0 |
|
Datasheet | MEMS | Box | Obsolete | Gyroscope, 2 Axis | ±1500°/sec | Analog | 0.67mV/°/s | 5V, USB | Yes, MCU, 8-Bit | Board(s) | LPY4150AL |
|

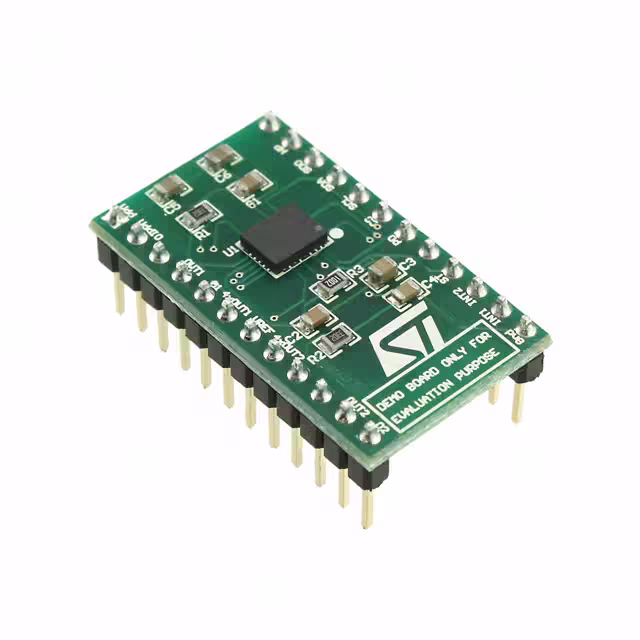

STEVAL-MKI099V1BOARD ADAPTER LPR403AL DIL24 |
0 |
|
Datasheet | MEMS | Box | Obsolete | Gyroscope, 2 Axis | ±30°/sec | Analog | 33.3mV/°/s | - | Yes, MCU, 8-Bit | Board(s) | LPR403AL |
|

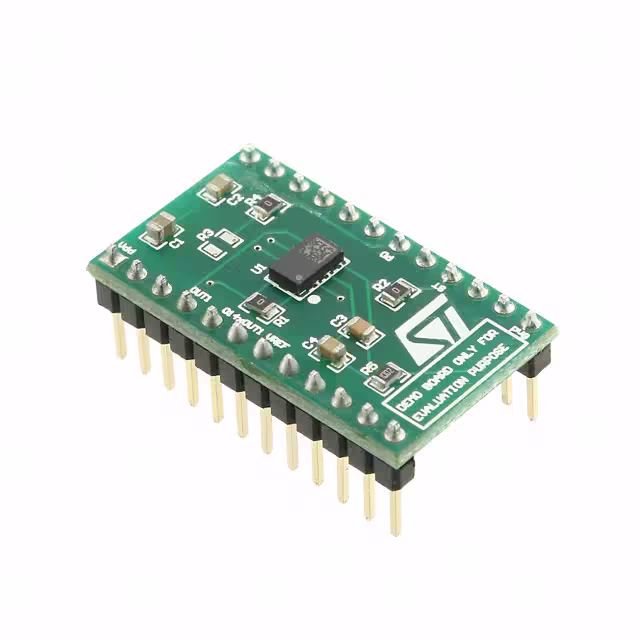

STEVAL-MKI076V1ADAPTER BOARD LY3200ALH DIL24 |
0 |
|
Datasheet | MEMS | Bulk | Obsolete | Gyroscope, 1 Axis | ±2000°/sec | Analog | 0.67mV/°/s | - | No | Board(s) | LY3200ALH |
|
STEVAL-MKI064V1BOARD ADAPTER LSM303DLH DIL24 |
0 |
|
Datasheet | MEMS | Bulk | Obsolete | Accelerometer, Magnetometer | ±2g, 4g, 8g, ±1.3 ~ 8.1 gauss | I2C, Serial | 1 ~ 3.9mg/Digit, ±0.01%/°C | - | No | Board(s) | LSM303DLH |
|
STEVAL-MKI098V1BOARD ADAPTER LPR410AL FOR DIL24 |
0 |
|
Datasheet | MEMS | Box | Obsolete | Gyroscope, 2 Axis | ±100°/sec | Analog | 10mV/°/s | 2.7V ~ 3.6V | No | Board(s) | LPR410AL |
|
LM26EVAL-XPABOARD EVALUATION LM26CIM5-XPA |
0 |
|
Datasheet | - | Box | Obsolete | Thermostat | 105°C Trip Point | Analog | ±3°C | 2.7V ~ 5.5V | No | Board(s) | LM26CIM5-XPA |
|
|
DEMOMMA8491DEMO BOARD FOR MMA8491 |
0 |
|
Datasheet | - | Box | Not For New Designs | Accelerometer, 3 Axis | ±8G | I2C | 1024 count/g | 1.95V ~ 3.6V | - | Board(s) | MMA8491Q |
|
BRKT-STBC-AGM04FRDM BOARD FORMMA8652/ MAG3110 |
0 |
|
Datasheet | - | Box | Active | Accelerometer, Gyroscope, Magnetometer, 3 Axis | - | - | - | - | - | Board(s) | FXAS21002C, MAG3110, MMA8652FC |
