Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

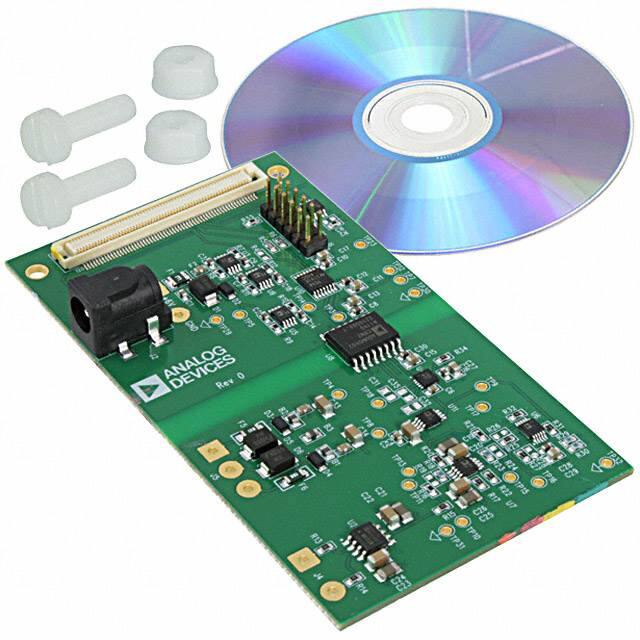

EVAL-CN0240-SDPZBOARD EVAL ISOLATED CURR SENSOR |
0 |
|
- |
Circuits from the Lab™ | Bulk | Active | Current Sensor | - | - | - | - | No | Board(s) | AD629, AD7170, AD8475, AD8622, ADuM5402 |
|
EVAL-ADXRS800Z-EYEVAL BOARD FOR ADXRS800Z |
0 |
|
Datasheet | - | Box | Active | Gyroscope, 1 Axis | ±300°/sec | SPI | - | 3.3V ~ 5V | - | Board(s) | ADXRS800 |
|

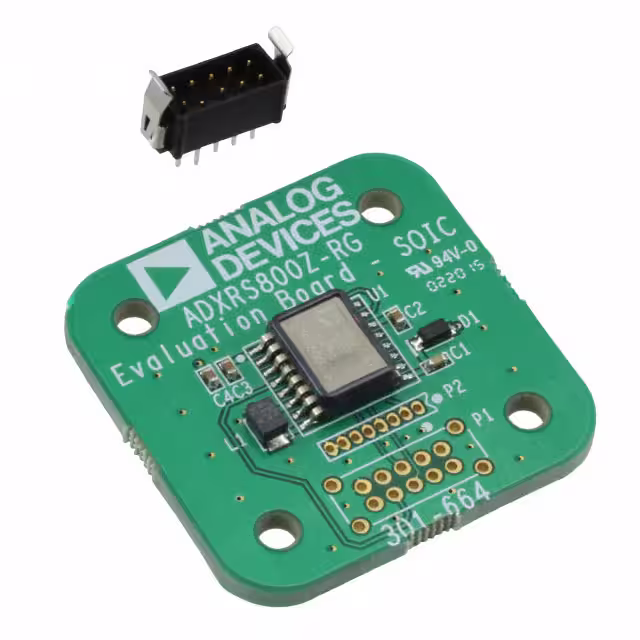

EVAL-ADXRS800Z-RGEVAL BOARD FOR ADXRS800Z |
0 |
|
Datasheet | - | Box | Active | Gyroscope, 1 Axis | ±300°/sec | SPI | - | 3.3V ~ 5V | - | Board(s) | ADXRS800 |
|

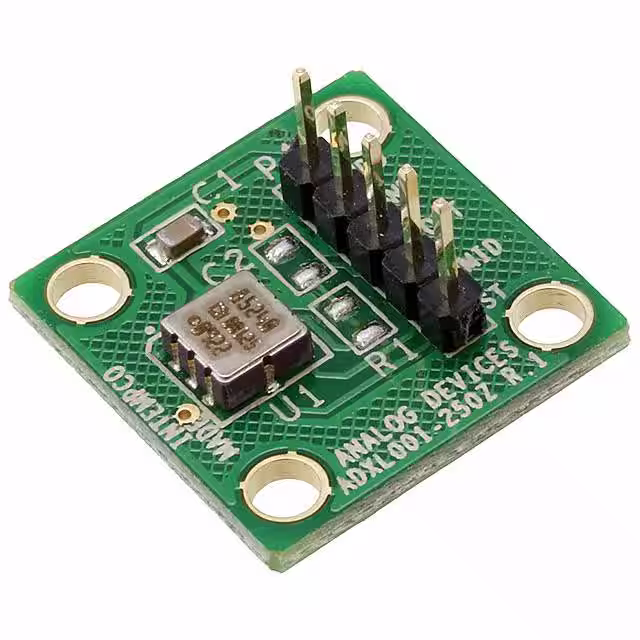

EVAL-ADXL001-250ZBOARD EVAL ADXL001-250 |
0 |
|
Datasheet | iMEMS® | Box | Obsolete | Accelerometer, 1 Axis | ±250g | Analog | 6.7 mV/g | 3.135V ~ 6V | No | Board(s) | ADXL001-250 |
|

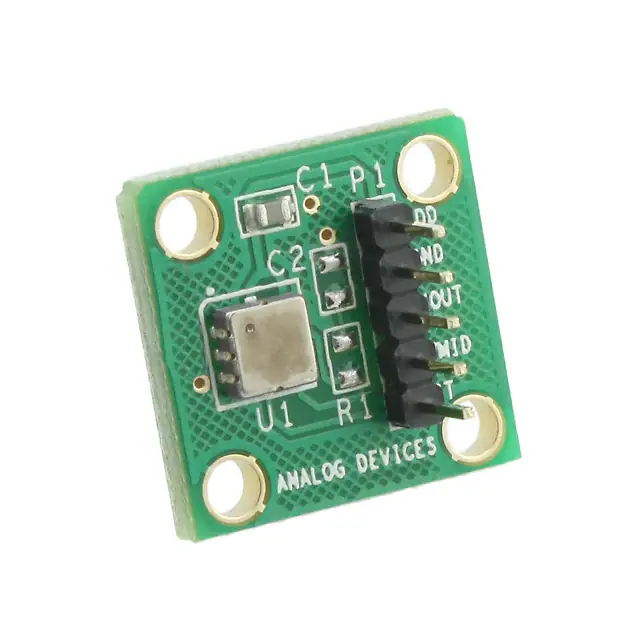

EVAL-ADXL001-500ZBOARD EVAL ADXL001-500 |
0 |
|
Datasheet | iMEMS® | Box | Obsolete | Accelerometer, 1 Axis | ±500g | Analog | 3.3mV/°/s | 3.135V ~ 6V | No | Board(s) | ADXL001-500 |
|

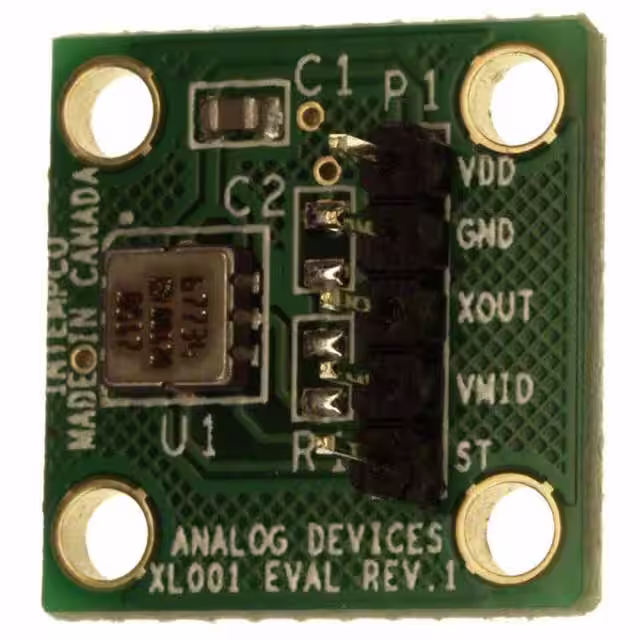

EVAL-ADXL001-70ZBOARD EVAL ADXL001-70 |
0 |
|
Datasheet | iMEMS® | Box | Obsolete | Accelerometer, 1 Axis | ±70g | Analog | 24.2 mV/g | 3.135V ~ 6V | No | Board(s) | ADXL001-70 |
|
ADIS16060/PCBZBOARD EVAL FOR ADIS16060 |
0 |
|
Datasheet | iSensor™ | Box | Obsolete | Gyroscope, 1 Axis | ±80°/sec | Serial, SPI | - | 4.75V ~ 5.25V | No | Board(s) | ADIS16060 |
|
ADA4571R-EBZEVAL BOARD FOR ADA4571R |
0 |
|
Datasheet | - | Box | Obsolete | Magnetic, AMR (Anisotropic Magnetoresistive) | - | USB | - | 6V ~ 12V | - | Board(s) | ADA4571 |
|

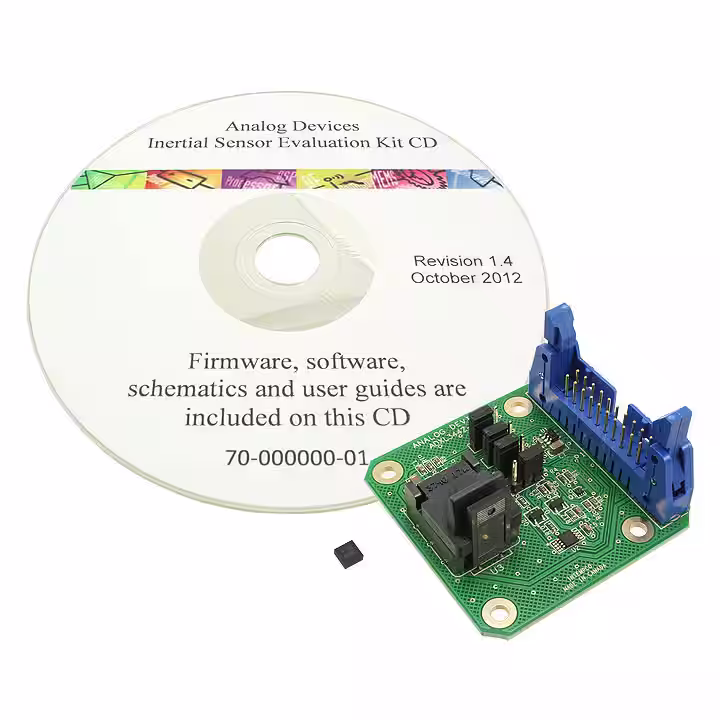

EVAL-ADXL344Z-SBOARD SATELLITE FOR ADXL344Z |
0 |
|
Datasheet | - | Box | Active | Accelerometer, 3 Axis | ±2g, 4g, 8g, 16g | I2C, Serial, SPI | 256LSB/g, 128LSB/g, 64LSB/g, 32LSB/g | 1.7V ~ 2.75V | No | Board(s) | ADXL344 |
|

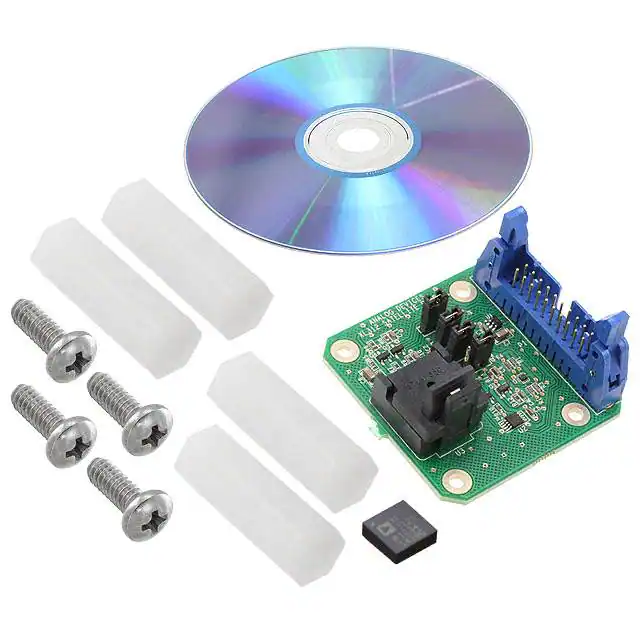

EVAL-ADXL312Z-SBOARD EVAL FOR ADXL312Z-S |
0 |
|
Datasheet | - | Box | Obsolete | Accelerometer, 3 Axis | ±1.5g, 3g, 6g, 12g | I2C, Serial, SPI | 345LSB/g, 172LSB/g, 86LSB/g, 43LSB/g | 2V ~ 3.6V | - | Board(s) | ADXL312 |
