RF, RFID, Wireless Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Frequency | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

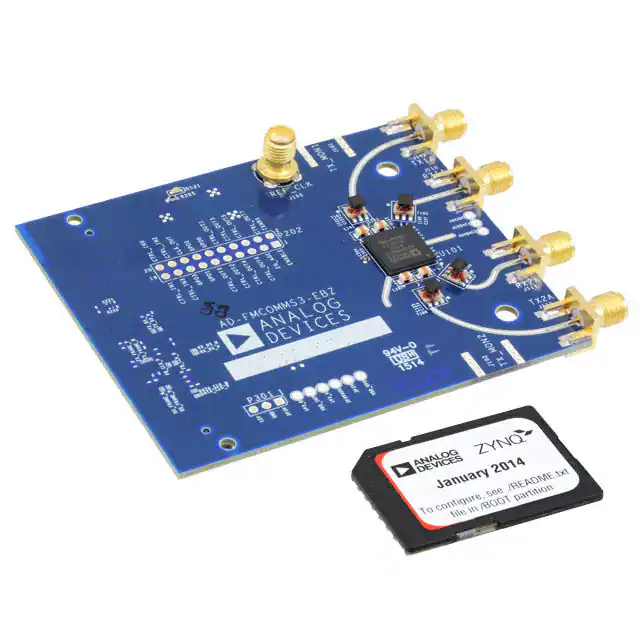

AD-FMCOMMS3-EBZEVAL BOARD SOFTWARE DEFINE RADIO |
6 |
|
Datasheet | - | Box | Active | Transceiver | 70MHz ~ 6GHz | Board(s) | AD9361 |
|
DA14580PRODTLKTDA14580 16SITE PROD LINE TOOLKIT |
4 |
|
Datasheet | SmartBond™ | Bulk | Active | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) | 2.4GHz | Board(s) | DA14580 |
|
EV1HMC637BPM5EVALUATION BOARD |
3 |
|
Datasheet | - | Box | Active | Amplifier | 0Hz ~ 7.5GHz | Board(s) | HMC637BPM5E |
|

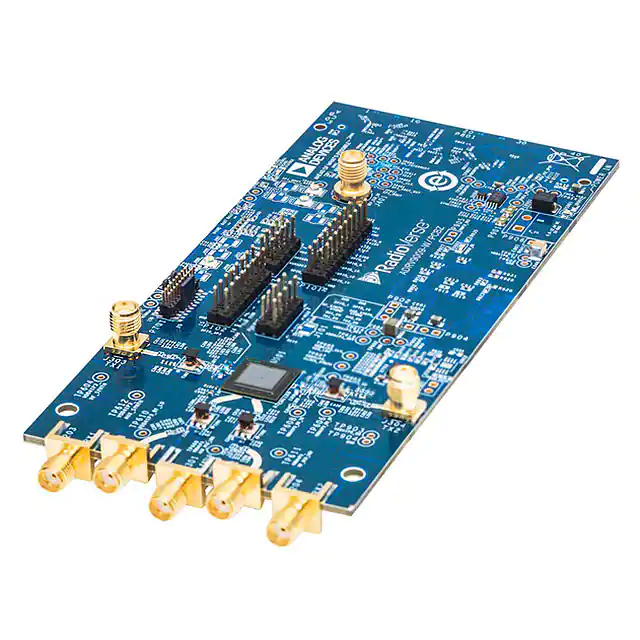

ADRV9008-1W/PCBZDUAL RF RX EVALUATION BOARD |
7 |
|
Datasheet | - | Box | Active | Receiver | 75MHz ~ 6GHz | Board(s) | ADRV9008-1 |
|

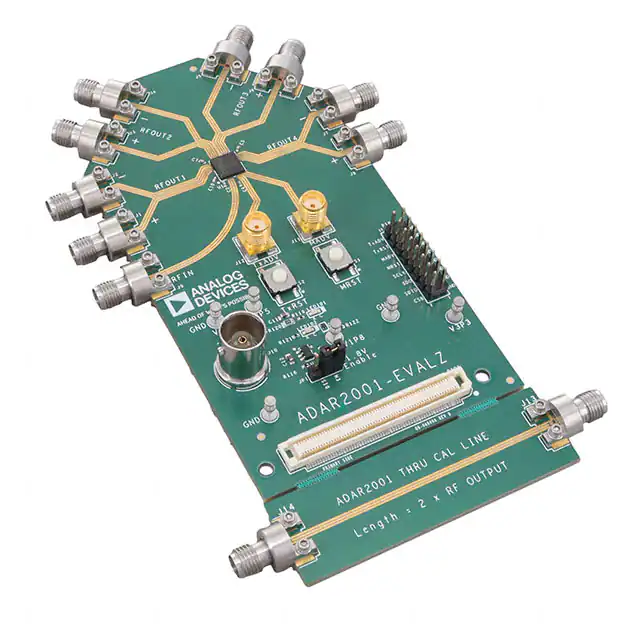

ADAR2001-EVALZADAR2001 EVAL BOARD |
3 |
|
Datasheet | - | Bulk | Active | Transmitter | 10GHz ~ 40GHz | Board(s) | ADAR2001 |
|

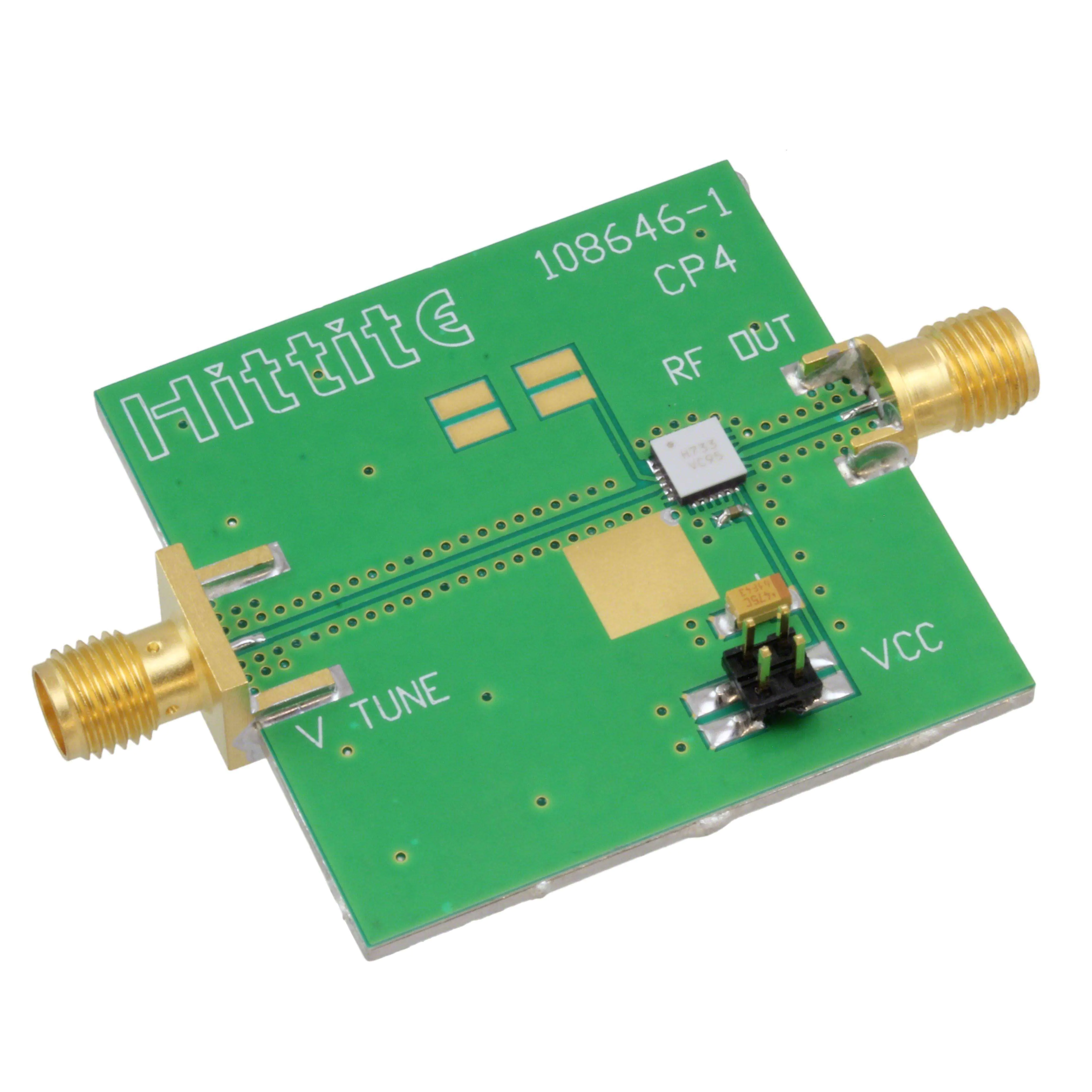

108648-HMC733LC4BEVAL BOARD HMC733LC4B |
1 |
|
Datasheet | - | Box | Active | Voltage Controlled Oscillator (VCO) | 10GHz ~ 20GHz | Board(s) | HMC733LC4B |
|

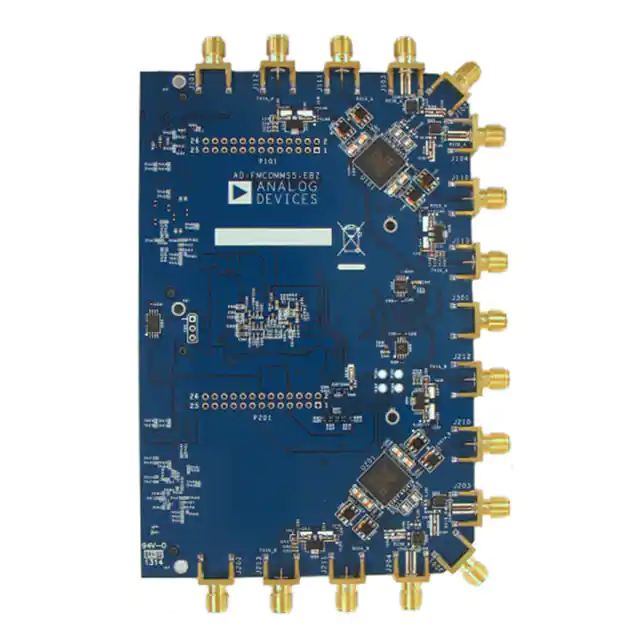

AD-FMCOMMS5-EBZEVAL BOARD SOFTWARE DEFINE RADIO |
18 |
|
Datasheet | - | Box | Active | Transceiver | 70MHz ~ 6GHz | Board(s) | AD9361 |
|
|
108648-HMC6380LC4BEVALUATION PCB ASSEMBLY |
3 |
|
Datasheet | - | Bulk | Active | Amplifier | 8GHz ~ 16GHz | Board(s) | HMC6380LC4B |
|

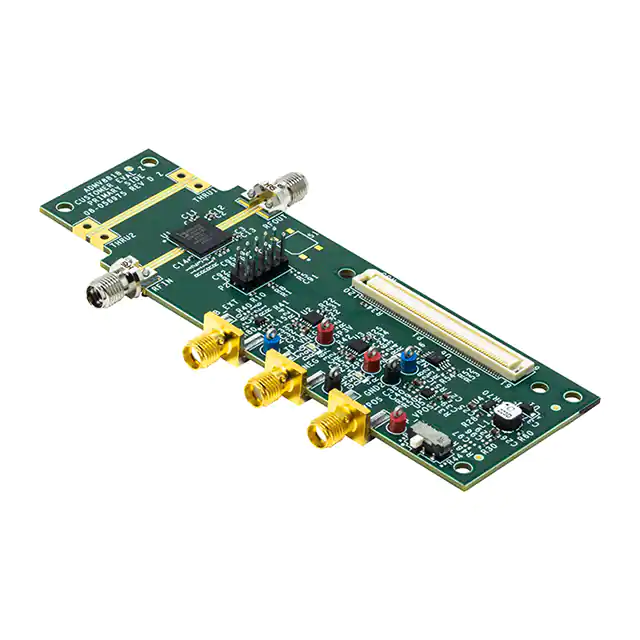

ADMV8818-EVALZADMV8818 EVAL BOARD |
10 |
|
Datasheet | - | Bulk | Active | Tunable Filter | 2GHz ~ 18GHz | Board(s) | ADMV8818 |
|
UXN40M7KEUXN40M7K EVAL BOARD |
3 |
|
Datasheet | - | Bulk | Active | Frequency Synthesizer | 500MHz ~ 40GHz | Board(s) | UXN40M7K |
|

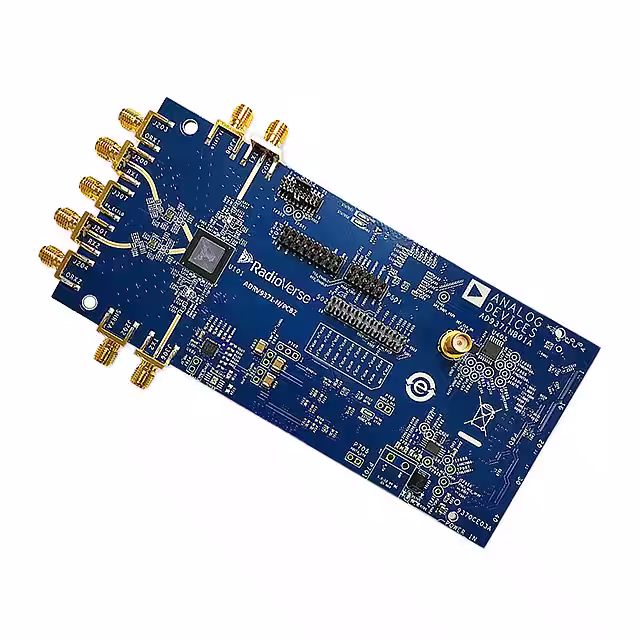

ADRV9371-W/PCBZWIDE TUNING RANGE 300MHZ-6HGZ, O |
3 |
|
Datasheet | - | Box | Active | Transceiver | 300MHz ~ 6GHz | Board(s) | AD9371, AD9528, ADP5054 |
|

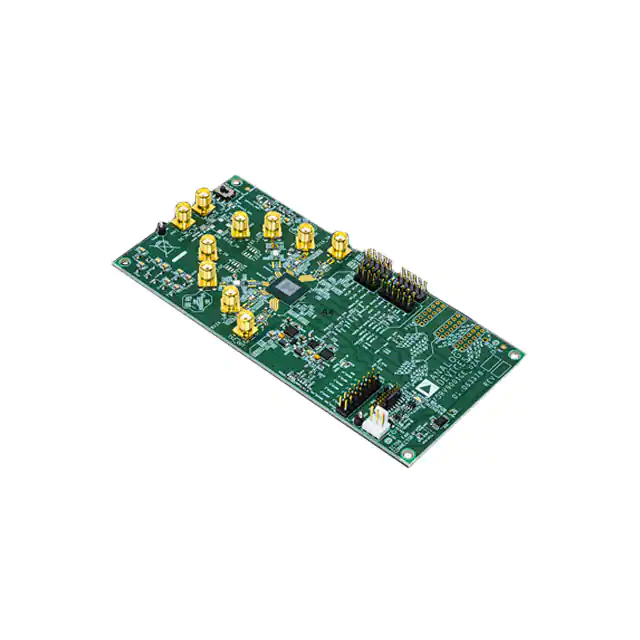

ADRV9002NP/W2/PCBZEVAL BOARD ADRV9002 3GHZ-6GHZ |
4 |
|
Datasheet | - | Bulk | Active | Transceiver | 3GHz ~ 6GHz | Board(s) | ADRV9002 |
|
|
ADRV9009-W/PCBZDUAL RF RX/TX/ORX EVALUATION BOA |
6 |
|
Datasheet | - | Box | Active | Transmitter, Receiver | 75MHz ~ 6GHz | Board(s) | ADRV9009 |
|

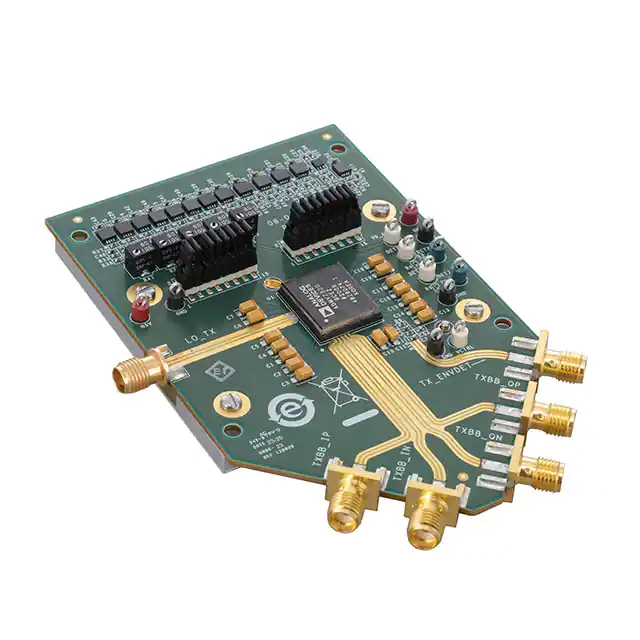

ADMV7320-EVALZEVAL BOARD 81-86GHZ UPCONVERTER |
2 |
|
Datasheet | - | Box | Active | Upconverter | 81GHz ~ 86GHz | Board(s) | ADMV7320 |
|
AFE7950EVMAFE7950 FOUR-TRANSMIT, SIX-RECEI |
11 |
|
Datasheet | - | Box | Active | Transceiver | - | Board(s), Cable(s) | AFE7950 |
|
AFE7900EVMAFE7900 4T4R+2FB EVAL BOARD |
10 |
|
Datasheet | - | Box | Active | Transmitter, Receiver | 5MHz ~ 7.4GHz | Board(s), Cable(s) | AFE7900 |
|
ADRV2CRR-FMCADRV9009 RFSOM CARRIER BOARD |
3 |
|
Datasheet | - | Box | Active | Transceiver | 75MHz ~ 6GHz | Board(s) | ADRV9009 |
|
|
EVAL-CN0566-RPIZ10 GHZ PHASED ARRAY SYSTEM |
10 |
|
- |
Circuits from the Lab™ | Box | Active | Beamformer | 10GHz ~ 10.5GHz | Board(s) | ADALM-Pluto |
|

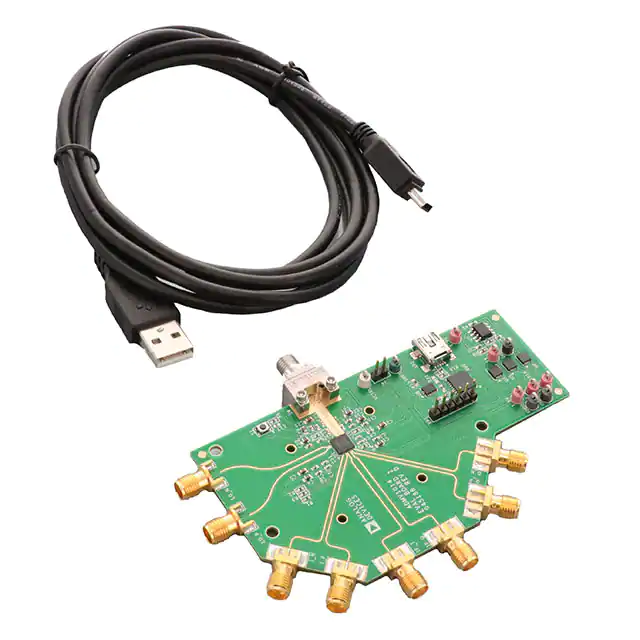

ADMV1014-EVALZEVAL BRD DOWNCONVERTER ADMV1014 |
5 |
|
Datasheet | - | Box | Active | Downconverter | 24.5GHz ~ 43.5GHz | Board(s) | ADMV1014 |
|
ADMV1013-EVALZADMV1013 EVAL BOARD |
12 |
|
Datasheet | - | Box | Active | Upconverter | 24GHz ~ 44GHz | Board(s) | ADMV1013 |
