LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

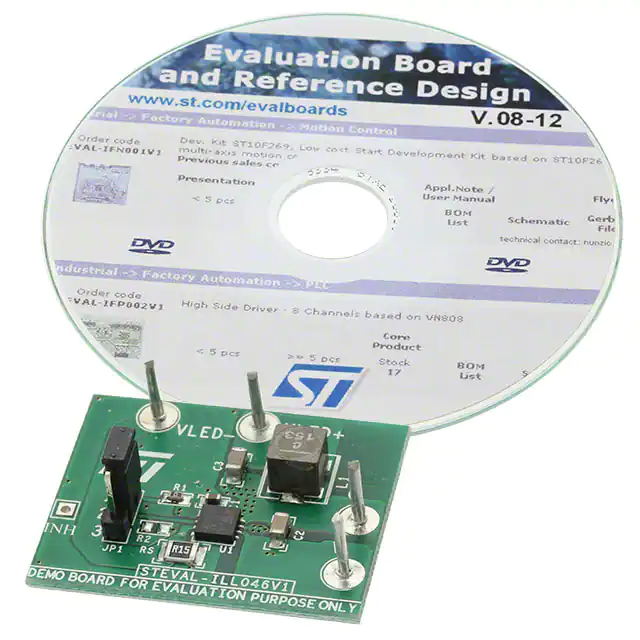

STEVAL-ILL046V1EVAL BOARD FOR ST1CC40 |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | - | 3V ~ 18V | Board(s) | ST1CC40 |
|

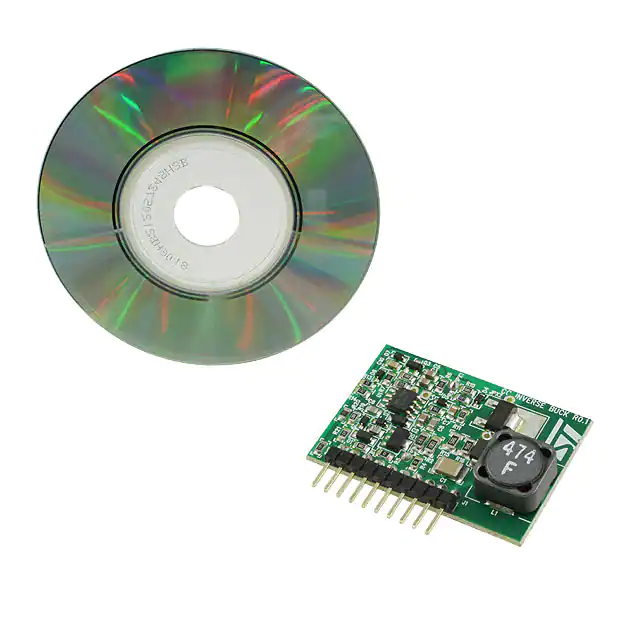

EVL6562A-LEDEVAL BOARD FOR L6562A |
1 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | - | Dimmable | 48V | Board(s) | L6562A |
|

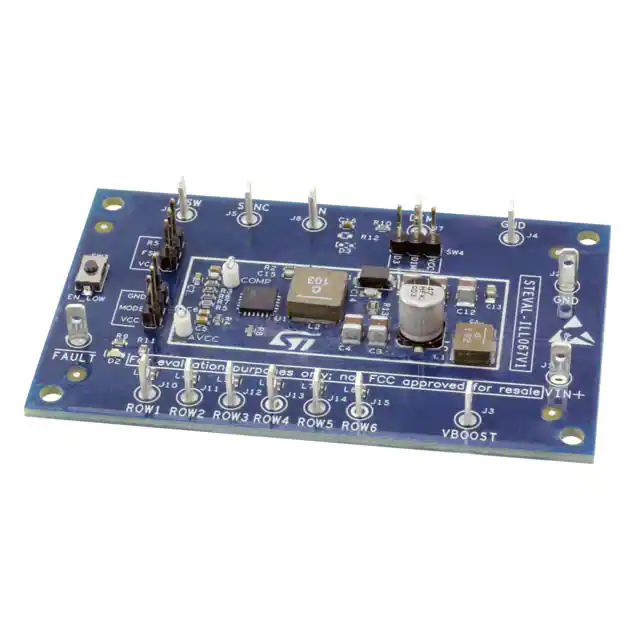

STEVAL-ILL067V1EVAL BOARD FOR ALED7707 |
1 |
|
Datasheet | - | Box | Active | 70mA | 6 Non-Isolated Outputs | - | Dimmable | 6V ~ 32V | Board(s) | ALED7707 |
|

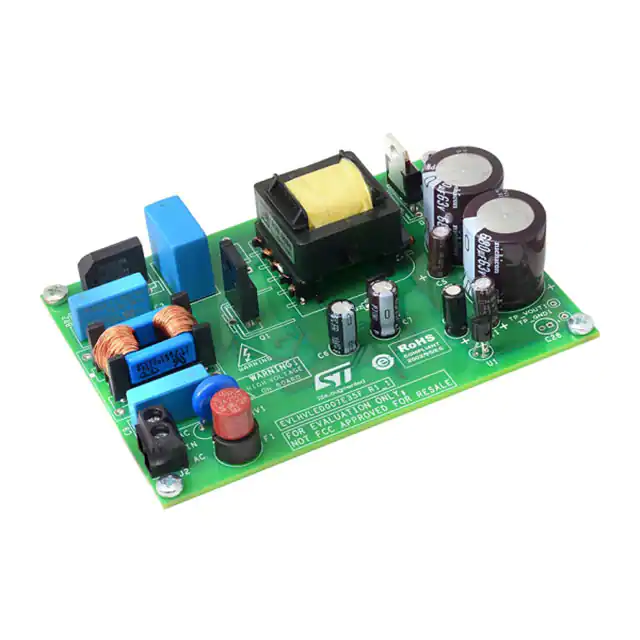

EVLHVLED007W35FEVAL BOARD FOR HVLED007 |
1 |
|
Datasheet | - | Bulk | Active | 730mA | 1 Isolated Output | 48V | - | 90 ~ 265 VAC | Board(s) | HVLED007 |
|
EVALHVLED815W15EVAL BOARD FOR HVLED815PF |
0 |
|
Datasheet | - | Box | Active | - | 1 Isolated Output | - | - | 11.5V ~ 23V | Board(s) | HVLED815PF |
|
EV-L99LDLH32GENEVAL BOARD FOR L99LDLH32 |
0 |
|
Datasheet | - | Bulk | Active | 15mA | 32 Non-Isolated Outputs | 35V | Dimmable | 5.5V ~ 40V | Board(s) | L99LDLH32 |
|

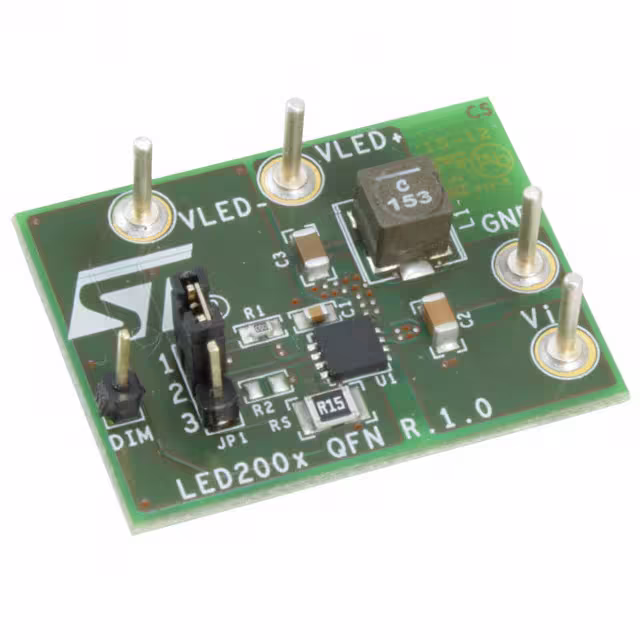

EVALED2000PEVAL BOARD FOR LED2000 |
0 |
|
Datasheet | - | Box | Obsolete | 3A | 1 Non-Isolated Output | - | Dimmable | 3V ~ 18V | Board(s) | LED2000 |
|

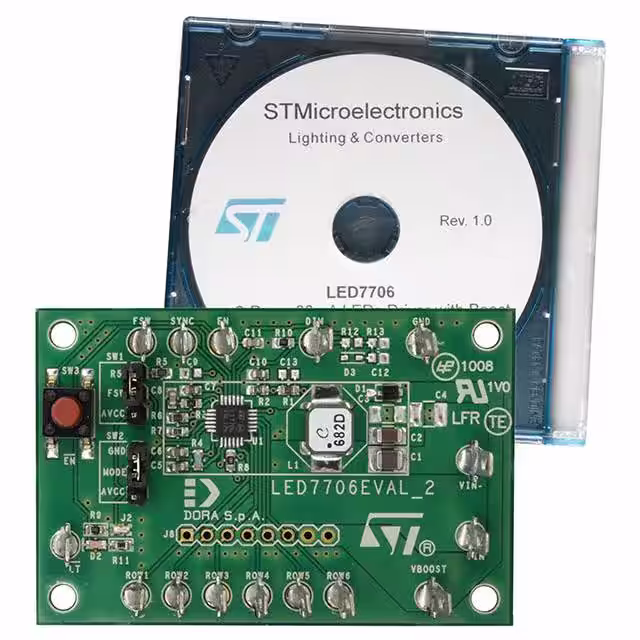

EVALED7706EVALUATION BOARD FOR LED7706 |
0 |
|
Datasheet | - | Box | Obsolete | 30mA | 6 Non-Isolated Outputs | 36V | Dimmable | 4.5V ~ 36V | Board(s) | LED7706 |
|
VIPER12-LED-EVEVAL BOARD FOR VIPER12A |
0 |
|
Datasheet | VIPER™ | Box | Obsolete | 1.05A, 700mA or 350mA | 1 Isolated Output | 14V | - | 90 ~ 264 VAC | Board(s) | VIPer12A |
|

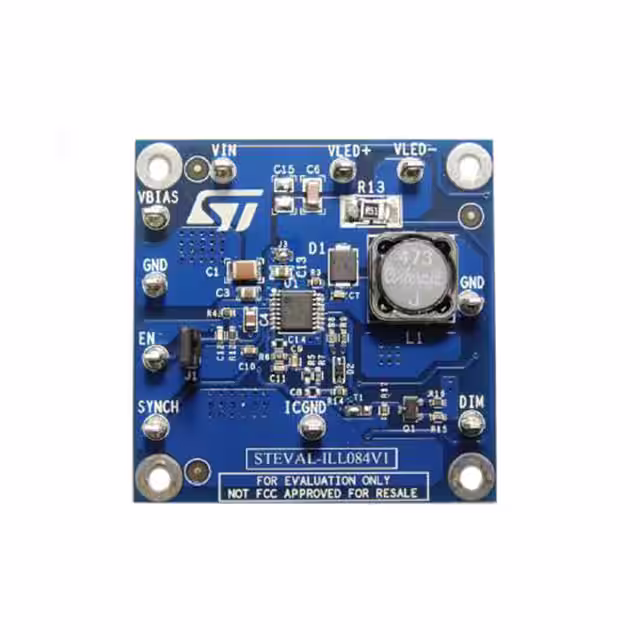

STEVAL-ILL084V1EVAL BOARD FOR LED6000 |
1 |
|
Datasheet | - | Bulk | Active | 500mA | 1 Non-Isolated Output | - | Dimmable | 18V ~ 36V | Board(s) | LED6000 |
