Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

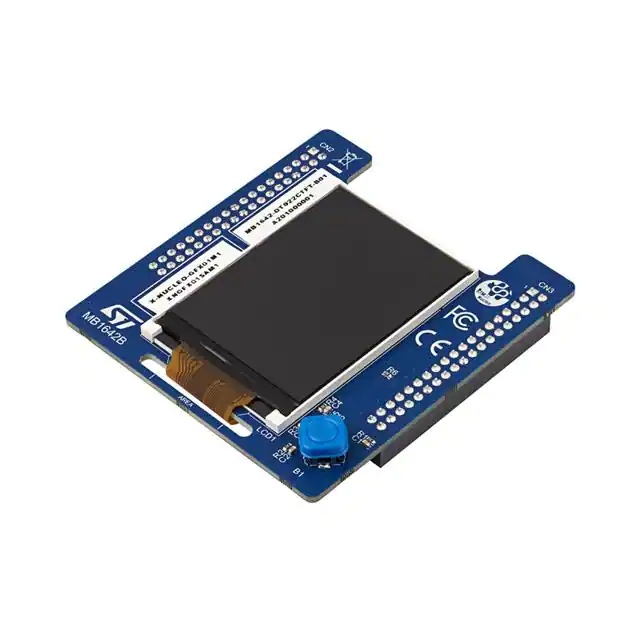

X-NUCLEO-GFX01M2NUCLEO-64 2.2" SPI QVGA LCD BRD |
112 |
|
Datasheet | - | Bulk | Active | Nucleo | Display | LCD 2.2" | STM32 | Board(s) |
|
B-CAMS-OMVFLEXIBLE CAMERA ADAPTER BOARD |
123 |
|
Datasheet | - | Bulk | Active | Discovery | Sensor | Camera | OV5640 | Board(s) |
|

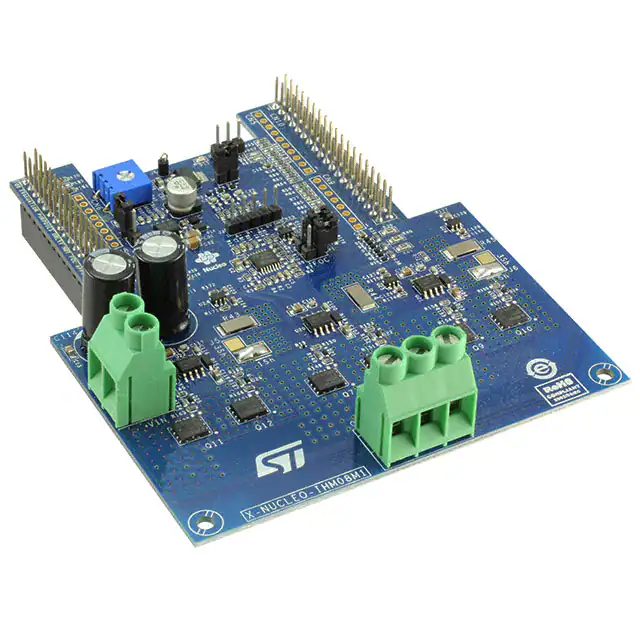

X-NUCLEO-IHM08M1NUCLEO BOARD STL220N6F7 DRIVER |
134 |
|
Datasheet | - | Bulk | Active | Nucleo | Power Management | Motor Controller/Driver | STL220N6F7 | Board(s) |
|
B-WL5M-SUBG1STMOD+ BRD STM32WL5MOC STM32WL55 |
95 |
|
Datasheet | STM32WL | Bulk | Active | - | RF | LoRa | STM32WL5MOC, STM32WL55 | Board(s) |
|

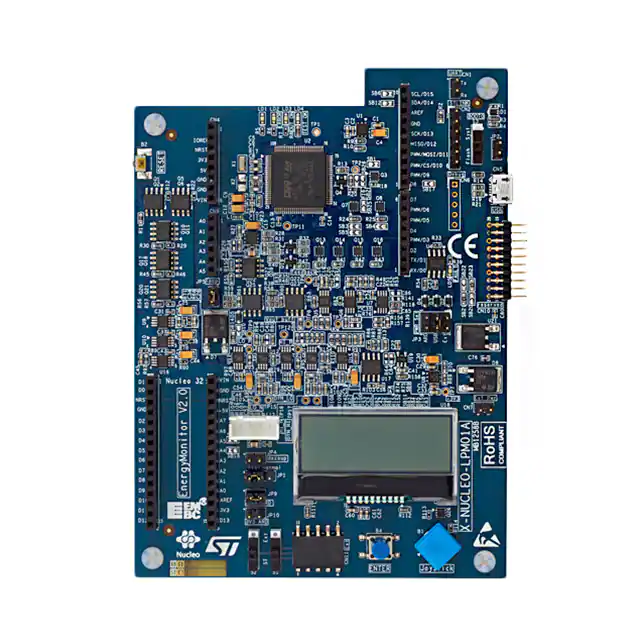

X-NUCLEO-LPM01ASTM32 NUCLEO EXPANSION BOARD POW |
60 |
|
Datasheet | STM32L4 | Bulk | Active | Nucleo | Power Management | Power Supply | STM32L496VGT6 | Board(s) |
|

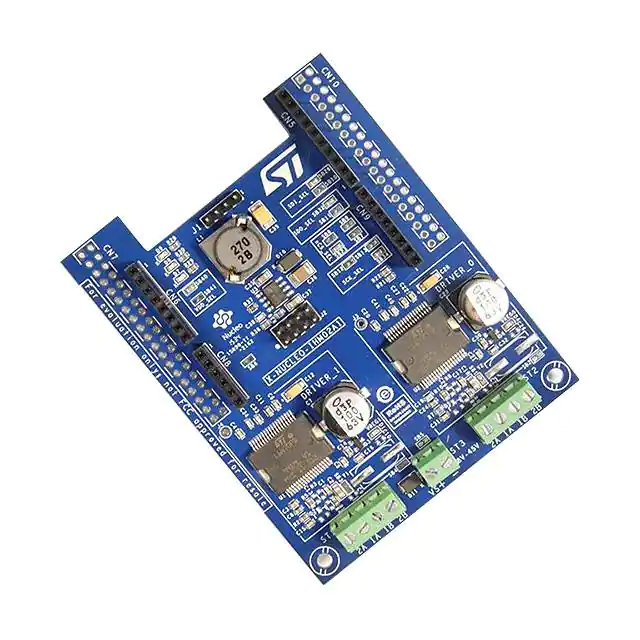

X-NUCLEO-IHM02A1NUCLEO BOARD L6470 MOTOR DRIVER |
200 |
|
Datasheet | dSPIN™ | Bulk | Active | Nucleo | Power Management | Motor Controller/Driver | L6470 | Board(s) |
|
STEVAL-MKI137V1DIL24 ADAPTER BOARD LIS3MDL |
141 |
|
Datasheet | - | Bulk | Active | Professional MEMS Tool | Sensor | Magnetometer | LIS3MDL | Board(s) |
|
|
STEVAL-MKI240KADIL24 ADAPTER BOARD LSM6DSV32X |
129 |
|
- |
- | Bulk | Active | Professional MEMS Tool | Sensor | Accelerometer, Gyroscope | LSM6DSV32X | Board(s) |
|
|
STEVAL-PDETECT1PRESENCE DETECTION ADD-ON FOR ST |
77 |
|
- |
- | Bulk | Active | - | Sensor | 3D Time-of-Flight (ToF), Ambient Light, Color, Infrared (IR) | STHS34PF80, VD6283TX, VL53L8CX | Board(s) |
|
|
X-NUCLEO-OUT07A1INDUSTRIAL DIGITAL OUTPUT EXPANS |
30 |
|
Datasheet | STM32 | Bulk | Active | Nucleo | Power Management | Power Distribution Switch (Load Switch) | IPS4260LM | Board(s) |
