Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

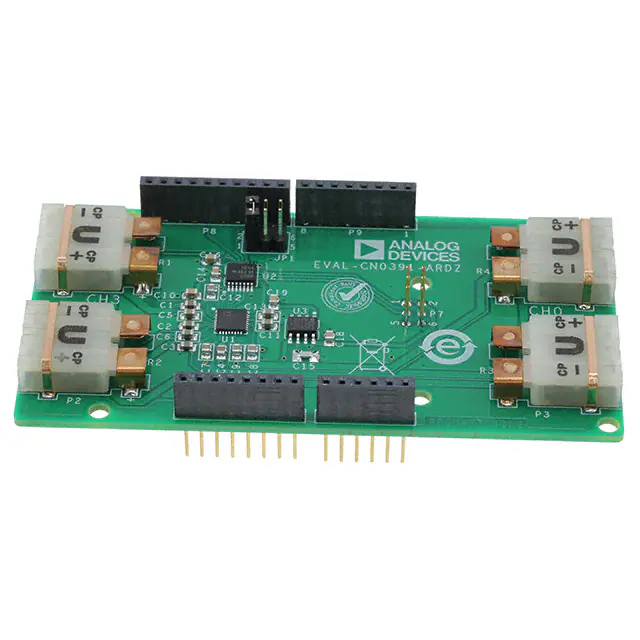

EVAL-CN0391-ARDZEVAL BOARD THERMOCOUPLE SYSTEM |
5 |
|
- |
Circuits from the Lab™ | Box | Active | Arduino | Sensor | Temperature | AD7124-8, ADP7118 | Board(s) |
|
EVAL-CN0554-RPIZMIXED SIGNAL RASPBERRY PI HAT |
6 |
|
- |
Circuits from the Lab™ | Box | Active | Raspberry Pi | Interface | Analog Input | AD7124-8 | Board(s) |
|

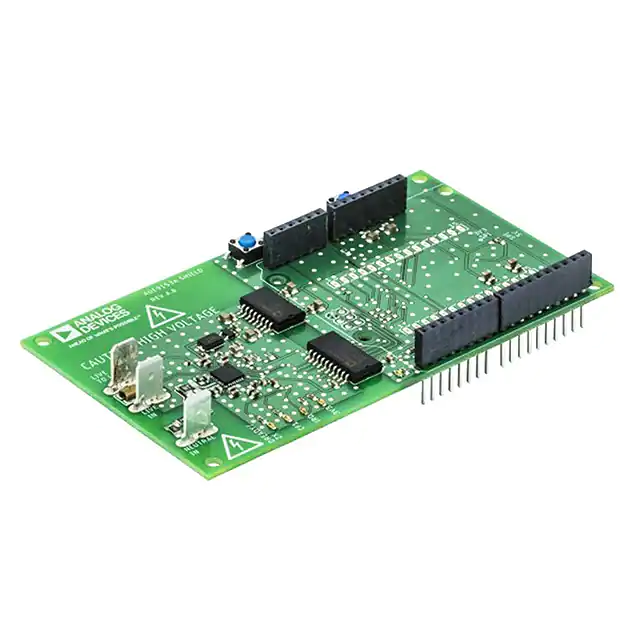

EV-ADE9153ASHIELDZADE9153A ARDUINO SHIELD EVALUATI |
6 |
|
Datasheet | - | Box | Active | Arduino | Power Management | Energy/Power Meter | ADE9153A | Board(s) |
|
|
EVAL-CN0565-ARDZSHIELD BOARD IMPEDANCE MEASURING |
4 |
|
Datasheet | Circuits from the Lab™ | Box | Active | Arduino | Data Acquisition | Electrical Impedance Tomography (EIT) | AD5940 | Board(s) |
|

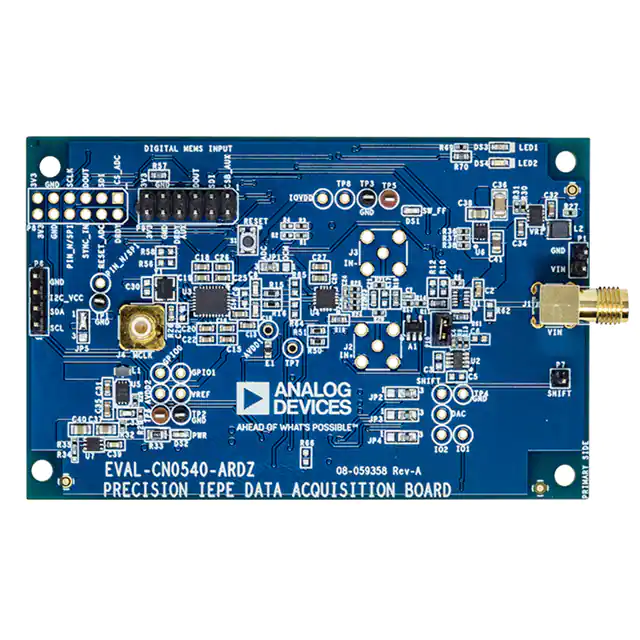

EVAL-CN0540-ARDZIEPE CBM DAQ BOARD |
4 |
|
Datasheet | Circuits from the Lab™ | Bulk | Active | Arduino | Data Acquisition | ADC/DAC Module | AD7768-1, LTC2606 | Board(s) |
|

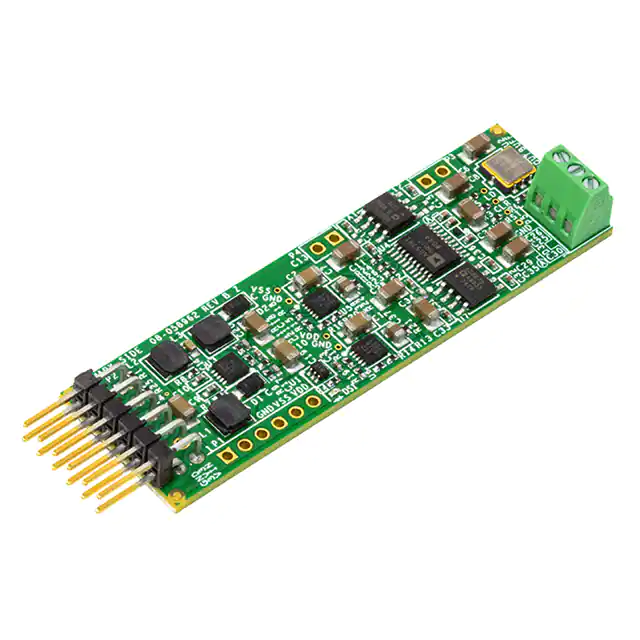

EVAL-CN0531-PMDZPMOD BOARD 20BIT DAC AD5791 |
4 |
|
- |
Circuits from the Lab™ | Bulk | Active | Pmod™ | Data Acquisition | Digital to Analog Converter (DAC) | AD5791 | Board(s) |
|
|
EVAL-CN0338-ARDZRTD/PT100 INPUT / ISO SPI OUTPUT |
2 |
|
Datasheet | Circuits from the Lab™ | Box | Active | Arduino | Sensor | Carbon Dioxide (CO2) | AD8629 | Board(s) |
|

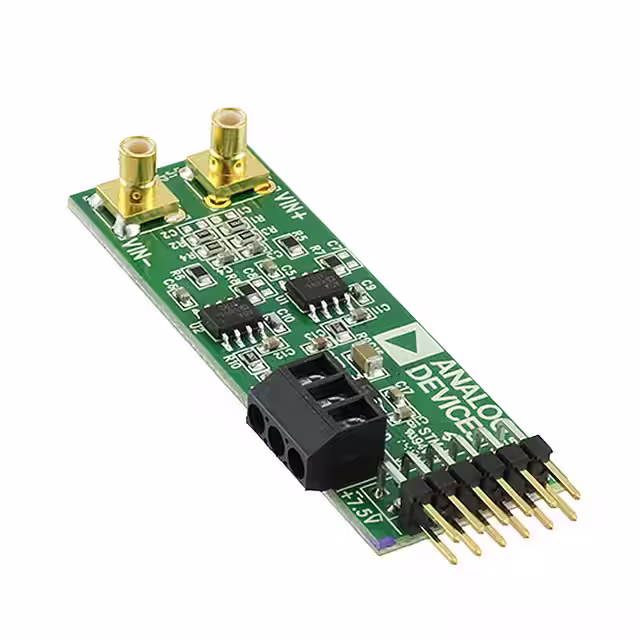

EVAL-AD7988-1-PMDZPMOD BRD 16BIT 100K ADC AD7988-1 |
3 |
|
Datasheet | PulSAR® | Box | Active | Pmod™ | Data Acquisition | Analog to Digital Converter (ADC) | AD7988-1 | Board(s) |
|

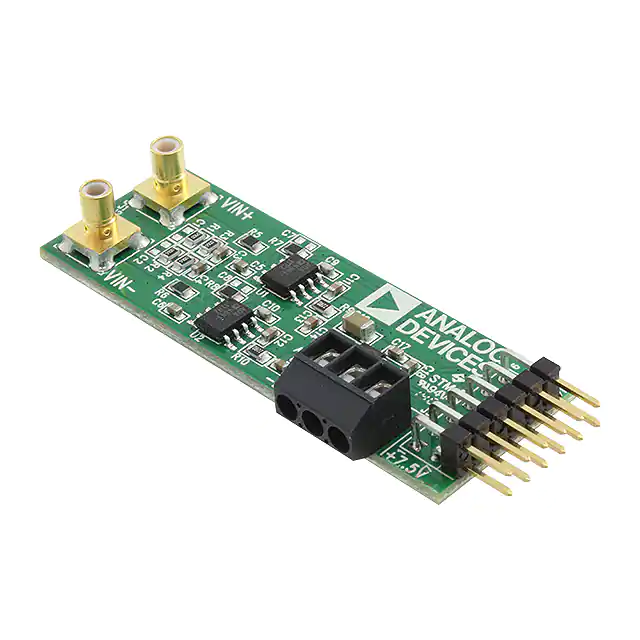

EVAL-AD7685-PMDZPMOD BOARD 16BIT 250K ADC AD7685 |
0 |
|
Datasheet | PulSAR® | Box | Active | Pmod™ | Data Acquisition | Analog to Digital Converter (ADC) | AD7685 | Board(s) |
|

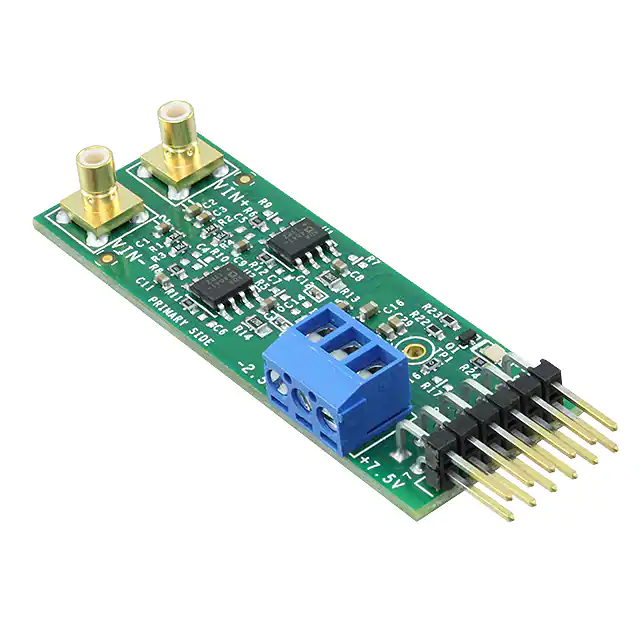

EVAL-AD7988-5-PMDZPMOD BRD 16BIT 500K ADC AD7988-5 |
0 |
|
Datasheet | PulSAR® | Box | Active | Pmod™ | Data Acquisition | Analog to Digital Converter (ADC) | AD7988-5 | Board(s) |
