Evaluation and Demonstration Boards and Kits
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Embedded | Utilized IC / Part | Primary Attributes | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CP2112EKEVAL BOARD FOR CP2112 |
30 |
|
Datasheet | - | Box | Active | Interface | USB 2.0 to SMBus Bridge | No | CP2112 | Full Speed (12Mbps) | On-Board LEDs | Board(s), Cable(s) |
|

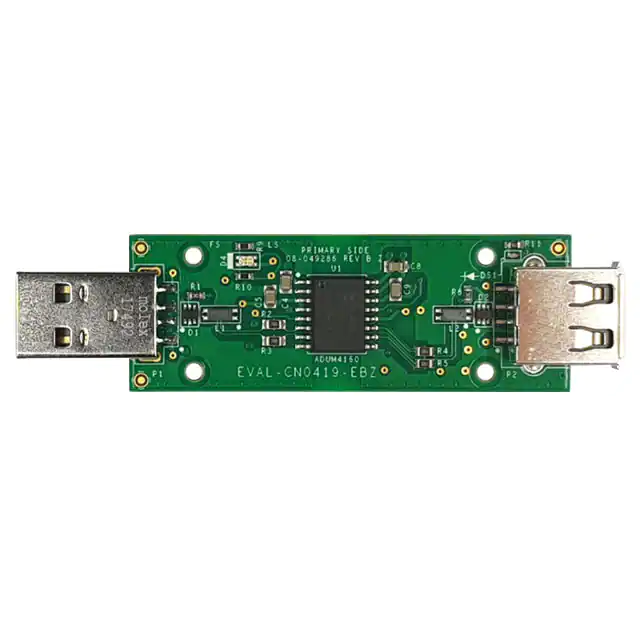

EVAL-CN0419-EBZEVAL BOARD FOR ADUM4160 ADUM5020 |
41 |
|
Datasheet | Circuits from the Lab™ | Box | Active | Interface | Digital Isolator | - | ADuM4160, ADuM5020 | - | - | Board(s) |
|
AFBR-0548ZEVAL BOARD AFBR-1624Z AFBR-2624Z |
67 |
|
Datasheet | - | Bulk | Active | Interface | Fiber Optics | No | AFBR-1624Z, AFBR-2624Z | - | - | Board(s) |
|
AMC3301EVMEVAL BOARD FOR AMC3301 |
23 |
|
Datasheet | - | Box | Active | Data Acquisition | Modulator | - | AMC3301 | - | - | Board(s) |
.JPG)
|
SN65LVDS387EVMEVAL BOARD FOR SN65LVDS387 |
15 |
|
Datasheet | - | Bulk | Active | Interface | LVDS | No | SN65LVDS387 | 16 Line Drivers Meet or Exceed ANSI EIA/TIA-644, 630Mbps | Propagation Delay < 2.9ns, Output Skew < 150ps, 35-mW / Driver @ 200MHz | Board(s) |
|
AFBR-0553ZEVAL BRD AFBR-1629Z AFBR-2529SIZ |
15 |
|
Datasheet | - | Tray | Active | Interface | Fiber Optics | - | AFBR-1629Z, AFBR-2529SIZ | - | - | Board(s) |
|
BOOSTXL-BUCKCONVEVAL BOARD FOR TMS320F28069M |
3 |
|
Datasheet | C2000™, Piccolo™ | Box | Active | Power Management | Digital Power Controller | Yes, MCU, 32-Bit | TMS320F28069M | - | Graphical User Interface (GUI) | Board(s) |
|

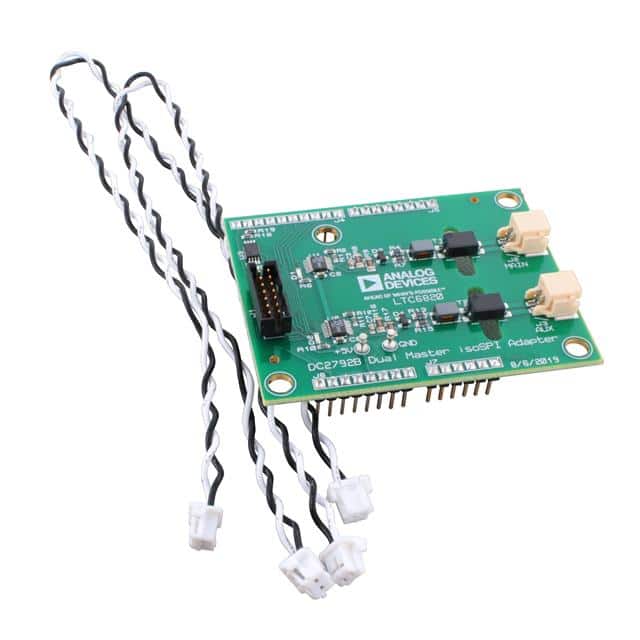

DC2792BEVAL BOARD FOR LTC6820 |
24 |
|
Datasheet | - | Box | Active | Interface | CANbus, isoSPI | - | LTC6820 | Isolated | - | Board(s) |
|

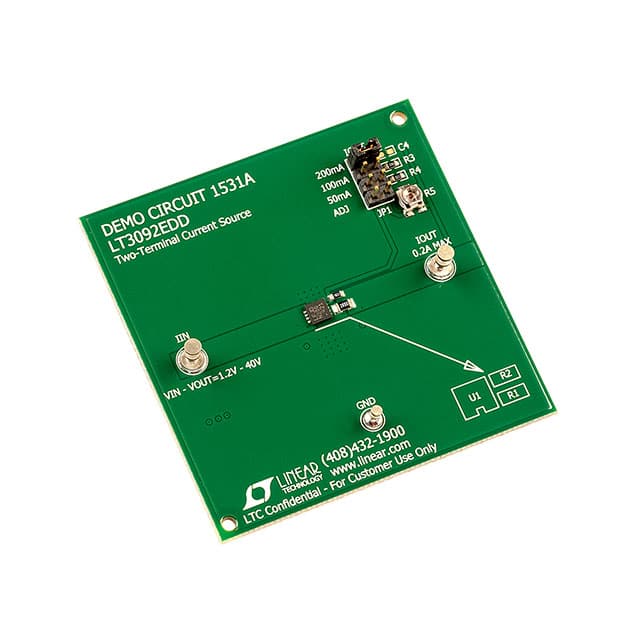

DC1531AEVAL BOARD FOR LT3092 |
22 |
|
Datasheet | - | Box | Active | Power Management | Current Source | - | LT3092 | - | - | Board(s) |
|
DRV8889-Q1EVMEVAL BOARD FOR DRV8889-Q1 |
24 |
|
Datasheet | - | Box | Active | Power Management | Motor Controller/Driver, Stepper | Yes, MCU, 16-Bit | DRV8889-Q1 | Motors (Stepper) | Graphical User Interface (GUI) | Board(s) |
|
DRV8306EVMEVAL BOARD FOR DRV8306 |
21 |
|
Datasheet | - | Bulk | Active | Power Management | Motor Controller/Driver | - | DRV8306 | - | - | Board(s) |
|

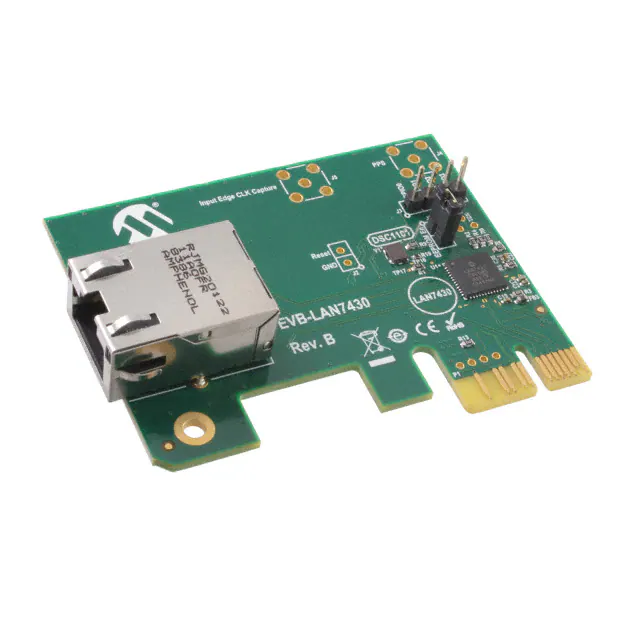

EVB-LAN7430EVAL BOARD FOR LAN7430 |
24 |
|
Datasheet | - | Bulk | Active | Interface | Ethernet | No | LAN7430 | - | - | Board(s) |
|
BQ35100EVM-795EVAL BOARD FOR BQ35100 |
10 |
|
Datasheet | - | Bulk | Active | Power Management | Fuel Gauge | - | BQ35100 | - | - | Board(s), Cable(s) |
|
TLE9015DQUTRXBRGTOBO1EVAL BOARD FOR TLE9015DQU |
5 |
|
Datasheet | - | Bulk | Active | Interface | UART | Yes, MCU, 32-Bit | TLE9015DQU | 4.75V ~ 54V Supply | - | Board(s), Cable(s) |
|

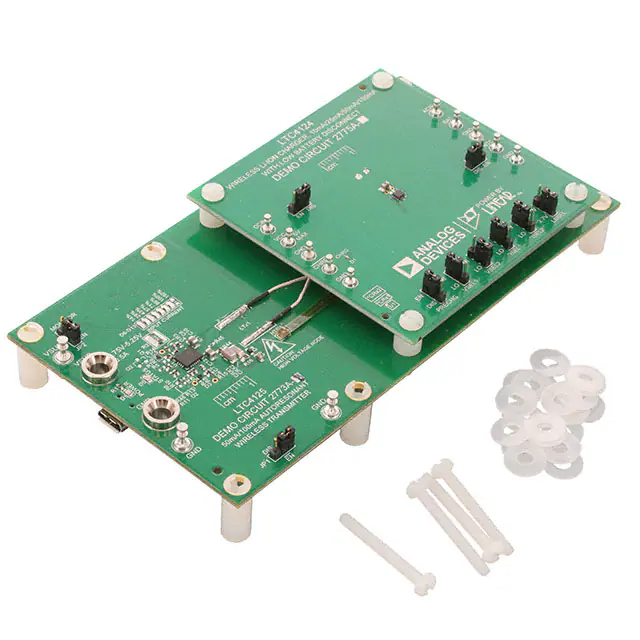

DC2770A-B-KITEVAL BOARD FOR LTC4125 |
20 |
|
Datasheet | - | Box | Active | Power Management | Wireless Power Supply/Charging | - | LTC4125 | Transmitter | - | Board(s) |
|

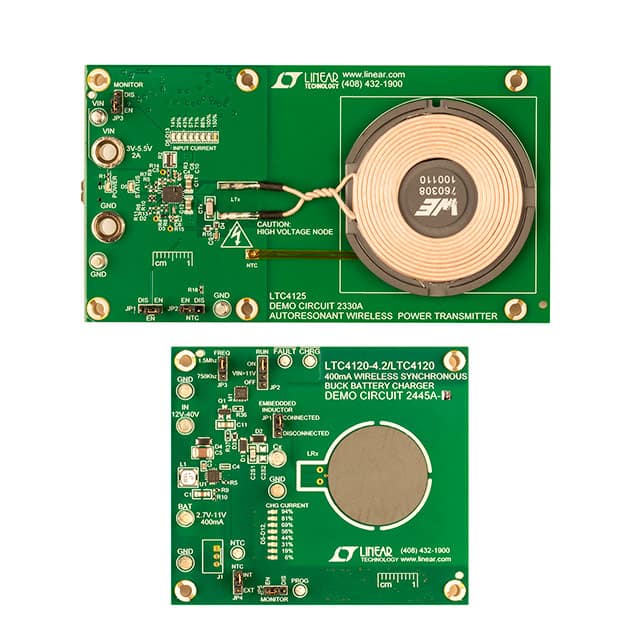

DC2386A-BEVAL BOARD FOR LTC4120 LTC4125 |
14 |
|
Datasheet | - | Box | Active | Power Management | Wireless Power Supply/Charging | No | LTC4120, LTC4125 | Transmitter and Receiver | On-Board LEDs | Board(s) |
|
CP2105EKEVAL BOARD FOR CP2105 |
4 |
|
Datasheet | - | Box | Not For New Designs | Interface | Dual USB 2.0 to UART (RS485) Bridge | No | CP2105 | Full Speed (12Mbps) | On-Board LEDs | Board(s), Cable(s) |
|

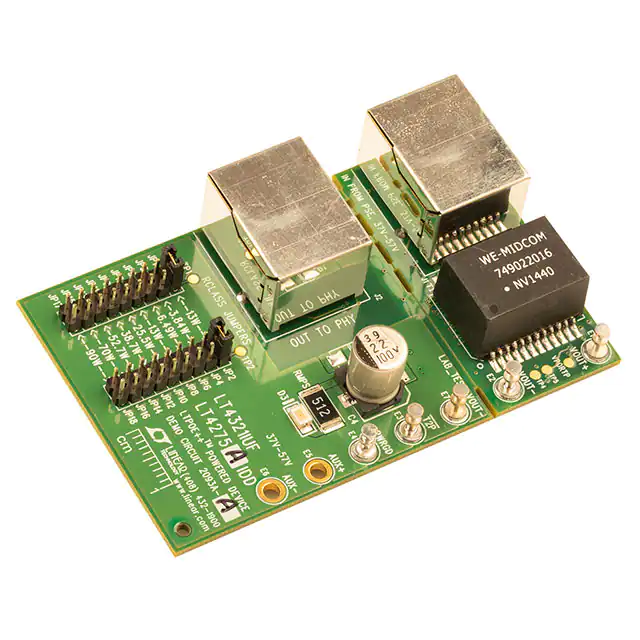

DC2093A-AEVAL BOARD FOR LT4275A LT4321 |
0 |
|
Datasheet | - | Box | Active | Power Management | Power over Ethernet (PoE) | No | LT4275A, LT4321 | - | On-Board LEDs | Board(s) |
|
TPS25947EVMEVAL BOARD FOR TPS25947 |
21 |
|
Datasheet | - | Box | Active | Circuit Protection | Electronic Fuses (eFuse) | No | TPS25947 | 2.7V ~ 23V Operating Range | - | Board(s) |
|
DRV8711EVMEVAL BOARD FOR DRV8711 |
14 |
|
Datasheet | - | Box | Active | Power Management | Motor Controller/Driver, Stepper | - | DRV8711 | - | Graphical User Interface (GUI) | Board(s), Cable(s), Accessories |
