Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of DAC's | Number of Bits | Sampling Rate (Per Second) | Data Interface | Settling Time | DAC Type | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

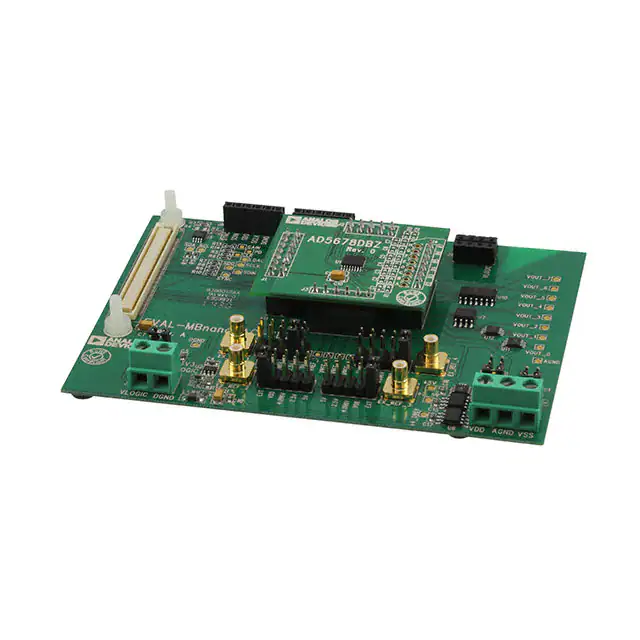

EVAL-AD5678DBZEVAL BOARD FOR AD5678 |
2 |
|
Datasheet | nanoDAC® | Bulk | Active | 8 | 12, 16 | - | Serial, SPI | 6 µs | Voltage | AD5678 | Board(s) |
|

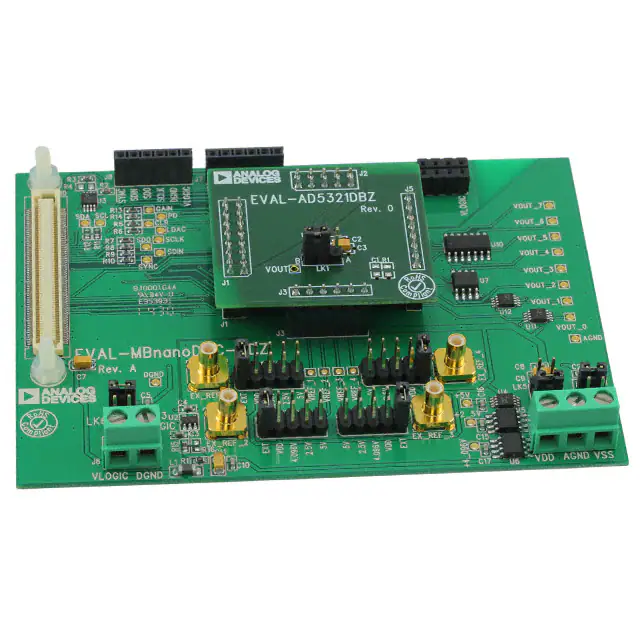

EVAL-AD5321DBZEVAL BOARD FOR AD5321 |
3 |
|
Datasheet | nanoDAC® | Bulk | Active | 1 | 12 | - | I2C, Serial | 8 µs | Voltage | AD5321 | Board(s) |
|

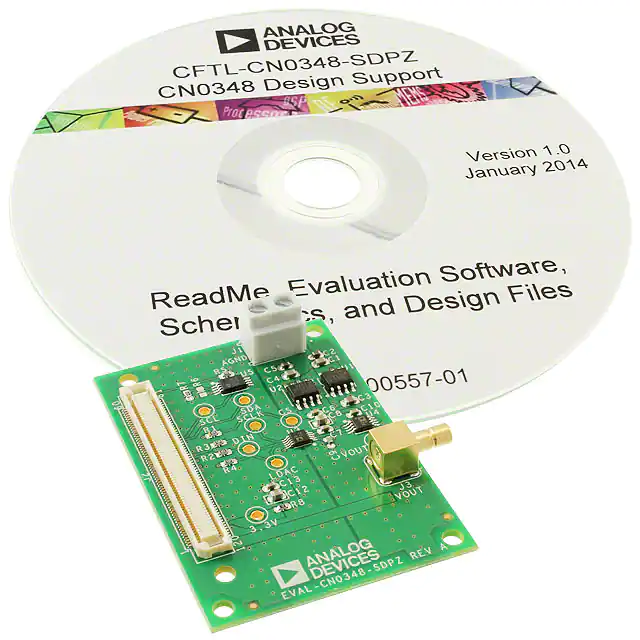

EVAL-CN0348-SDPZEVAL BOARD FOR AD5541A ADA4500-2 |
1 |
|
Datasheet | Circuits from the Lab™ | Box | Active | 1 | 16 | - | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 1 µs | Voltage | AD5541A, ADA4500-2, ADR4550 | Board(s) |
|
DC2789A-AEVAL BOARD FOR LTC1661 |
3 |
|
Datasheet | - | Box | Active | 2 | 10 | - | Serial, SPI | 30 µs | - | LTC1661 | Board(s) |
|

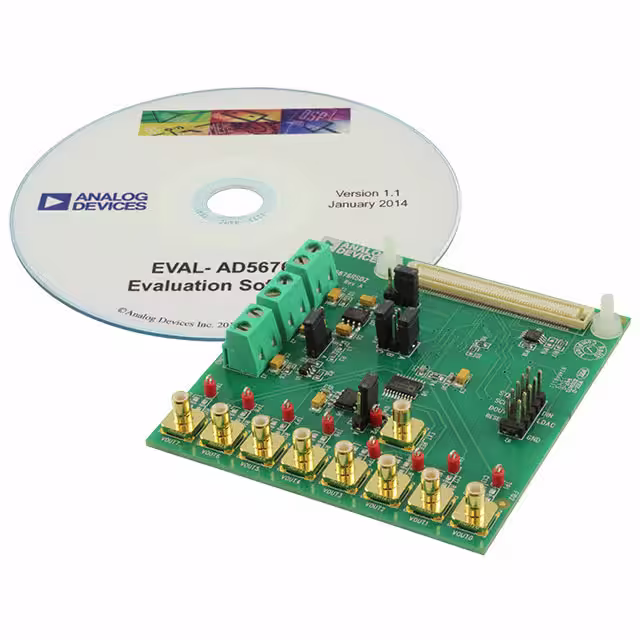

EVAL-AD5676RSDZEVAL BOARD FOR AD5676R |
0 |
|
Datasheet | nanoDAC+® | Box | Active | 8 | 16 | - | SPI | 5 µs | Voltage | AD5676R | Board(s) |
|

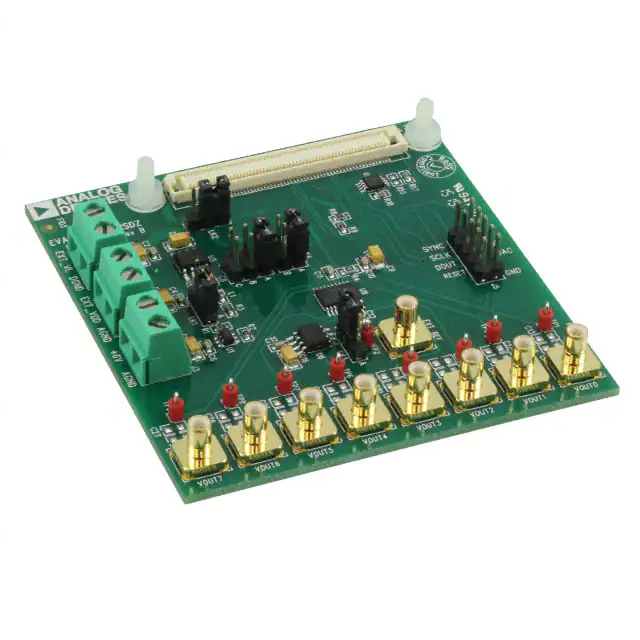

EVAL-AD5676SDZEVAL BOARD FOR AD5676 |
0 |
|
Datasheet | nanoDAC+® | Box | Active | 8 | 16 | - | SPI | 5 µs | Voltage | AD5676 | Board(s) |
|

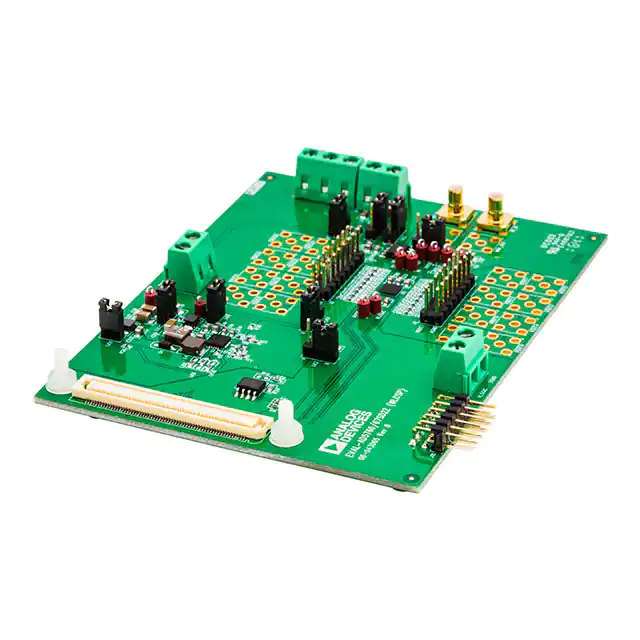

EVAL-AD5767SD2ZEVAL BOARD FOR AD5767 |
0 |
|
Datasheet | - | Box | Active | 16 | 12 | - | DSP, Serial, SPI | 12 µs | Voltage | AD5767 | Board(s) |
|

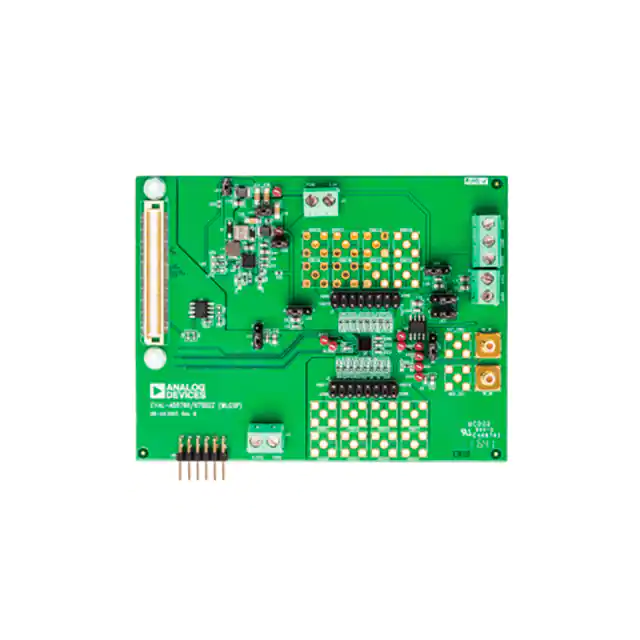

EVAL-AD5766SD2ZEVAL BOARD FOR AD5766 |
0 |
|
Datasheet | - | Bulk | Active | 16 | 16 | - | Serial, SPI | 12 µs | Voltage | AD5766 | Board(s) |
|
DC1466B-DEVAL BOARD FOR LTC2636 |
8 |
|
Datasheet | - | Bulk | Active | 8 | 12 | - | SPI | 3.4 µs | Voltage | LTC2636 | Board(s) |
|

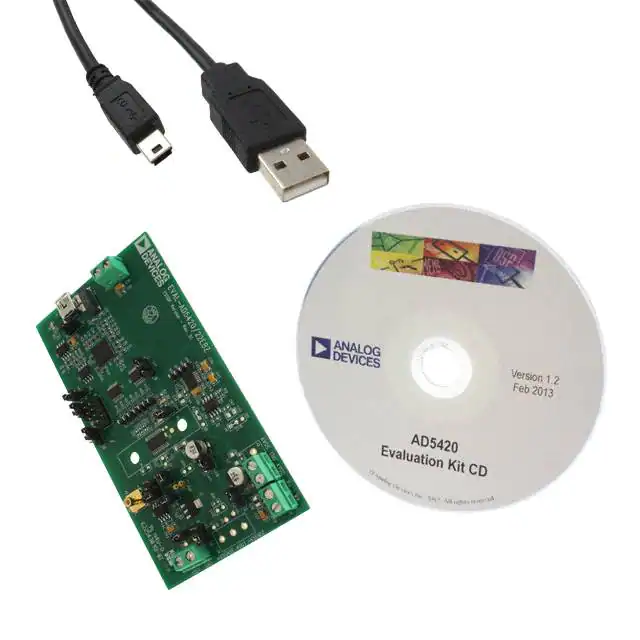

EVAL-AD5420EBZEVAL BOARD FOR AD5420 |
1 |
|
Datasheet | - | Box | Active | 1 | 16 | - | Serial | 10 µs | Current | AD5420 | Board(s) |
