Digital to Analog Converters (DACs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of DAC's | Number of Bits | Sampling Rate (Per Second) | Data Interface | Settling Time | DAC Type | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2692A-AEVAL BOARD FOR LTC2662-16 |
16 |
|
Datasheet | SoftSpan™ | Box | Active | 5 | 16 | - | Serial, SPI | - | Current | LTC2662-16 | Board(s) |
|
DC2025A-BEVAL BOARD FOR LTC2668-12 |
3 |
|
Datasheet | SoftSpan™ | Box | Active | 16 | 12 | - | Serial, SPI | 4.5 µs | Voltage | LTC2668-12 | Board(s) |
|
DAC81408EVMEVAL BOARD FOR DAC81408 |
2 |
|
Datasheet | - | Box | Active | 8 | 16 | - | Serial, SPI | 12 µs | Voltage | DAC81408 | Board(s) |
|
DC2459A-AEVAL BOARD FOR LT1812 LTC1668 |
4 |
|
Datasheet | - | Box | Active | 1 | 16 | 50M | Parallel | 20 ns | Current | LT1812, LTC1668 | Board(s) |
|
EVAL-AD3552RFMC1ZEVAL BOARD FOR AD3552R |
6 |
|
Datasheet | - | Box | Active | 1 | 16 | - | Serial, SPI | 100 ns | Voltage | AD3552R | Board(s) |
|
|
EVAL-AD3552RFMC2ZEVAL BOARD FOR AD3552R |
4 |
|
Datasheet | - | Box | Active | 1 | 16 | - | Serial, SPI | 100 ns | Voltage | AD3552R | Board(s) |
|
DC1792AEVAL BOARD FOR LTC2756 |
6 |
|
Datasheet | SoftSpan™ | Box | Active | 1 | 18 | - | SPI | 2.1 µs | Current | LTC2756 | Board(s) |
|
DAC8775EVMEVAL BOARD FOR DAC8775 |
3 |
|
Datasheet | - | Bulk | Active | 4 | 16 | - | SPI | - | Current/Voltage | DAC8775 | Board(s), Cable(s), Accessories |
|
DAC81404EVMEVAL BOARD FOR DAC81404 |
3 |
|
Datasheet | - | Box | Active | 4 | 16 | - | Serial, SPI | 1.2 ms | Voltage | DAC81404 | Board(s) |
|
|
DAC81401EVMEVAL BOARD FOR DAC81401 |
2 |
|
Datasheet | - | Box | Active | 1 | 16 | - | Serial, SPI | 22 µs | Voltage | DAC81401 | Board(s) |
|
|
DAC82002EVMEVAL BOARD FOR DAC82002 |
6 |
|
Datasheet | - | Box | Active | 2 | 16 | 50M | SPI | 1 µs | Voltage | DAC82002 | Board(s), Cable(s) |
|
EVAL-AD5755-1SDZEVAL BOARD FOR AD5755 |
1 |
|
Datasheet | - | Box | Active | 4 | 16 | - | Serial | 11 µs | Current/Voltage | AD5755 | Board(s) |
|
PCM5102EVM-UEVAL BOARD FOR PCM5102 |
3 |
|
Datasheet | DirectPath™ | Box | Active | 2 | 16, 24, 32 | 8k ~ 384k | PCM | - | Current | PCM5102 | Board(s) |
|
AD9744-FMC-EBZEVAL BOARD FOR AD9744 |
2 |
|
Datasheet | TxDAC® | Bulk | Active | 1 | 14 | 210M | Parallel | 11 ns | Current | AD9744 | Board(s) |
|
AD9154-FMC-EBZEVAL BOARD FOR AD9154 |
4 |
|
Datasheet | TxDAC+® | Box | Active | 4 | 16 | 2.4G | Serial JESD204B, SPI™ | 20 ns | Current | AD9154 | Board(s) |
|
DAC39J84EVMEVAL BOARD FOR DAC39J84 |
6 |
|
Datasheet | - | Box | Active | 4 | 16 | 2.8G | JESD204B | 10 ns | Current | DAC39J84 | Board(s) |
|
|
DAC12DL3200EVMEVAL BOARD FOR DAC12DL3200 |
2 |
|
Datasheet | - | Bulk | Active | 2 | 12 | - | LVDS | - | Voltage | DAC12DL3200 | Board(s) |
|
DAC53401EVMEVAL BOARD FOR DAC53401 |
6 |
|
Datasheet | - | Box | Active | 1 | 10 | - | I2C, Serial | 12 µs | Voltage | DAC53401 | Board(s) |
|

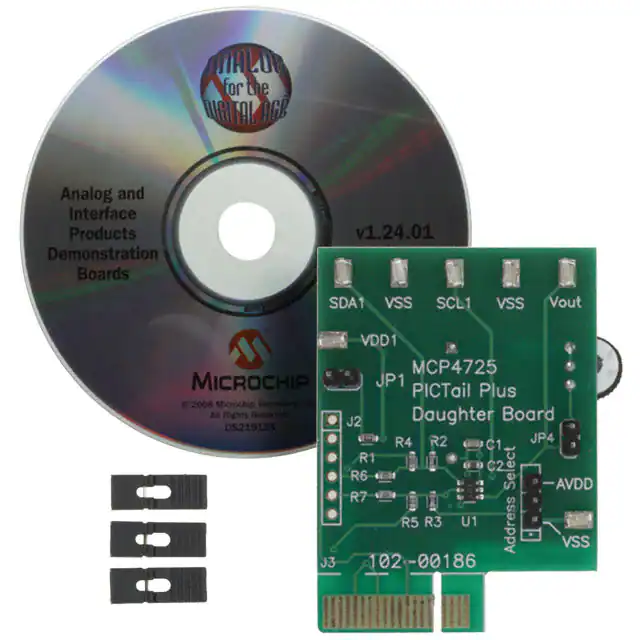

MCP4725DM-PTPLSEVAL BOARD FOR MCP4725 |
6 |
|
Datasheet | - | Box | Active | 1 | 12 | 100k ~ 3.4M | I2C | 6 µs | Voltage | MCP4725 | Board(s) |
|
DC1332B-CEVAL BOARD FOR LTC2631 |
2 |
|
Datasheet | - | Box | Active | 1 | 12 | - | I2C | 4.6 µs | Voltage | LTC2631 | Board(s), Cable(s) |
