DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

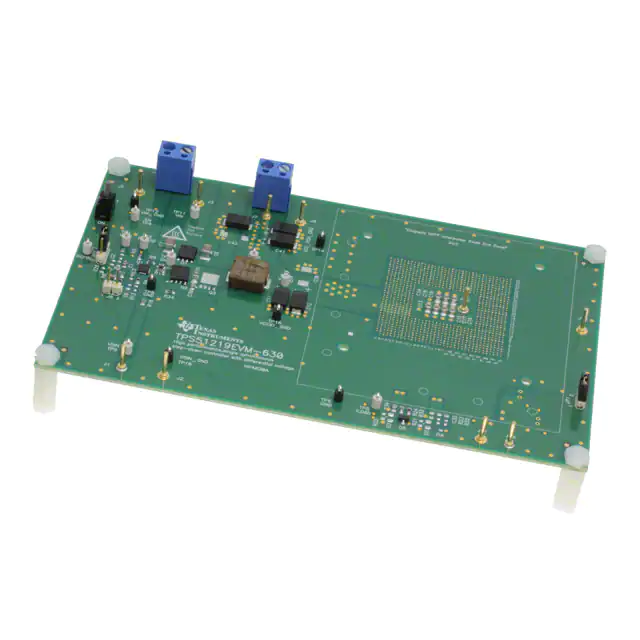

TPS51219EVM-630EVAL BOARD FOR TPS51219 |
6 |
|
Datasheet | D-CAP2™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 20A | 8V ~ 20V | Buck | 500kHz | Board(s) | TPS51219 |
|
TPS62693EVM-076EVAL BOARD FOR TPS62693 |
6 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.2V | 800mA | 2.3V ~ 4.8V | Buck | 3MHz | Board(s) | TPS62693 |
|
TPS62102EVMEVAL BOARD FOR TPS62102 |
5 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 2.5V ~ 9V | Buck | 1MHz | Board(s) | TPS62102 |
|

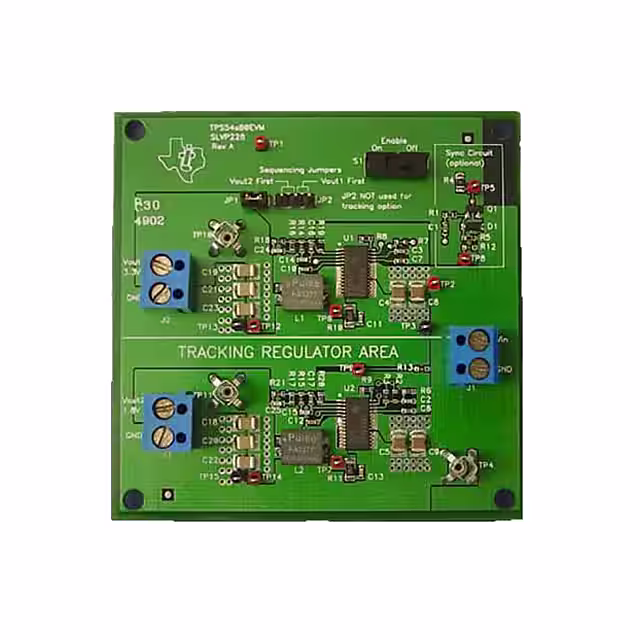

TPS54680EVMEVAL BOARD FOR TPS54610 TPS54680 |
5 |
|
Datasheet | SWIFT™ | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 6A, 6A | 4.3V ~ 6V | Buck | 700kHz | Board(s) | TPS54610, TPS54680 |
|

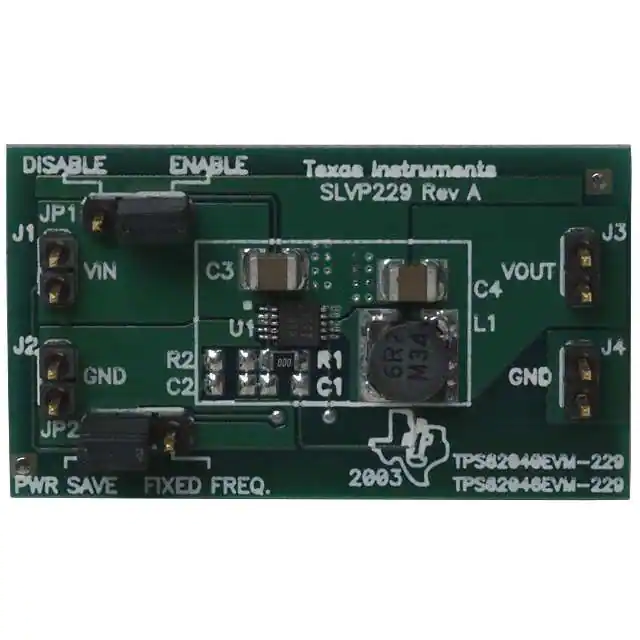

TPS62046EVM-229EVAL BOARD FOR TPS62046 |
5 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 2.5V ~ 6V | Buck | 1.25MHz | Board(s) | TPS62046 |
|

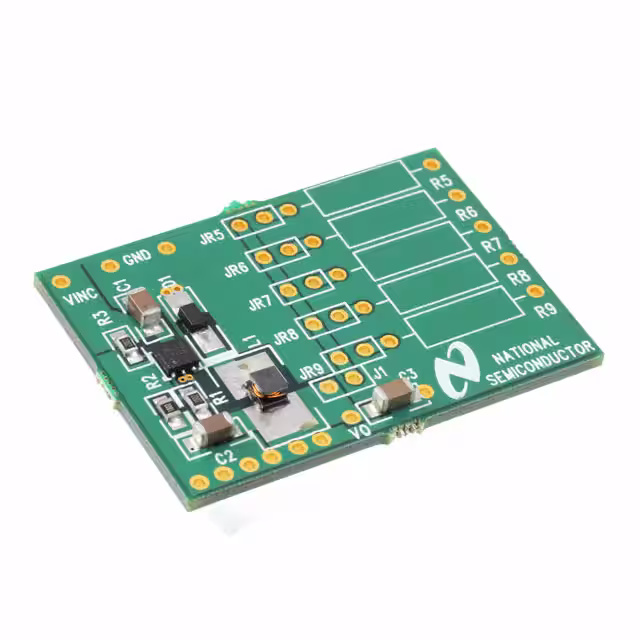

LM2832ZSD EVALEVAL BOARD FOR LM2832 |
5 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 3V ~ 5.5V | Buck | 3MHz | Board(s) | LM2832 |
|

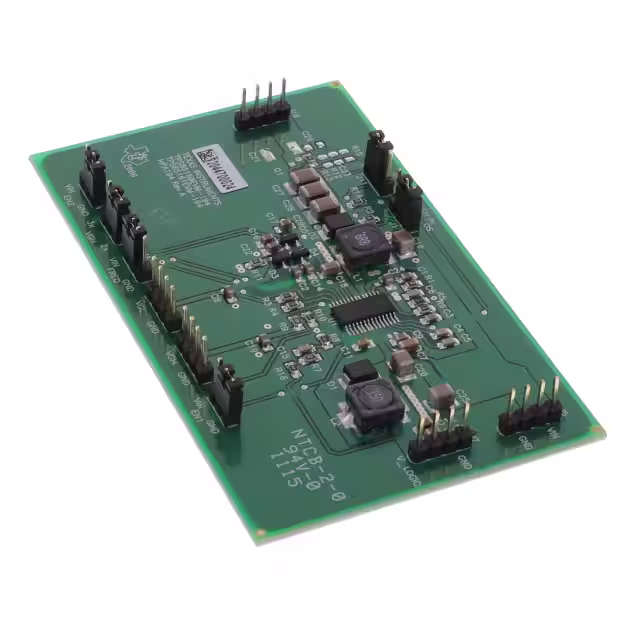

TPS65160EVM-194EVAL BOARD FOR TPS65160 |
5 |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | 29.8 W | 3.3V, 15V, 23V, -5V | 1.5A, 1.5A, 50mA, 50mA | 11.4V ~ 12.6V | Buck-Boost | 750kHz | Board(s) | TPS65160 |
|
TPS62351EVM-122EVAL BOARD FOR TPS62351 |
5 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.9V ~ 1.69V | 800mA | 2.7V ~ 5.5V | Buck | 3MHz | Board(s), Cable(s) | TPS62351 |
|
LM2833XMYEVALEVAL BOARD FOR LM2833 |
5 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 5.5V | Buck | 1.5MHz | Board(s) | LM2833 |
|

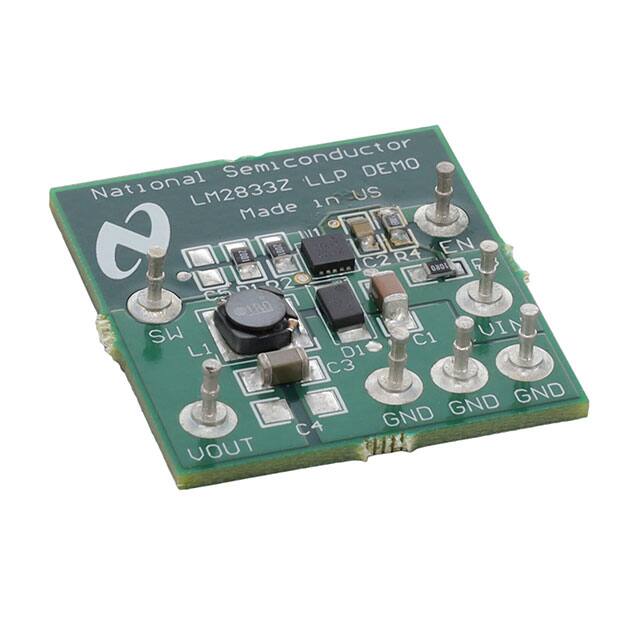

LM2833ZSDEVALEVAL BOARD FOR LM2833 |
5 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 5.5V | Buck | 3MHz | Board(s) | LM2833 |
