DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2852Y-2.5EVALEVAL BOARD FOR LM2852 |
0 |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 2A | 2.85V ~ 5.5V | Buck | 500kHz | Board(s) | LM2852 |
|
|
LM34910EVALEVAL BOARD FOR LM34910 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 8V ~ 36V | Buck | 850kHz | Board(s) | LM34910 |
|
LM34914EVALEVAL BOARD FOR LM34914 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 8V ~ 40V | Buck | 275kHz | Board(s) | LM34914 |
|

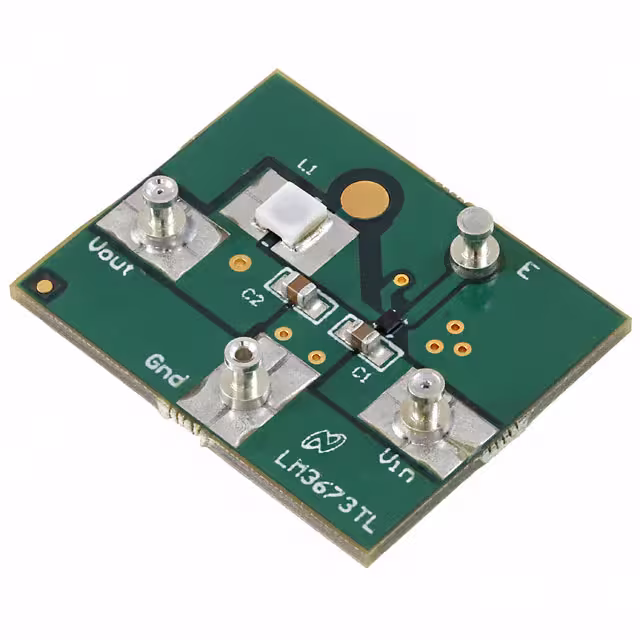

LM3673TL-1.5EVEVAL BOARD FOR LM3673 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 350mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LM3673 |
|

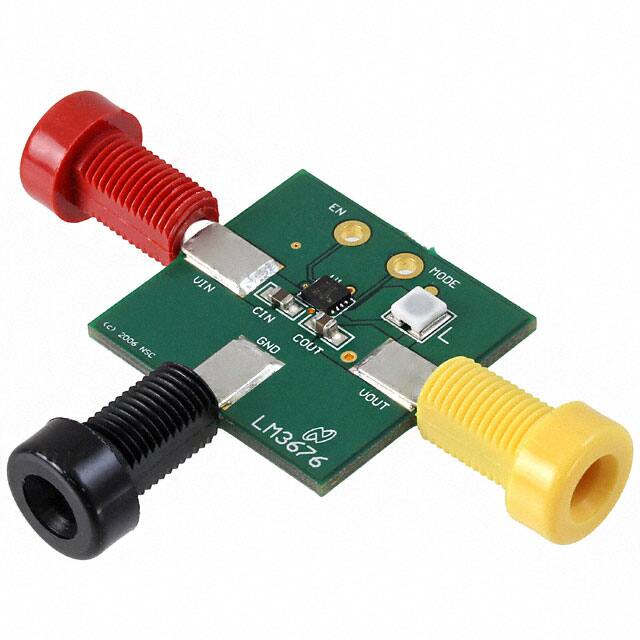

LM3676SD-ADJEVEVAL BOARD FOR LM3676 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 3.3V | 600mA | 2.9V ~ 5.5V | Buck | 2MHz | Board(s) | LM3676 |
|
LM20323EVALEVAL BOARD FOR LM20323 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 25V | Buck | 500kHz | Board(s) | LM20323 |
|

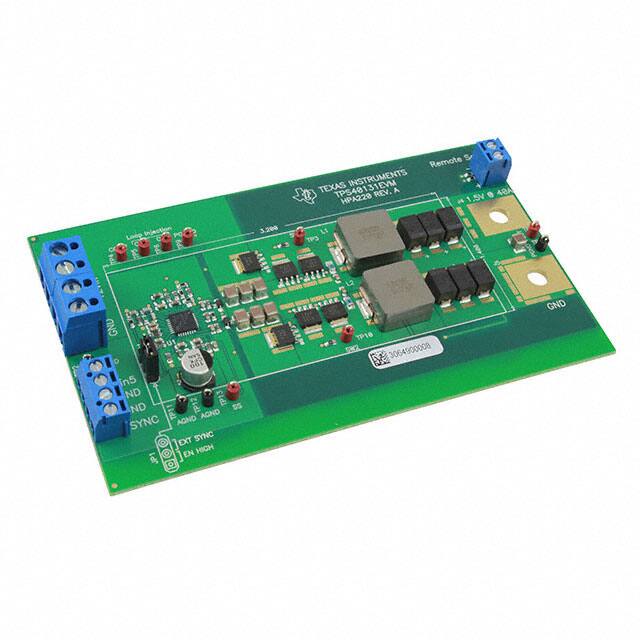

TPS40131EVMEVAL BOARD FOR TPS40131 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 40A | 10.8V ~ 13.2V | Buck | 380kHz | Board(s) | TPS40131 |
|

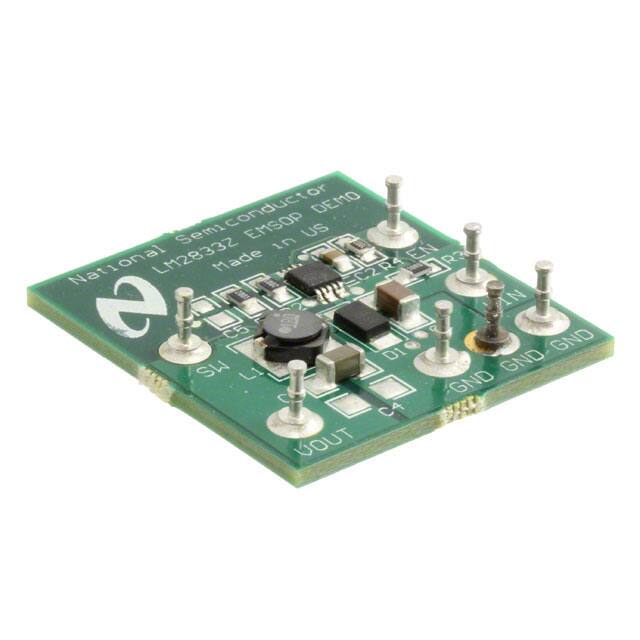

LM2833ZMYEVALEVAL BOARD FOR LM2833 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 5.5V | Buck | 3MHz | Board(s) | LM2833 |
|

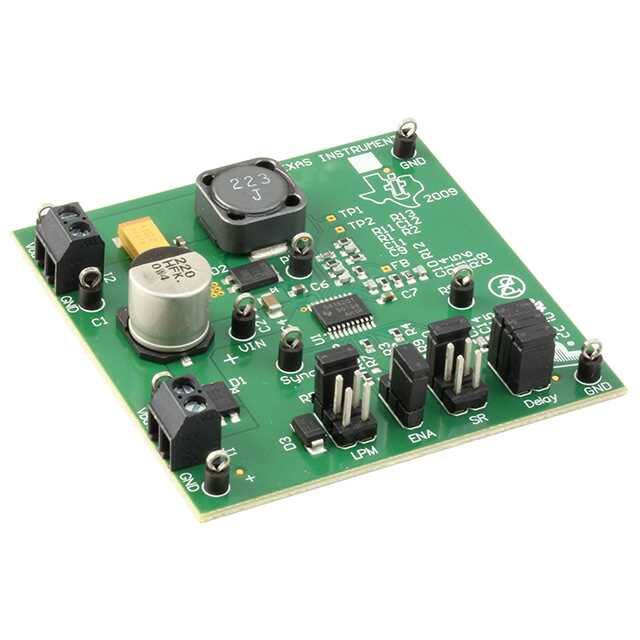

TPS54162EVMEVAL BOARD FOR TPS54162 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1A | 3.6V ~ 48V | Buck | - | Board(s) | TPS54162 |
|

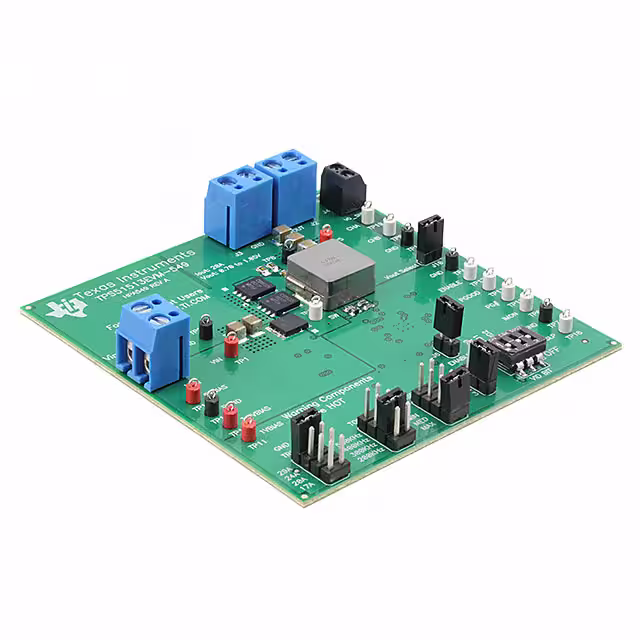

TPS51513EVM-549EVAL BOARD FOR TPS51513 |
0 |
|
Datasheet | D-CAP™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 20A | 8V ~ 14V | Buck | 250kHz ~ 500kHz | Board(s) | TPS51513 |
