DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

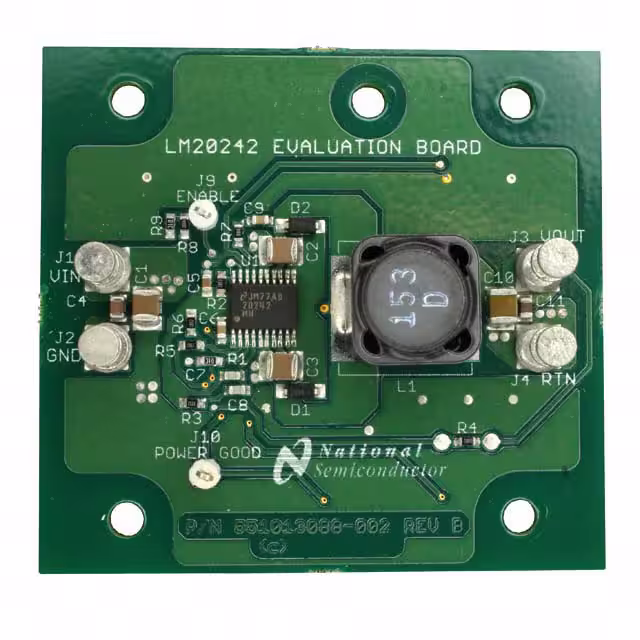

LM20242EVALEVAL BOARD FOR LM20242 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 8V ~ 36V | Buck | 300kHz | Board(s) | LM20242 |
|
LM5009EVALEVAL BOARD FOR LM5009 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 150mA | 12V ~ 95V | Buck | 240kHz | Board(s) | LM5009 |
|

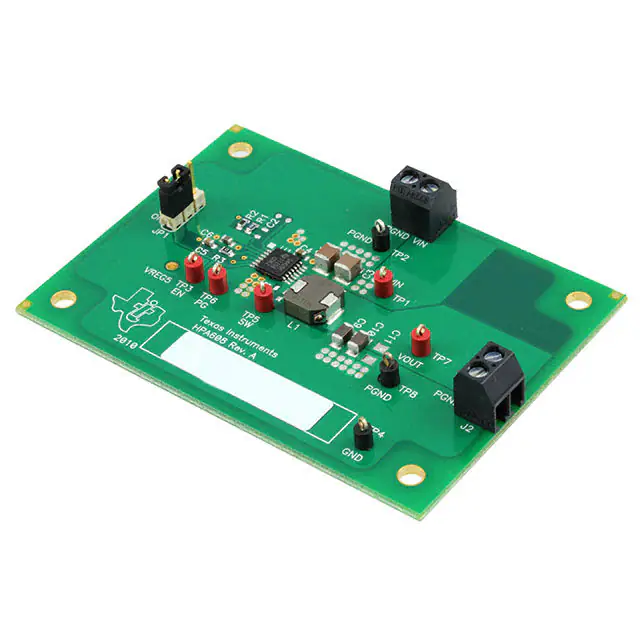

TPS54429EEVM-608EVAL BOARD FOR TPS54429E |
5 |
|
Datasheet | SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4.5A | 7V ~ 18V | Buck | 700kHz | Board(s) | TPS54429E |
|
TPS82695EVM-646EVAL BOARD FOR TPS82695 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 500mA | 2.3V ~ 4.8V | Buck | 4MHz | Board(s) | TPS82695 |
|
TPS54329EVM-056EVAL BOARD FOR TPS54329 |
1 |
|
Datasheet | SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54329 |
|

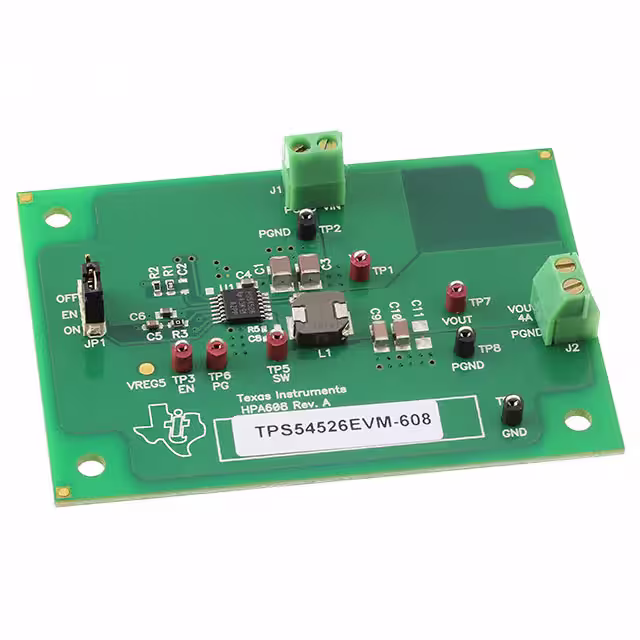

TPS54526EVM-608EVAL BOARD FOR TPS54526 |
1 |
|
Datasheet | D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 5.5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54526 |
|

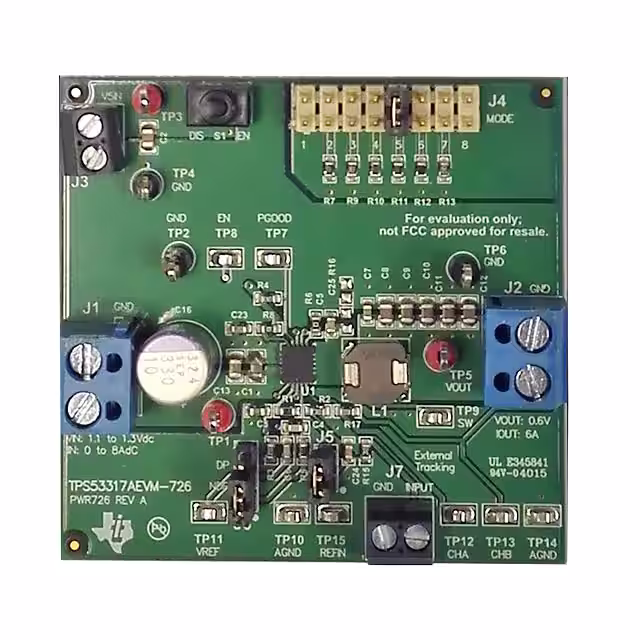

TPS53317AEVM-726EVAL BOARD FOR TPS53317 |
1 |
|
Datasheet | D-CAP+™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V | 6A | 1.1V ~ 1.3V | Buck | - | Board(s) | TPS53317 |
|
LM3102EVALEVAL BOARD FOR LM3102 |
0 |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 8V ~ 42V | Buck | 500kHz | Board(s) | LM3102 |
|
TPS62621EVM-419EVAL BOARD FOR TPS62621 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | TPS62621 |
|

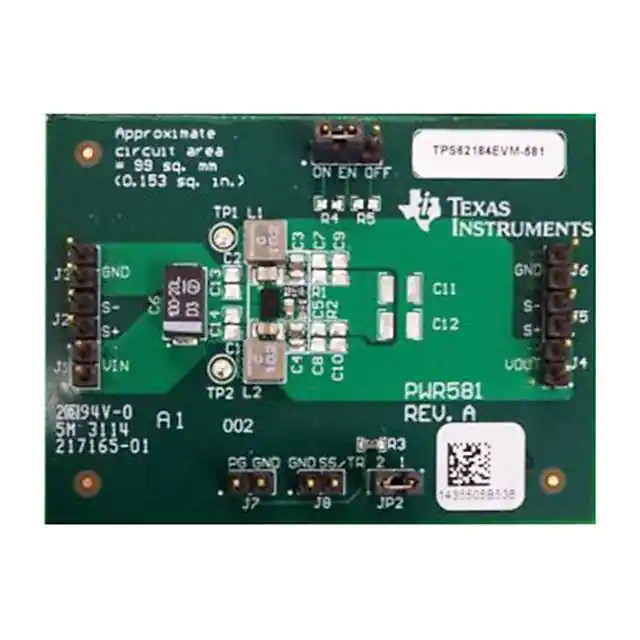

TPS62184EVM-581EVAL BOARD FOR TPS62184 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 4V ~ 17V | Buck | - | Board(s) | TPS62184 |
