DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS54810EVM-213EVAL BOARD FOR TPS54810 |
1 |
|
Datasheet | SWIFT™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 8A | 4V ~ 6V | Buck | 700kHz | Board(s) | TPS54810 |
|
551011367-021EVAL BOARD FOR LM2599 |
1 |
|
Datasheet | WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Down | - | - | - | - | - | Buck | - | Unpopulated (Bare) Board(s) | LM2599 |
|

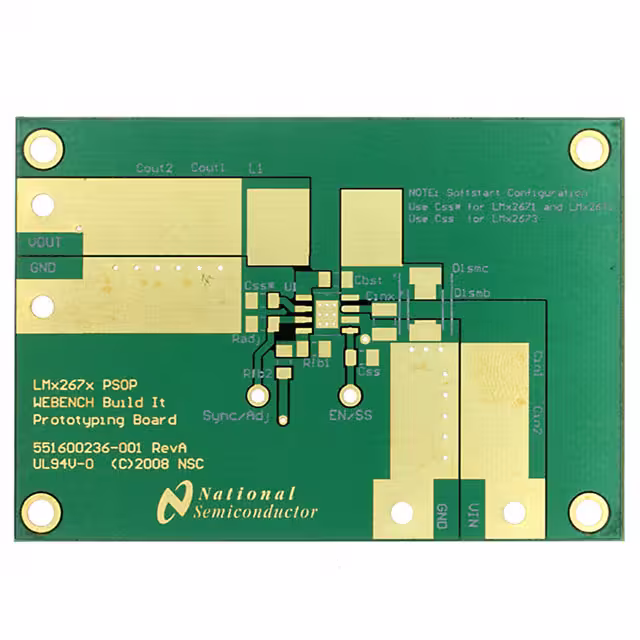

551600236-001/NOPBEVAL BOARD FOR LM2267X 8PSOP |
1 |
|
- |
WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Unpopulated (Bare) Board(s) | LM2267X 8-PSOP |
|

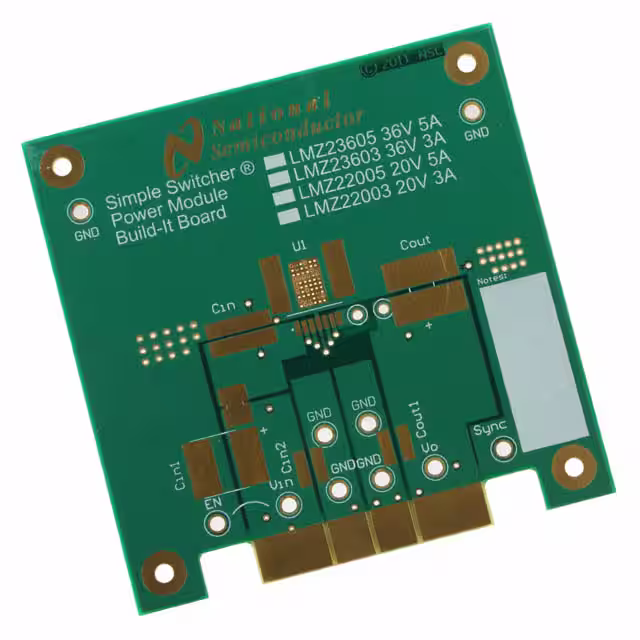

551600610-001/NOPBEVAL BOARD FOR LMZ2360X |
1 |
|
- |
WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Down | - | - | - | - | - | Buck | - | Unpopulated (Bare) Board(s) | LMZ2360x |
|

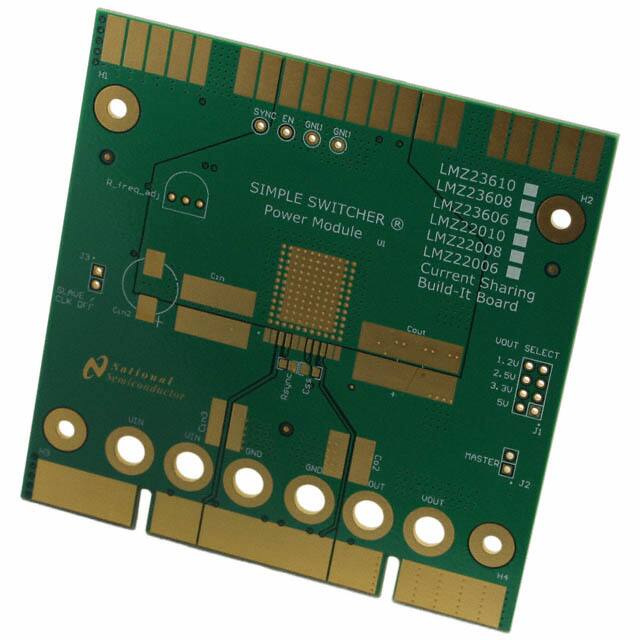

551600612-001/NOPBEVAL BOARD FOR LMZ236XX |
1 |
|
- |
WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Down | - | - | - | - | - | Buck | - | Unpopulated (Bare) Board(s) | LMZ236xx |
|
LM5022SEPBLDT/NOPBWEBENCH BUILD IT BOARD LM5022 |
1 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | - | - | Unpopulated (Bare) Board(s) | - |
|

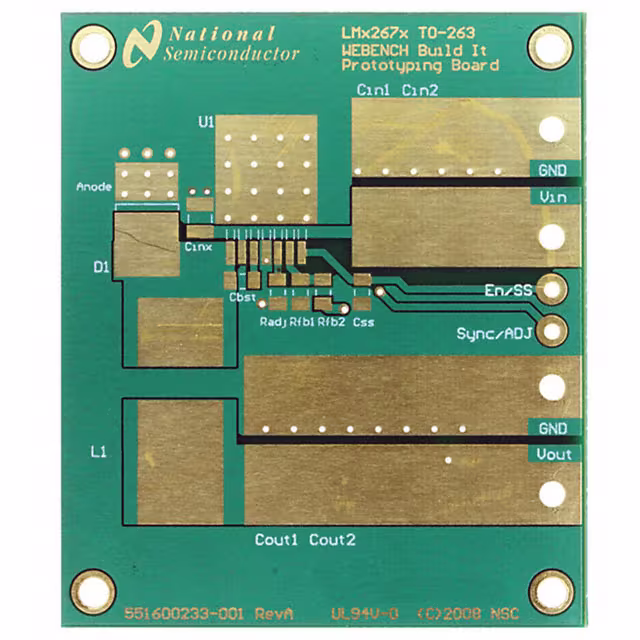

551600233-001/NOPBEVAL BOARD FOR LM2267X TO263 |
0 |
|
Datasheet | WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Unpopulated (Bare) Board(s) | LM2267x TO-263 |
|
551600611-001/NOPBEVAL BOARD FOR LMZ136XX |
0 |
|
- |
WEBENCH® Buildit Board | Bulk | Obsolete | DC/DC, Step Down | - | - | - | - | - | Buck | - | Unpopulated (Bare) Board(s) | LMZ136xx |
|

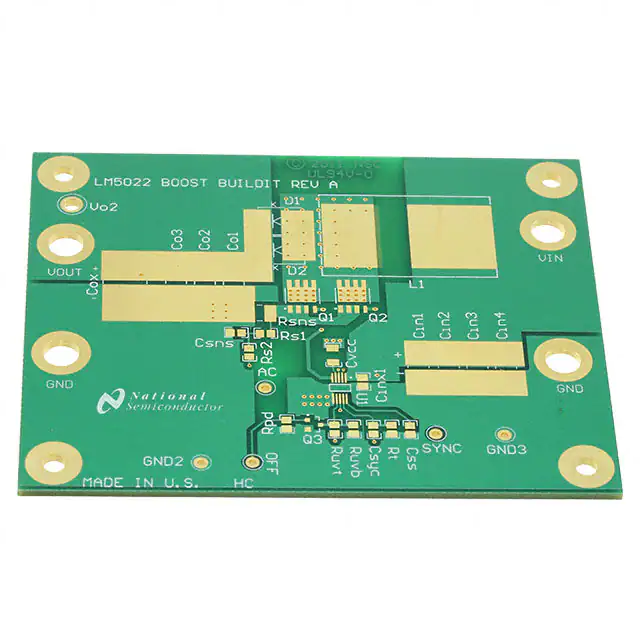

LM5022BSTBLDT/NOPBWEBENCH BUILD IT BOARD LM5022 |
0 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | - | - | Unpopulated (Bare) Board(s) | - |
|
TPS54380EVM-001EVAL BOARD FOR TPS54380 |
4 |
|
Datasheet | SWIFT™ | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 3A, 1.5A | 3V ~ 5.5V | Buck | 700kHz | Board(s) | TPS54380 |
