DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LV14360PEVMEVAL BOARD FOR LV14360 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.3V ~ 60V | Buck | 500kHz | Board(s) | LV14360 |
|
TPS62867EVM-121EVAL BOARD FOR TPS62867 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 6A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPS62867 |
|
TPSM8A29EVMEVAL BOARD FOR TPSM8A29 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 15A | 4V ~ 16V | Buck | - | Board(s) | TPSM8A29 |
|

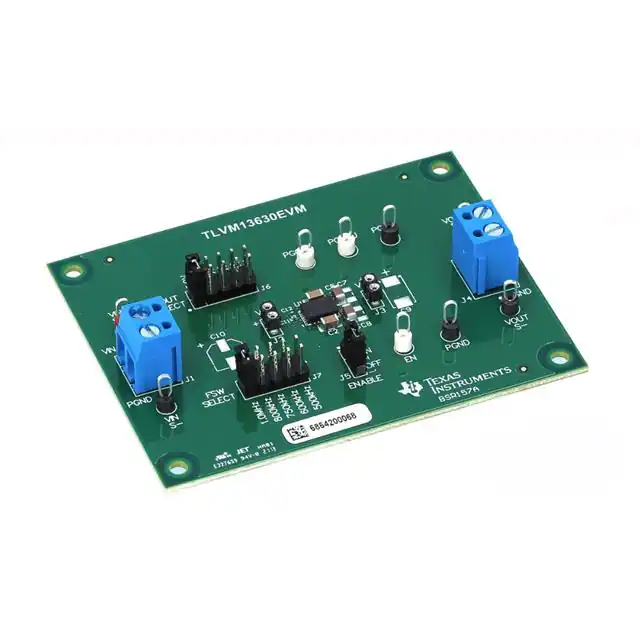

TLVM13630EVMEVAL BOARD FOR TLVM13630 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 6V | 3A | 3V ~ 36V | Buck | - | Board(s) | TLVM13630 |
|

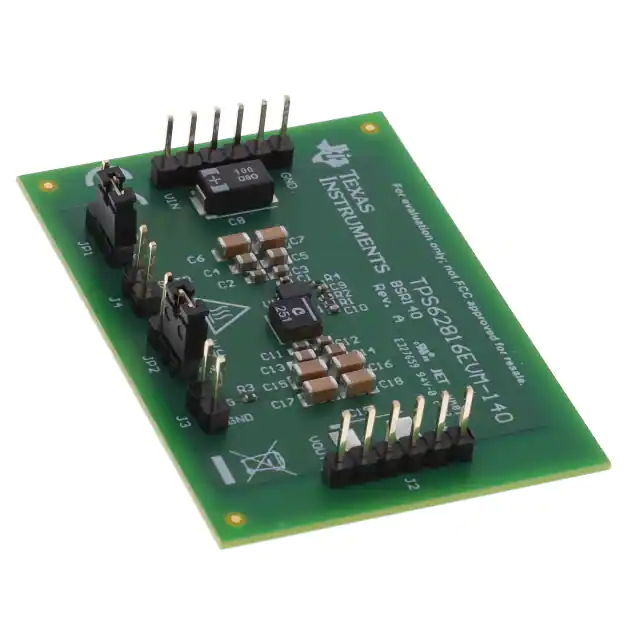

TPS62816EVM-140EVAL BOARD FOR TPS62816Q1 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 6A | 2.7V ~ 6V | Buck | - | Board(s) | TPS62816-Q1 |
|

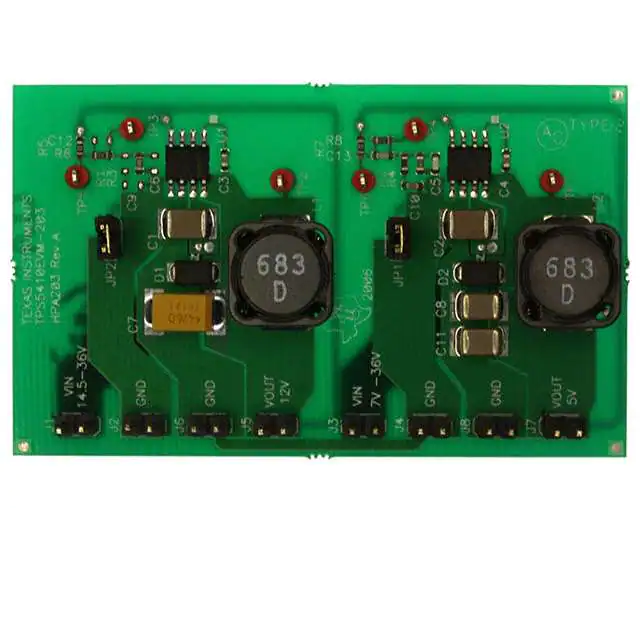

TPS5410EVM-203EVAL BOARD FOR TPS5410 |
1 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 1A, 1A | 7V ~ 36V | Buck | 500kHz | Board(s) | TPS5410 |
|

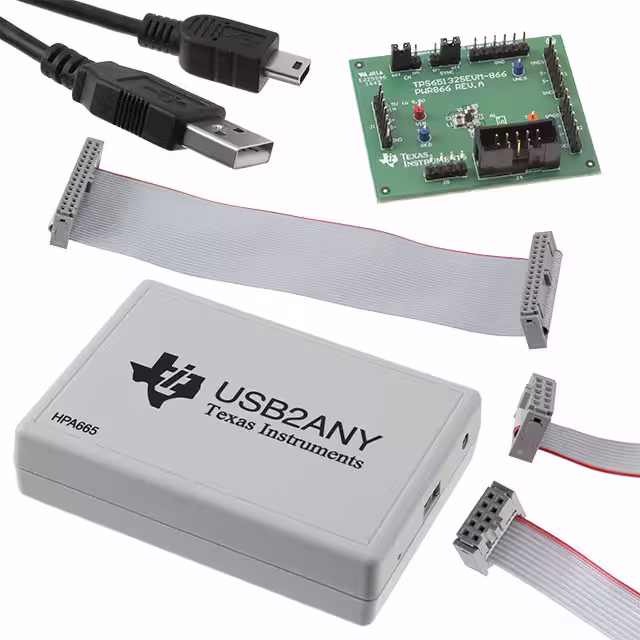

TPS65132SEVM-866EVAL BOARD FOR TPS65132 |
1 |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LCD Supply | 2 Non-Isolated Outputs | - | ±5.4V | 40mA, 40mA | 2.5V ~ 5.5V | Buck | 1.6MHz | Board(s) | TPS65132 |
|
DCPA10505EVM-861EVAL BOARD FOR DCPA10505 |
1 |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 1 Isolated Output | 1 W | 5V | - | 4.5V ~ 5.5V | - | - | Board(s) | DCPA10505 |
|

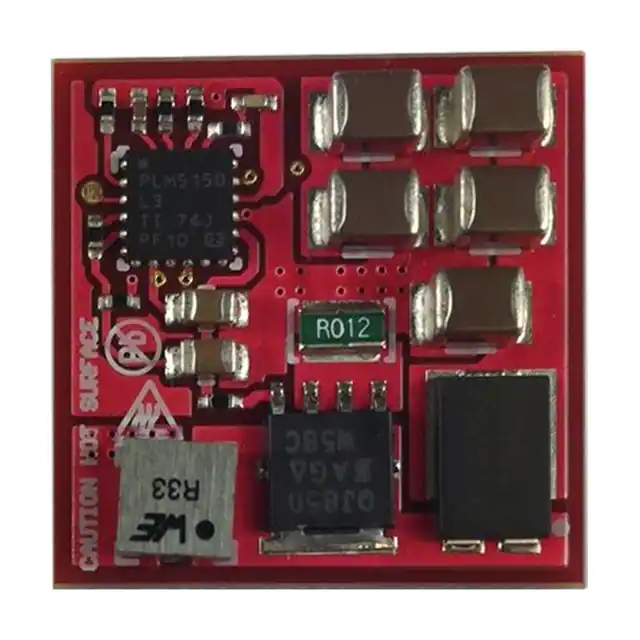

LM5150RUMHDEVMEVAL BOARD FOR LM5150Q1 |
1 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 6.8V | 1.1A | 3.2V ~ 40V | Boost | 2.2MHz | Board(s) | LM5150-Q1 |
|

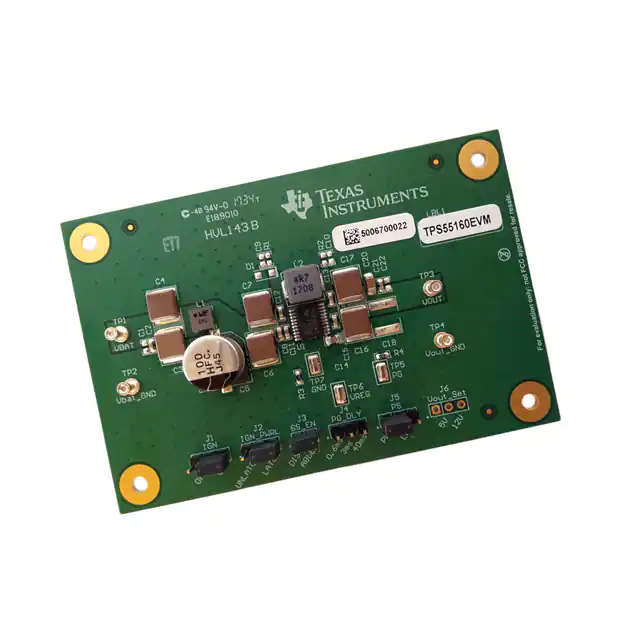

TPS55160Q1-EVMEVAL BOARD FOR TPS55160Q1 |
1 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 8V | 1A | - | Buck-Boost | 2MHz | Board(s) | TPS55160-Q1 |
