DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

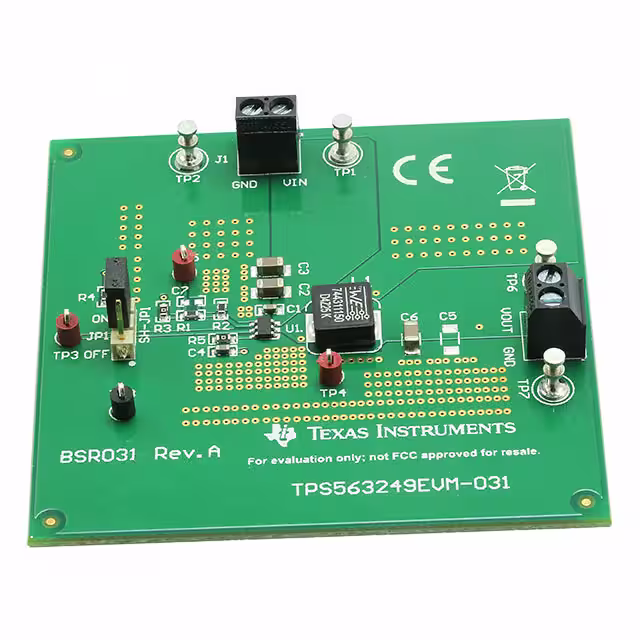

TPS563249EVM-031EVAL BOARD FOR TPS563249 |
1 |
|
Datasheet | D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 17V | Buck | 1.4MHz | Board(s) | TPS563249 |
|

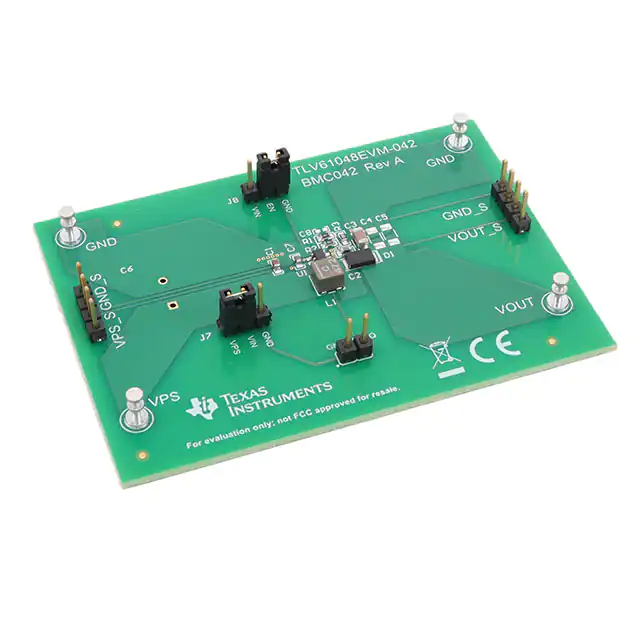

TLV61048EVM-042EVAL BOARD FOR TLV61048 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 200mA | 2.65V ~ 5.5V | Boost | - | Board(s) | TLV61048 |
|

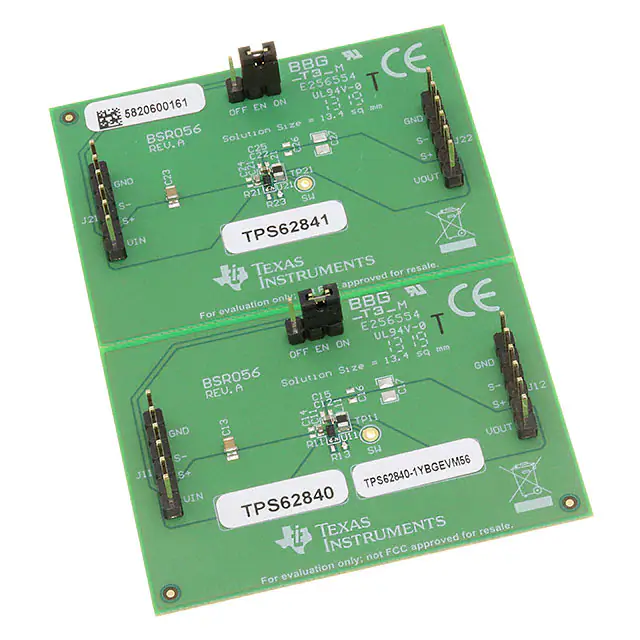

TPS62840-1YBGEVM56EVAL BOARD FOR TPS6284X |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 750mA | 1.8V ~ 6.5V | Buck | - | Board(s) | TPS6284x |
|
TPSM265R1EVMEVAL BOARD FOR TPSM265R1 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V, 5V, 12V, 15V | 100mA | 3V ~ 65V | Buck | 500kHz | Board(s) | TPSM265R1 |
|

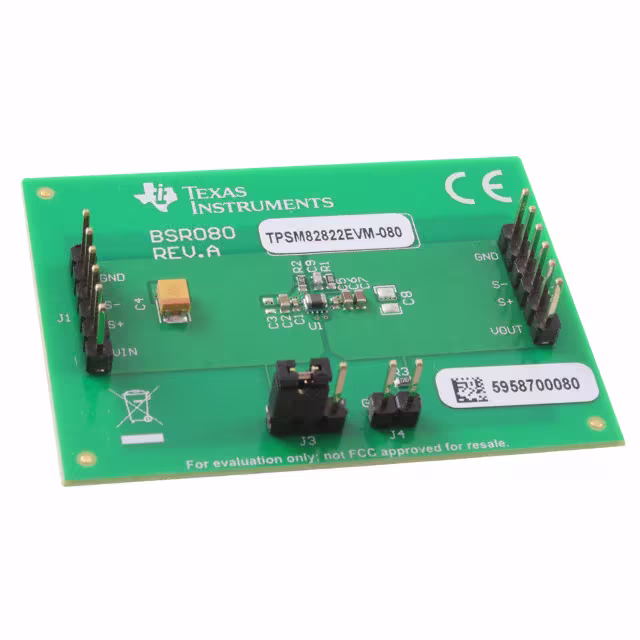

TPSM82822EVM-080EVAL BOARD FOR TPSM82822 |
1 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | TPSM82822 |
|

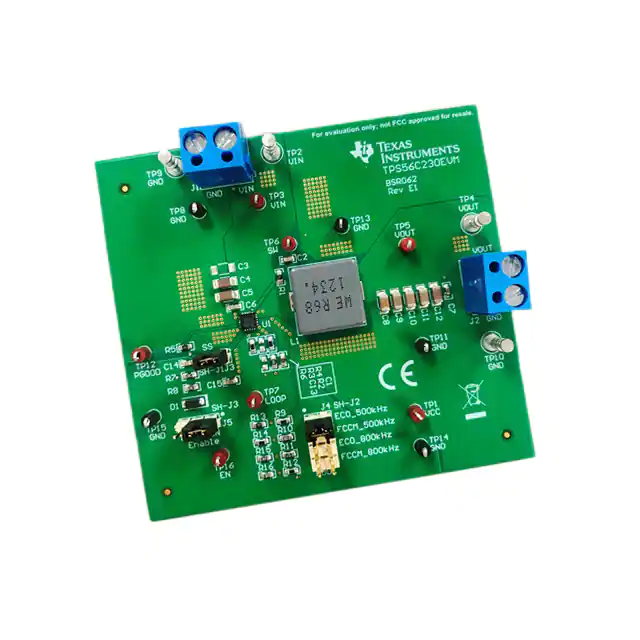

TPS56C230EVMEVAL BOARD FOR TPS56C230 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS56C230 |
|
TPS63811EVMEVAL BOARD FOR TPS63811 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V ~ 5.2V | 2.5A | 2.2V ~ 5.5V | Buck-Boost | - | Board(s) | TPS63811 |
|

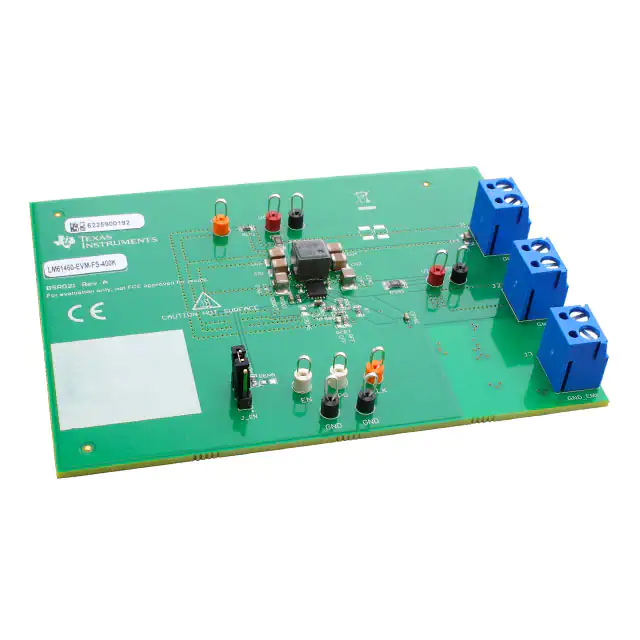

LM61460EVM-FS-400KEVAL BOARD FOR LM61460Q1 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 3V ~ 36V | Buck | 400kHz | Board(s) | LM61460-Q1 |
|
LM60440AQEVMEVAL BOARD FOR LM60440Q1 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 3.8V ~ 36V | Buck | 400kHz | Board(s) | LM60440-Q1 |
|

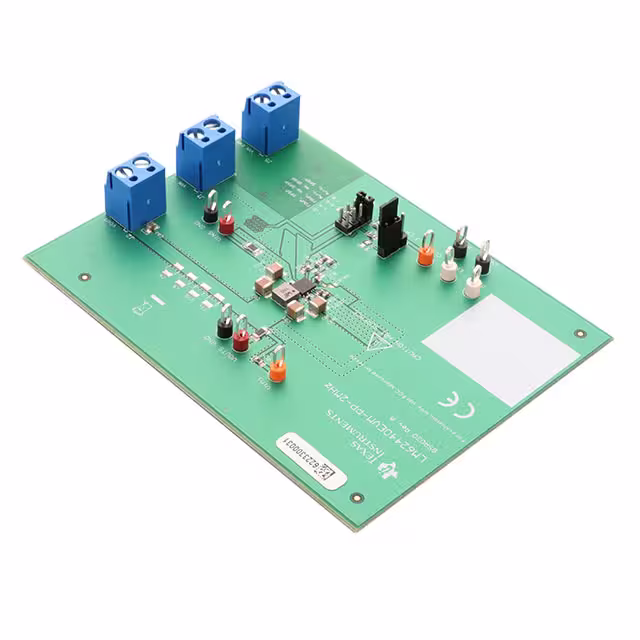

LM62440EVM-PP-2MHZEVAL BOARD FOR LM62440Q1 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 6V ~ 36V | Buck | 2MHz | Board(s) | LM62440-Q1 |
