DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCP-LT1962-EVALZEVAL BOARD FOR LT1962 |
3 |
|
Datasheet | SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 19.57V | 300mA | 20V | Buck | - | Board(s) | LT1962 |
|

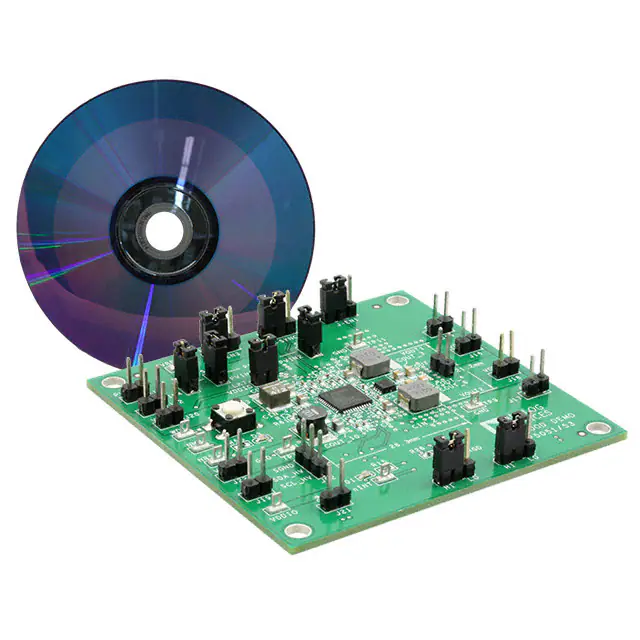

ADP5051-EVALZEVAL BOARD FOR ADP5051 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 5V | 4A, 4A, 1.2A, 1.2A | 4.5V ~ 15V | Buck | 650kHz | Board(s) | ADP5051 |
|

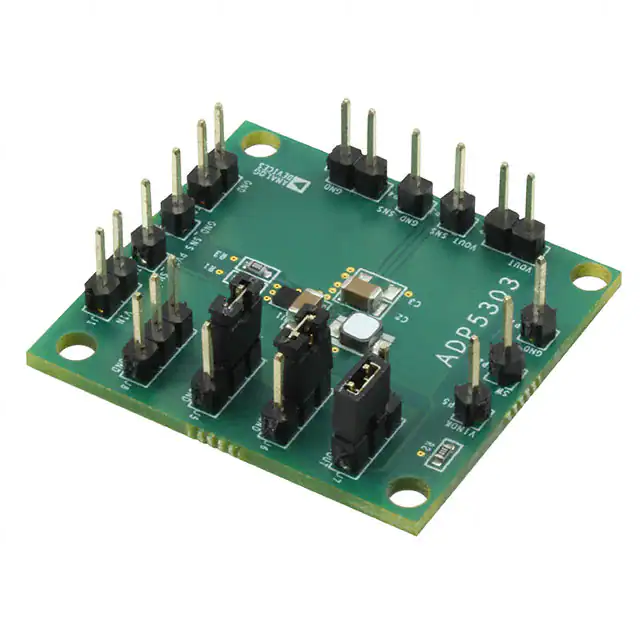

ADP5303-EVALZEVAL BOARD FOR ADP5303 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5V | 500mA | 2.15V ~ 6.5V | Buck | 2MHz | Board(s) | ADP5303 |
|

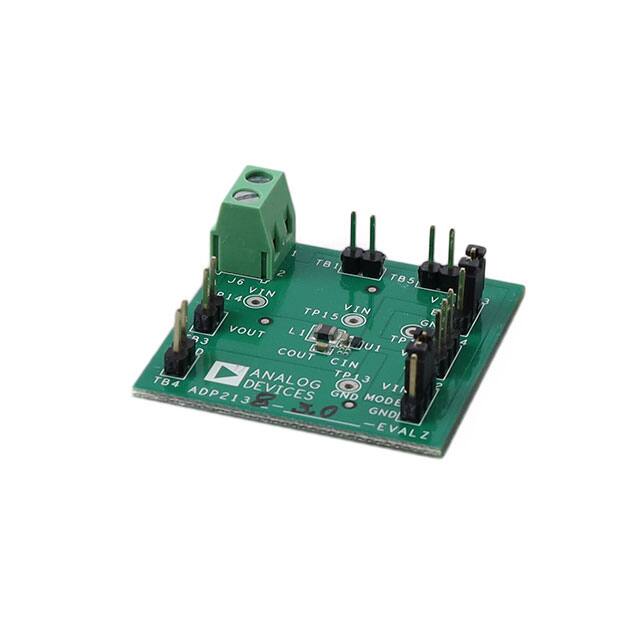

ADP2138CB-3.0EVALZEVAL BOARD FOR ADP2138 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2138 |
|

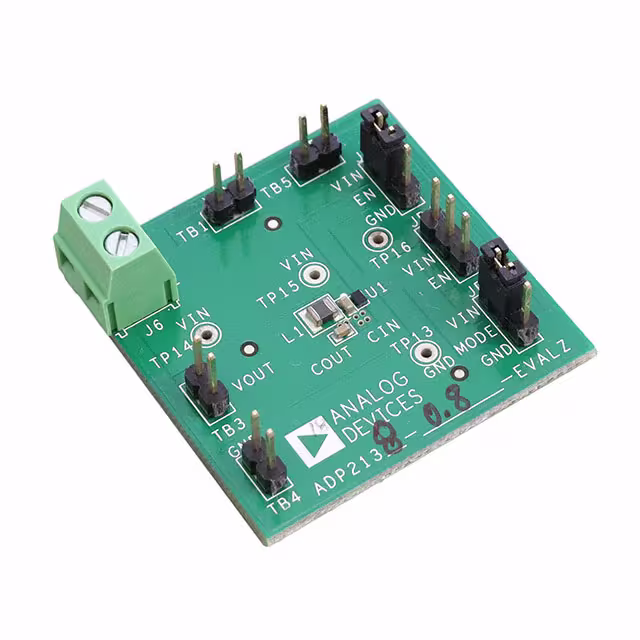

ADP2138CB-0.8EVALZEVAL BOARD FOR ADP2138 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2138 |
|

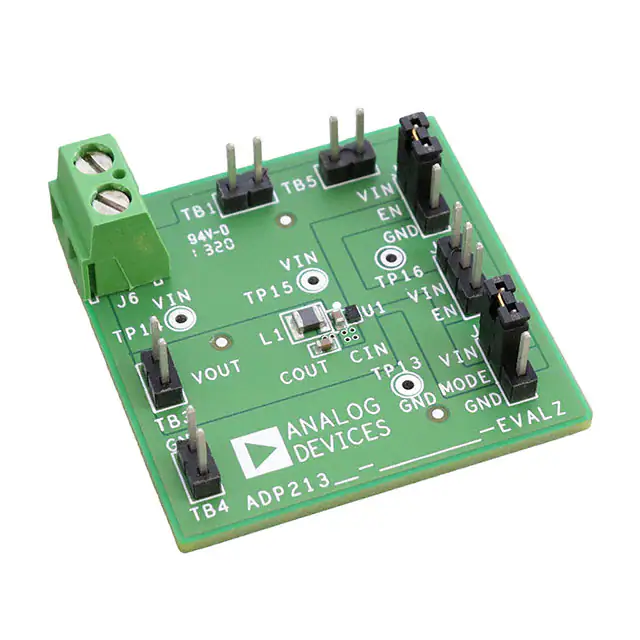

ADP2138CB-2.5EVALZEVAL BOARD FOR ADP2138 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2138 |
|
ADP2138CB-1.0EVALZEVAL BOARD FOR ADP2138 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2138 |
|

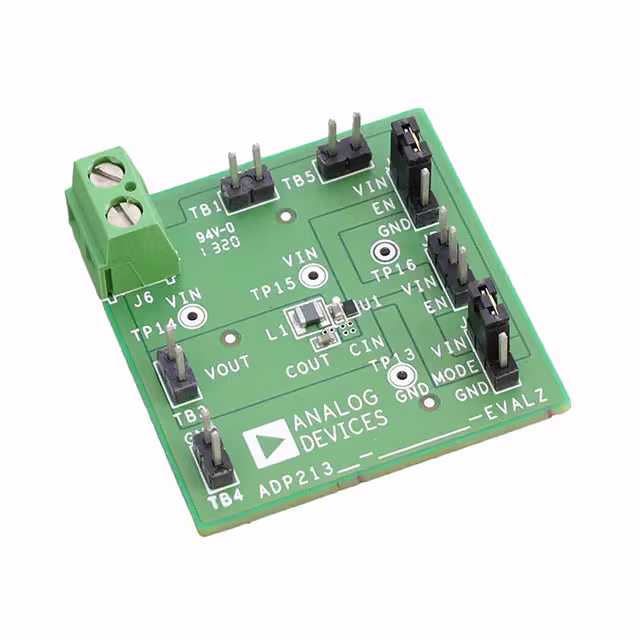

ADP2138CB-1.5EVALZEVAL BOARD FOR ADP2138 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2138 |
|
ADP2138CB-1.2EVALZEVAL BOARD FOR ADP2138 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2138 |
|
ADP2147CB-130EVALZEVAL BOARD FOR ADP2147 |
1 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V or 1.3V | 800mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2147 |
