DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

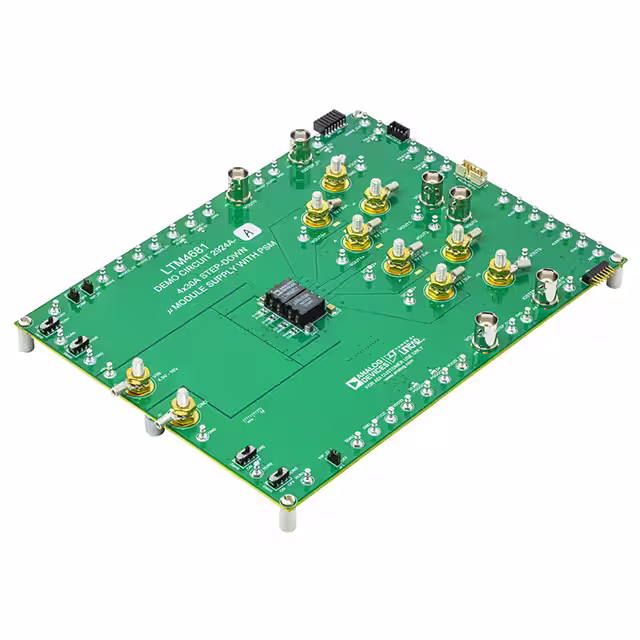

DC2924A-AEVAL BOARD FOR LTM4681 |
1 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V | 30A | 7V ~ 16V | Buck | 350kHz | Board(s) | LTM4681 |
|

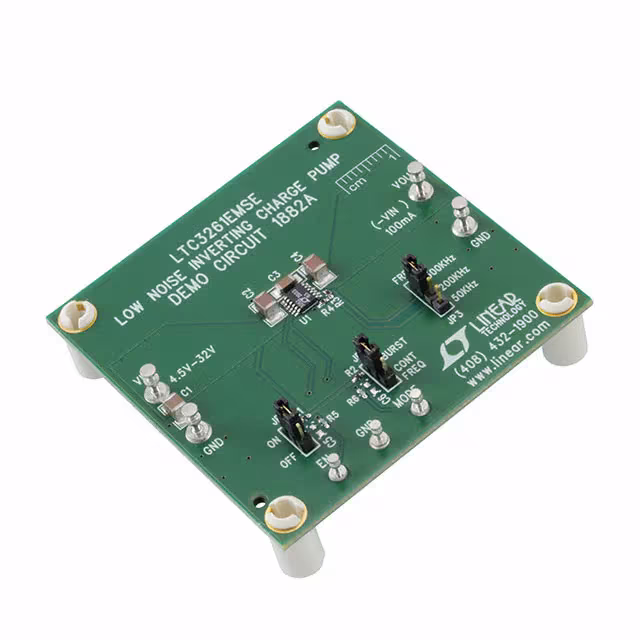

DC1882AEVAL BOARD FOR LTC3261 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | - | 100mA | 4.5V ~ 32V | Inverting | 500kHz | Board(s) | LTC3261 |
|

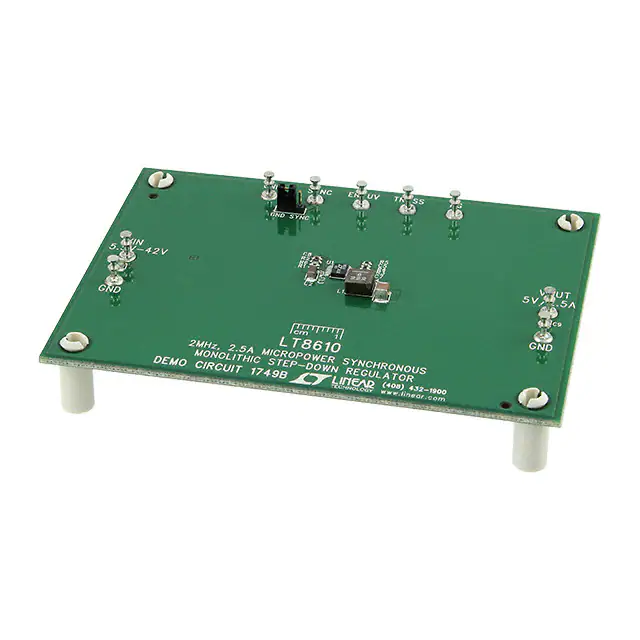

DC1749BEVAL BOARD FOR LT8610 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8610 |
|

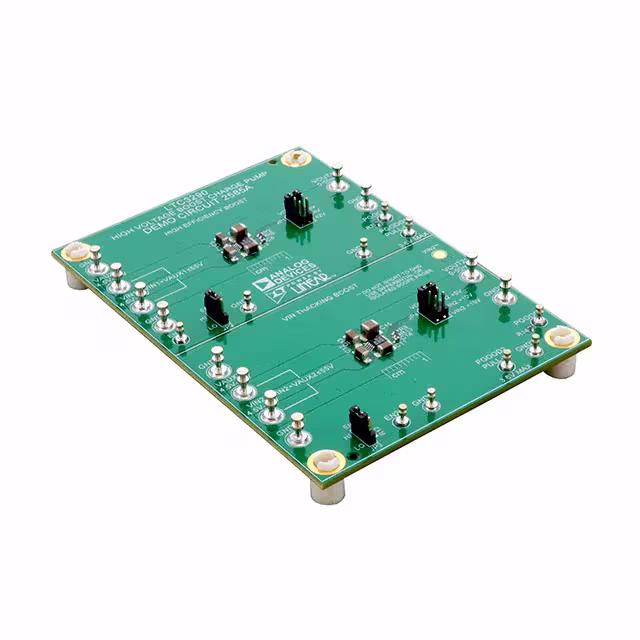

DC2585AEVAL BOARD FOR LTC3290 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V, 24V, 42V | 50mA | 4.5V ~ 50.5V | Boost | - | Board(s) | LTC3290 |
|
DC2851AEVAL BOARD FOR LT7200S |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 5V | 5A | 2.9V ~ 18V | Buck | 1MHz | Board(s) | LT7200S |
|

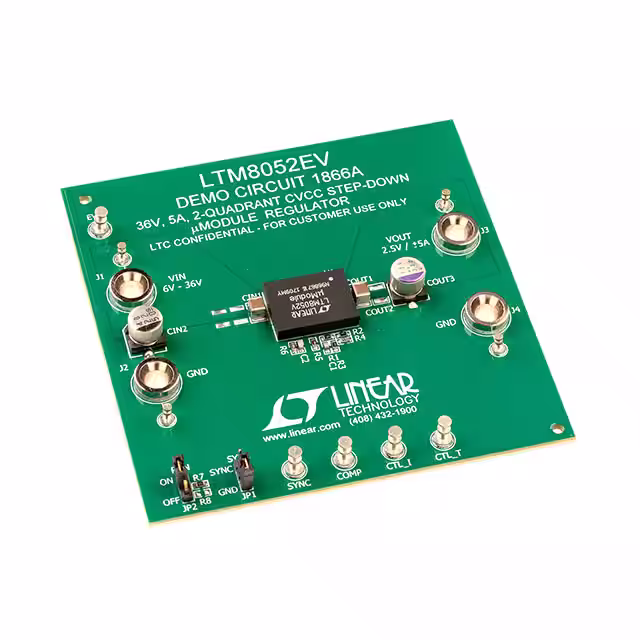

DC1866AEVAL BOARD FOR LTM8052 |
4 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 6V ~ 36V | Buck | 450kHz | Board(s) | LTM8052 |
|

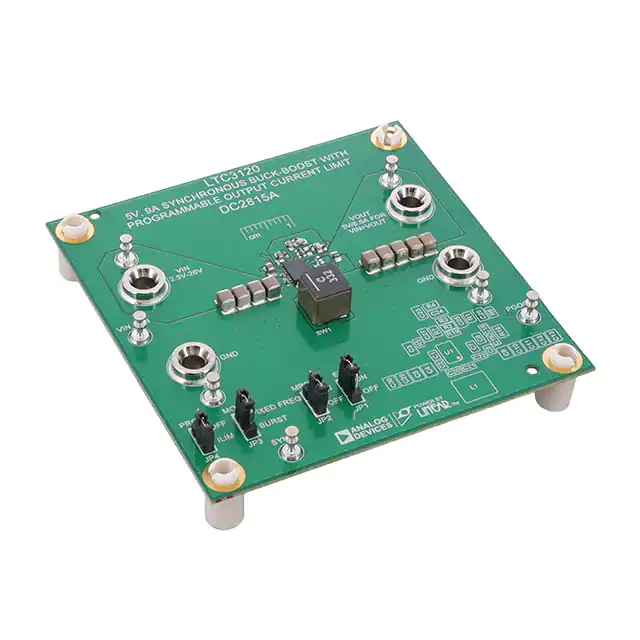

DC2815AEVAL BOARD FOR LT3120 |
1 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 6.5A | 2.5V ~ 26V | Buck-Boost | 1MHz | Board(s) | LT3120 |
|

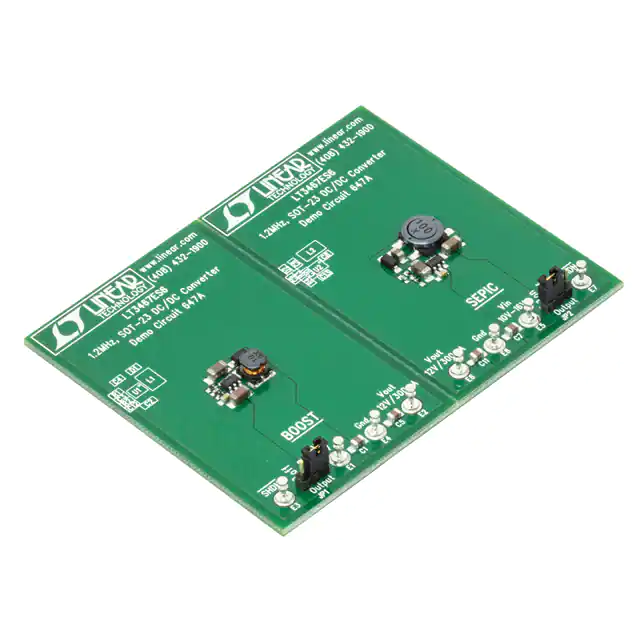

DC647AEVAL BOARD FOR LT3467 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 12V, 12V | 300mA, 300mA | 5V, 10V ~ 16V | Boost, SEPIC | 1.2MHz | Board(s) | LT3467 |
|

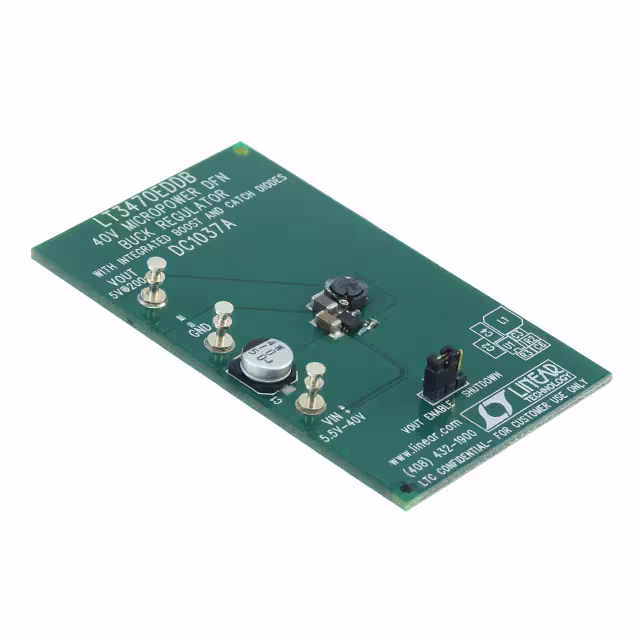

DC1037AEVAL BOARD FOR LT3470 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 200mA | 5.5V ~ 40V | Buck | - | Board(s) | LT3470 |
|

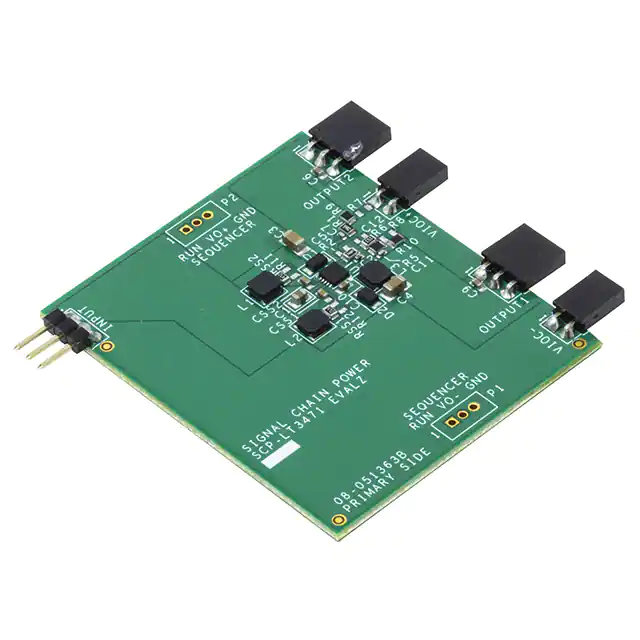

SCP-LT3471-EVALZEVAL BOARD FOR LT3471 |
2 |
|
Datasheet | SCP | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 12V, -12V | 300mA, 200mA | 4.5V ~ 10V | Boost | 1.2MHz | Board(s) | LT3471 |
