DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

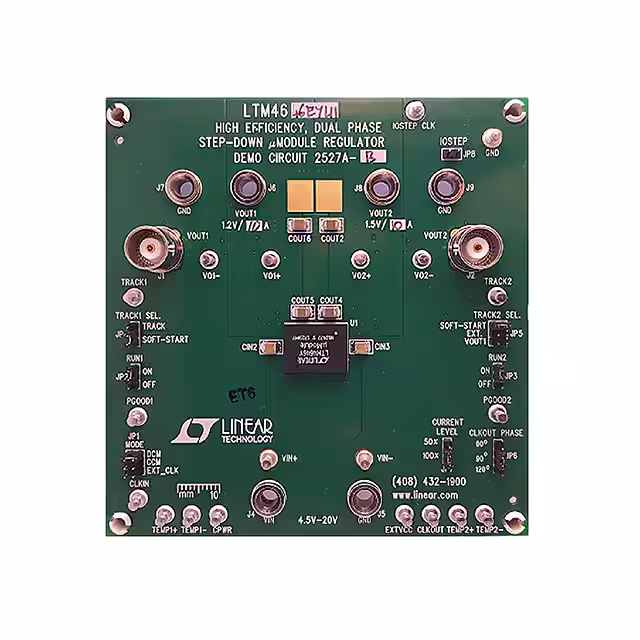

DC2527A-AEVAL BOARD FOR LTM4662 |
4 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5.5V | 15A | 4.5V ~ 20V | Buck | 1MHz | Board(s) | LTM4662 |
|
DC1477BEVAL BOARD FOR LTM4609 |
3 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 30V | 10A | 10V ~ 36V | Buck-Boost | 300kHz | Board(s) | LTM4609 |
|

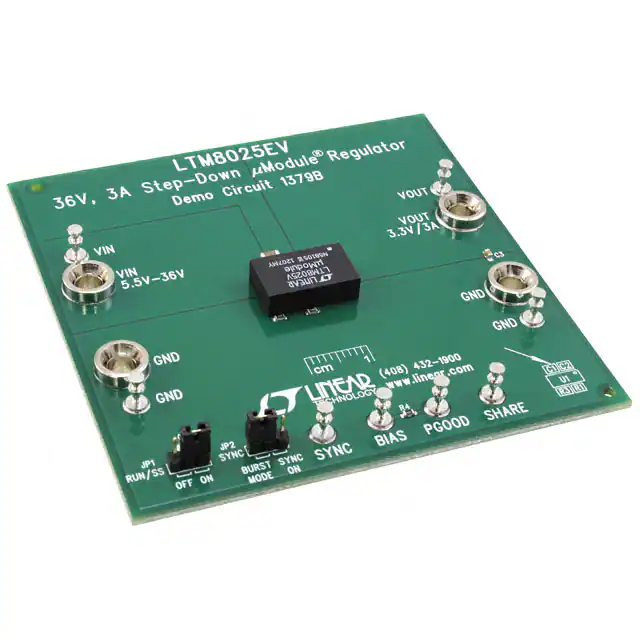

DC1379BEVAL BOARD FOR LTM8025 |
3 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5.5V ~ 36V | Buck | 250kHz ~ 2MHz | Board(s) | LTM8025 |
|

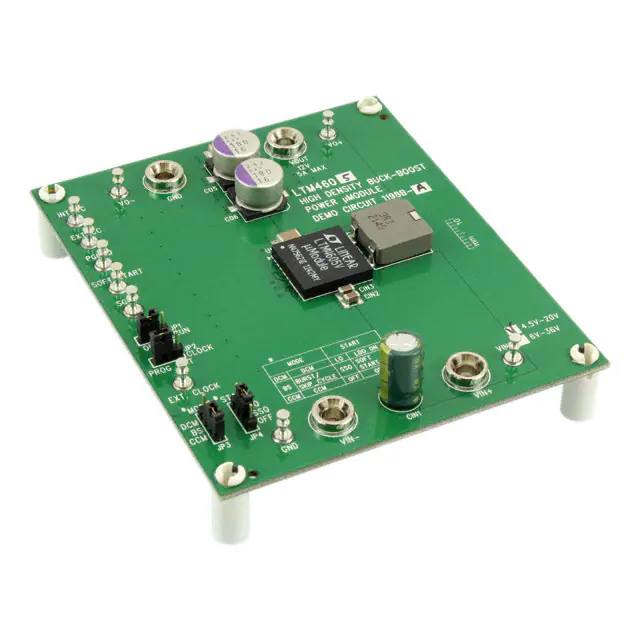

DC1198B-AEVAL BOARD FOR LTM4605 |
3 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 4.5V ~ 20V | Buck-Boost | 300kHz | Board(s) | LTM4605 |
|

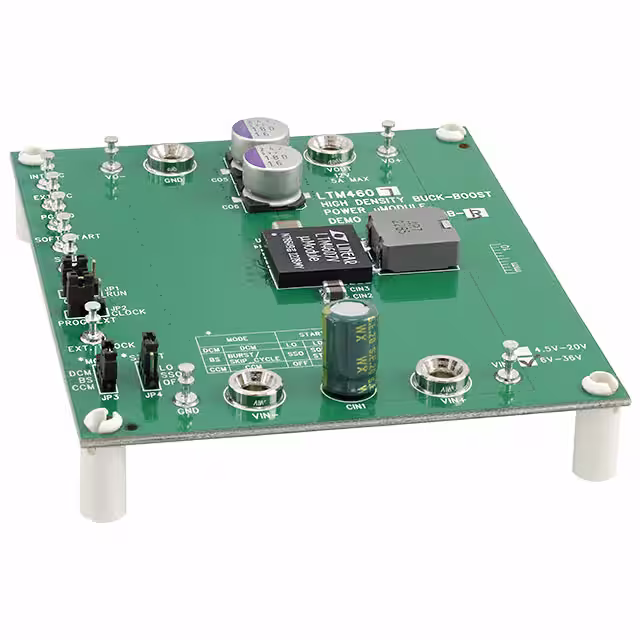

DC1198B-BEVAL BOARD FOR LTM4607 |
3 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 6V ~ 36V | Buck-Boost | 300kHz | Board(s) | LTM4607 |
|
DC1988AEVAL BOARD FOR LTM8058 |
3 |
|
Datasheet | µModule® | Box | Active | DC/DC Converter | 2 Isolated Outputs | - | 5V, 6V | 100mA, 100mA | 4.5V ~ 30V | Flyback | - | Board(s) | LTM8058 |
|

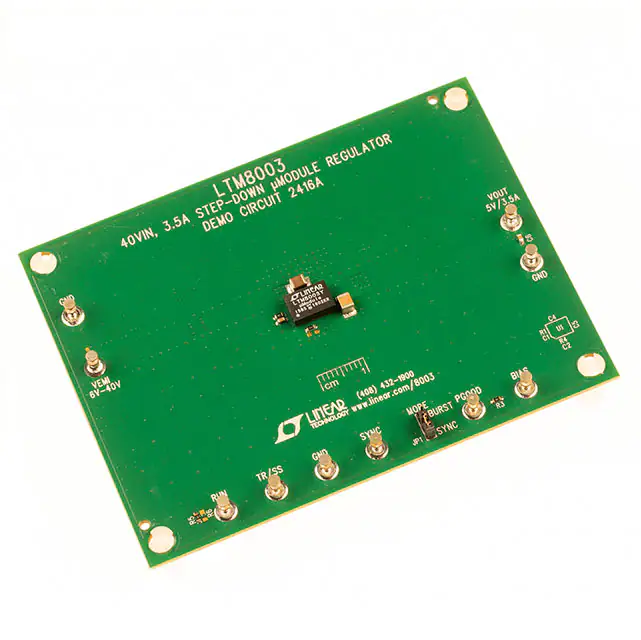

DC2416AEVAL BOARD FOR LTM8003 |
3 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 6V ~ 40V | Buck | 2MHz | Board(s) | LTM8003 |
|

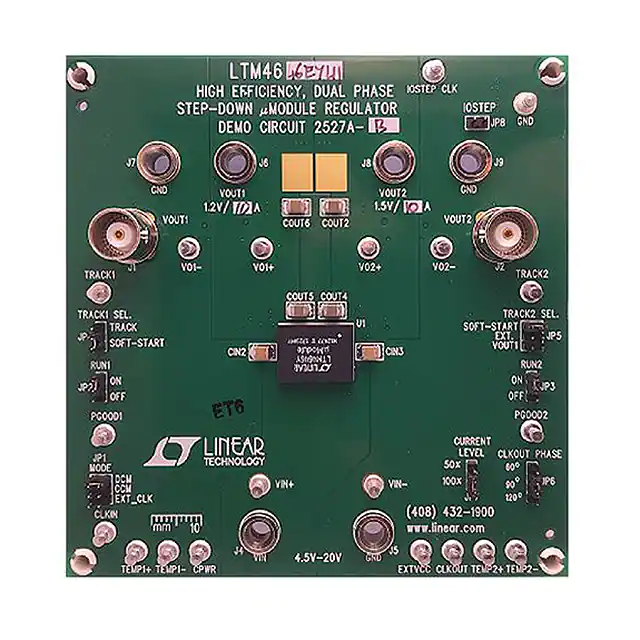

DC2527A-BEVAL BOARD FOR LTM4646 |
3 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 10A, 10A | 4.5V ~ 20V | Buck | 350kHz | Board(s) | LTM4646 |
|

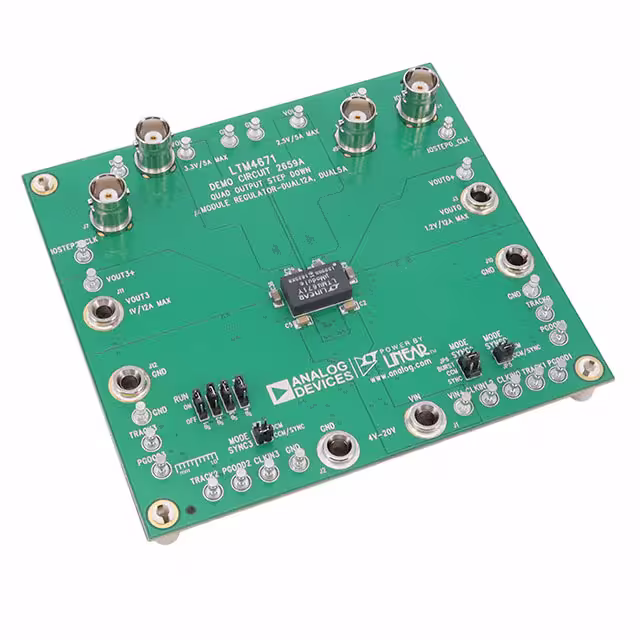

DC2659AEVAL BOARD FOR LTM4671 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V, 1.2V, 2.5V, 3.3V | 12A, 12A, 5A, 5A | 3.6V ~ 20V | Buck | 600kHz, 1MHz | Board(s) | LTM4671 |
|

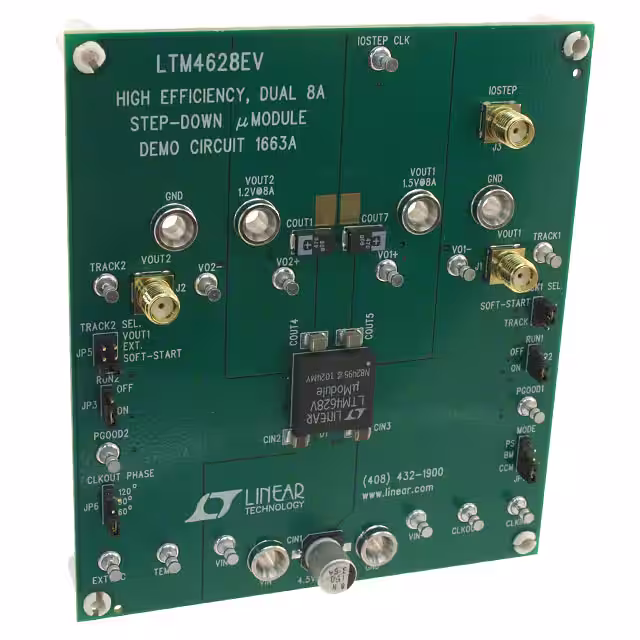

DC1663AEVAL BOARD FOR LTM4628 |
2 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 8A, 8A | 4.5V ~ 26.5V | Buck | 400kHz | Board(s) | LTM4628 |
