Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

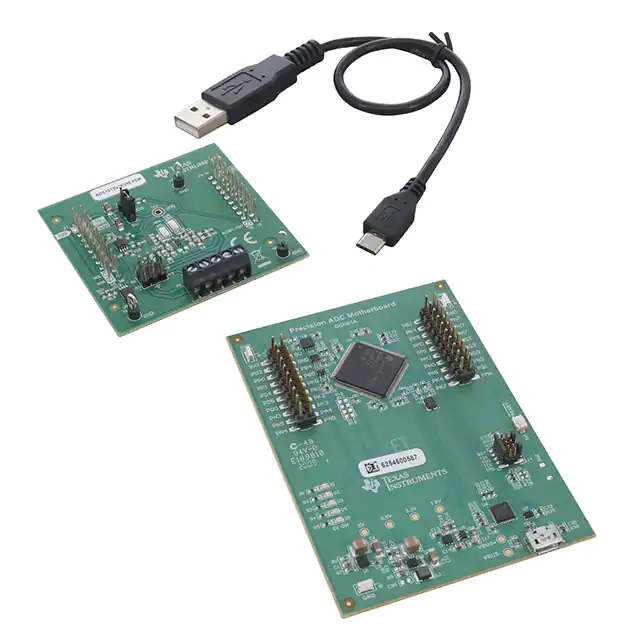

ADS1015V2EVM-PDKADS1015 12-BIT, 3.3-KSPS, 4-CHAN |
8 |
|
Datasheet | - | Box | Active | 1 | 12 | 3.3k | I2C, Serial | - | - | ADS1015 | Board(s) |
|
ADS1115V2EVM-PDKADS1115 16-BIT, 860-SPS, 4-CHANN |
7 |
|
Datasheet | - | Box | Active | 1 | 16 | 3.3k | I2C, Serial | - | - | ADS1115 | Board(s) |
|
ADS1248V2EVM-PDKEVAL BOARD FOR ADS1248 |
7 |
|
Datasheet | - | Box | Active | 1 | 24 | 2k | SPI | ±VREF/gain | 2.3mW @ 2ksps | ADS1248 | Board(s) |
|
ADS114S08EVMEVAL BOARD FOR ADS114S08 |
6 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 4k | SPI | ±VREF/gain | 1.75mW @ 4kSPS | ADS114S08 | Board(s), Cable(s) |
|
ADS1220EVMMODULE EVALUATION FOR ADS1220 |
5 |
|
Datasheet | - | Box | Active | 1 | 24 | 2k | SPI | ±VREF | - | ADS1220 | Board(s) |
|
ADS122C04EVMEVAL BOARD FOR ADS122C04 |
4 |
|
Datasheet | - | Bulk | Active | 1 | 24 | 2k | I2C, Serial | - | - | ADS122C04 | Board(s) |
|
ADS112C04EVMEVAL MODULE FOR ADC112 |
4 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 2k | I2C | ±VREF/gain | 2.2mW @ 2kSPS | ADS112C04 | Board(s) |
|
EVAL-AD4030-24FMCZEVALUATION BOARD |
5 |
|
Datasheet | - | Box | Active | 1 | 24 | 2M | Serial, SPI | ±VREF | - | AD4030-24 | Board(s) |
|
|
EVAL-AD4630-24FMCZEVAL BOARD FOR AD4630-24 |
3 |
|
Datasheet | - | Box | Active | 2 | 24 | 2M | Serial, SPI | ±VREF | 15mW @ 2MSPS | AD4630-24 | Board(s) |
|
ADM01097MCP3564 4-CH ADC EVALUATION BOAR |
8 |
|
Datasheet | - | Bulk | Active | 1 | 24 | 153.6k | Serial, SPI | ±VREF/gain | - | MCP3564 | Board(s) |
|
DC1564A-ABOARD DEMO 250MSPS LTC2157-14 |
21 |
|
Datasheet | - | Bulk | Active | 2 | 14 | 250M | Parallel, Serial, SPI | 1.5Vpp | 706mW @ 250MSPS | LTC2157-14 | Board(s) |
|
DC2222A-ADEMO BOARD FOR LTC2500-32 |
5 |
|
Datasheet | - | Box | Active | 1 | 32 | 1M | SPI | ±VREF | 24mW @ 1MSPS | LTC2500-32 | Board(s) |
|
DC2222A-BDEMO BOARD FOR LTC2508-32 |
2 |
|
Datasheet | - | Box | Active | 1 | 32 | 1M | SPI | ±VREF | 24mW @ 1MSPS | LTC2508-32 | Board(s) |
|
TLV320ADC3101EVM-KEVAL MODULE FOR TLV320ADC3001 |
4 |
|
Datasheet | - | Box | Active | 2 | 16 | 96k | I2C, Serial | - | - | TLV320ADC3101 | Board(s) |
|
ADC3140EVM-PDKANALOG TO DIGITAL CONVERTER |
4 |
|
Datasheet | - | Box | Active | 4 | - | 768k | I2S | - | - | TLV320ADC3140 | Board(s) |
|
ADS1282EVM-PDKKIT DEVELOPMENT FOR ADS1282 |
8 |
|
Datasheet | - | Box | Active | 1 | 32 | 4k | Serial | ±VREF/2 | 12mW @ 4kSPS | ADS1282 | Board(s) |
|
ADS131A04EVMEVAL BOARD FOR ADS131A04 |
4 |
|
Datasheet | - | Bulk | Active | 4 | 24 | 128k | SPI | ±VREF/gain | 15.8mW @ 128kSPS | ADS131A04 | Board(s) |
|
ADS127L01EVMEVAL BOARD FOR ADS127L01 |
4 |
|
Datasheet | - | Bulk | Active | 1 | 24 | 512k | SPI | ±VREF | 36.8mW @ 512kSPS | ADS127L01 | Board(s), Cable(s) |
|
ADS8168EVM-PDKDEVELOPMENT DATA ACQUISITION |
3 |
|
Datasheet | - | Bulk | Active | 1 | 16 | 1M | Parallel | ±VREF/2 | - | ADS8168 | Board(s) |
|
ADS9224REVM-PDKDEVELOPMENT DATA ACQUISITION |
3 |
|
Datasheet | - | Box | Active | 2 | 16 | 3M | Serial, SPI | ±4.096V | - | ADS9224R | Board(s) |
