Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEAT-9922-10218BITS MAG ENC ON-OFF AXIS TR 10 |
18 |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | 10K | - | - |
|
|
AEDR-9920-102AEDR-9920, 225 LPI INC ENCODER, |
189 |
|
- |
- | Tape & Reel (TR) | Active | Not Verified | Optical | Quadrature (Incremental) | Programmable | 3V ~ 3.6V | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
AEDR-9820A-102AUTO HT, ENCODER 225LPI, REEL 10 |
188 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | 225 LPI | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-9930EL-102LINEAR 397LPI ENCODER,TNR 100 PC |
39 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

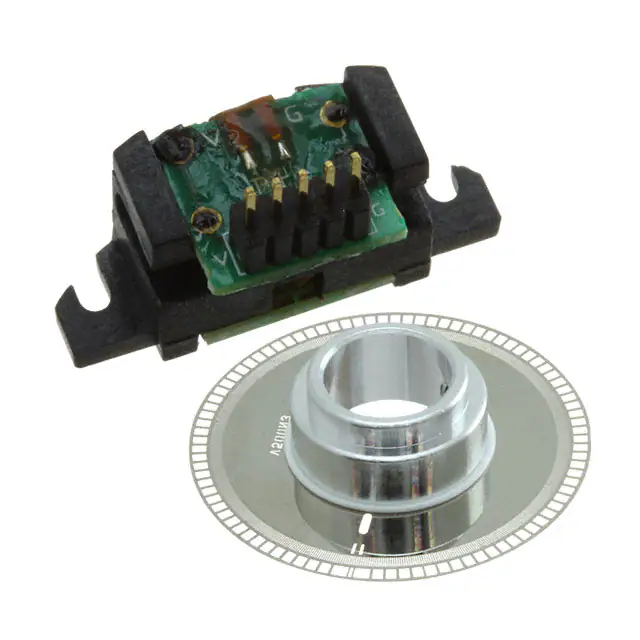

AEDB-9140-A13ROTARY ENCODER OPTICAL 500PPR |
39 |
|
Datasheet | AEDB-9140 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
HEDS-5540#A11ROTARY ENCODER OPTICAL 500PPR |
4 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AR25-AS1P-A12TPCBA CW 6MMTHRU H,SSI/485/ESL |
10 |
|
- |
- | Tray | Active | Not Verified | Optical | Digital, SSI | - | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
HEDS-9701#F54ROTARY ENCODER OPTICAL 256PPR |
73 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
HEDS-5540#A13ROTARY ENCODER OPTICAL 500PPR |
78 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#A05ROTARY ENCODER OPTICAL 500PPR |
5 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 3/16" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

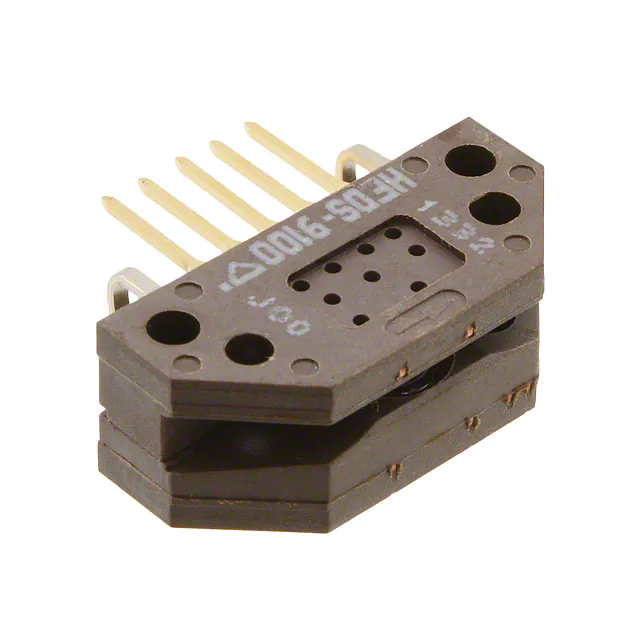

HEDS-9100#J00ROTARY ENCODER OPTICAL 1024PPR |
95 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AEDR-9830DP-102ENCODER DP 318LPI, REEL 100U |
30 |
|
Datasheet | AEDR | Tray | Active | - | Incremental | Quadrature (Incremental) | - | 3.3V ~ 5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
|
AEDR-9930E-102REFLECTIVE ROTARY 397LPI ENCODER |
177 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AR25-AB1P-A15TPCBA CW 15MMTHRU H,BISS C |
24 |
|
- |
- | Tray | Active | Not Verified | Optical | BiSS-C | - | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
|
AEAT-9922-Q2418BITS MAG ENC ON-OFF AXIS |
1 |
|
Datasheet | - | Tube | Active | Not Verified | Magnetic | PWM | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | - | No | No | - | - | - | - | - | - |
|

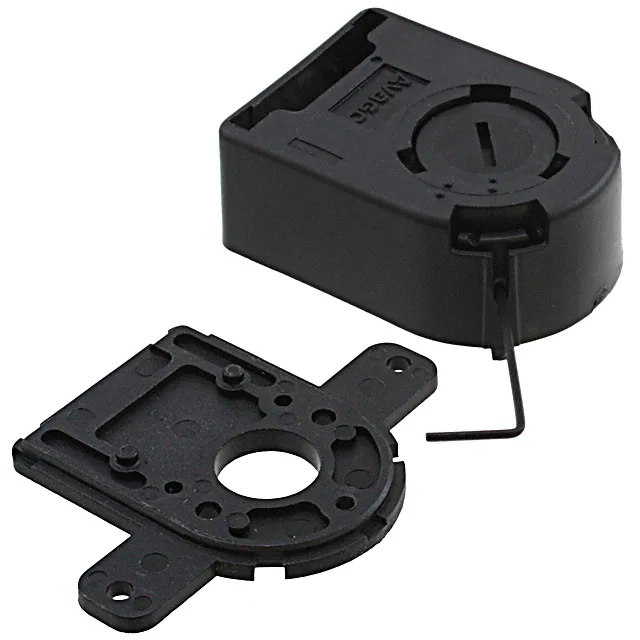

HEDS-5600#E06ROTARY ENCODER OPTICAL 200PPR |
0 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

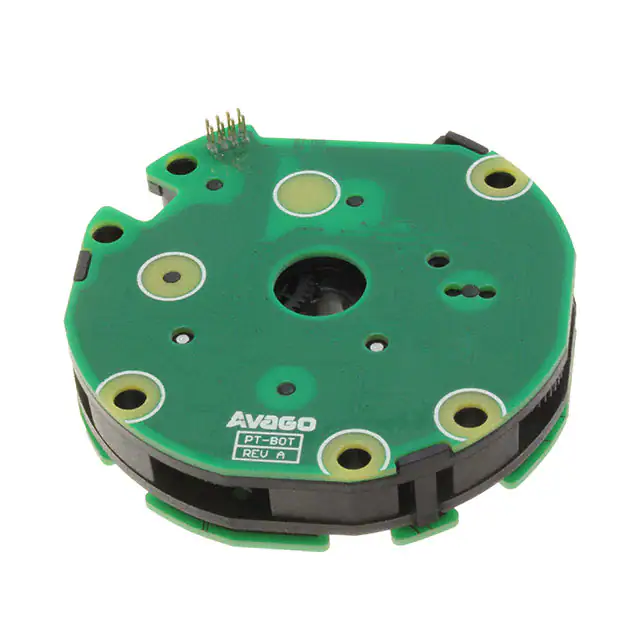

AEAT-84AD-LBSC0ROTARY ENCODER OPTICAL 4096PPR |
0 |
|
Datasheet | AEAT-84AD | Bulk | Active | Not Verified | Optical | Gray Code (Absolute) | 4096 | 5V | 10mm Geared Center | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|

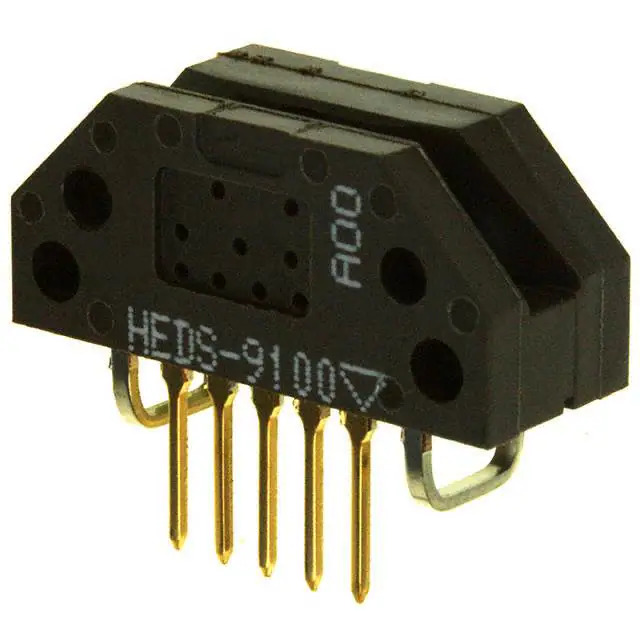

HEDS-9100#A00ROTARY ENCODER OPTICAL 500PPR |
0 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDM-5600#B13ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#56RROTARY ENCODER OPTICAL 32PPR |
0 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
