Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5500#I06ROTARY ENCODER OPTICAL 512PPR |
219 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 512 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#A13ROTARY ENCODER OPTICAL 500PPR |
193 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

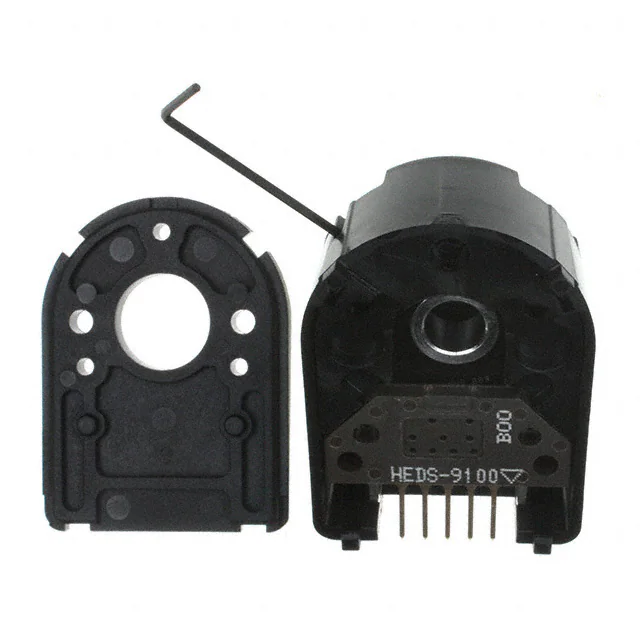

HEDM-5500#B06ROTARY ENCODER OPTICAL 1000PPR |
86 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AEDL-5810-Z12ROTARY ENCODER OPTICAL 5000PPR |
50 |
|
Datasheet | AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|

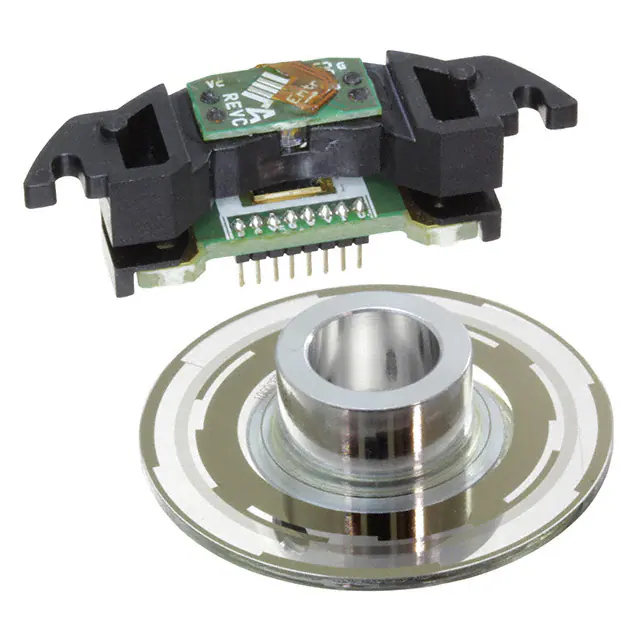

AEDB-9340-B13CROTARY ENCODER OPTICAL 1000PPR |
42 |
|
Datasheet | AEDB-9340 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1000 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|

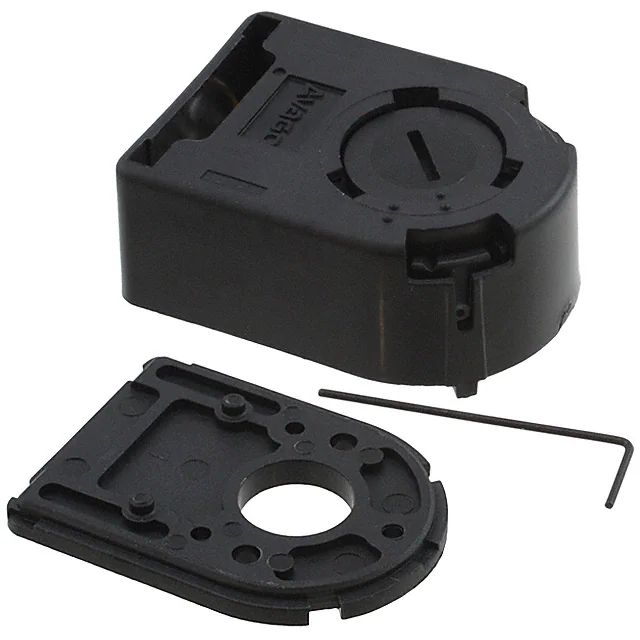

HEDS-5540#H14ROTARY ENCODER OPTICAL 400PPR |
582 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 400 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#A11ROTARY ENCODER OPTICAL 500PPR |
382 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

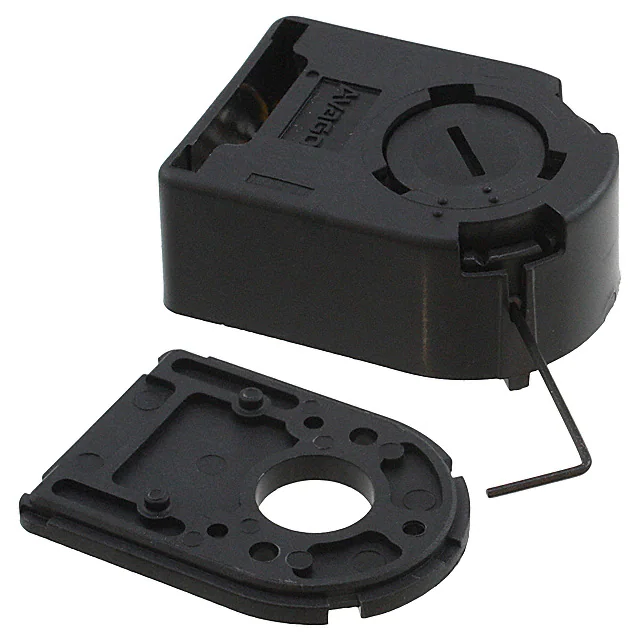

HEDS-5500#A05ROTARY ENCODER OPTICAL 500PPR |
156 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 3/16" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5605#A06ROTARY ENCODER OPTICAL 500PPR |
100 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#I14ROTARY ENCODER OPTICAL 512PPR |
78 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
