Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDM-5500#J13ROTARY ENCODER OPTICAL 1024PPR |
0 |
|
- |
HEDM | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#B01ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 2mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#B02ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#B11ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#B14ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#J02ROTARY ENCODER OPTICAL 1024PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#J06ROTARY ENCODER OPTICAL 1024PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#J12ROTARY ENCODER OPTICAL 1024PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5500#J14ROTARY ENCODER OPTICAL 1024PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5505#J03ROTARY ENCODER OPTICAL 1024PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 1/8" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

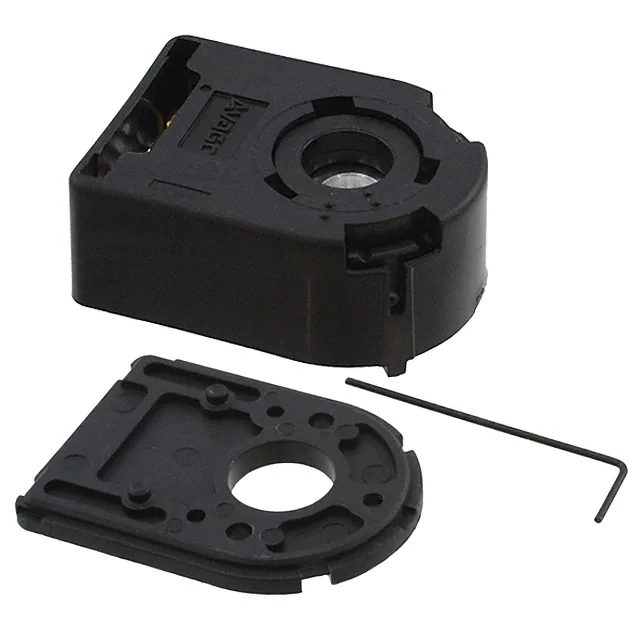

HEDM-5505#J06ROTARY ENCODER OPTICAL 1024PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5505#J13ROTARY ENCODER OPTICAL 1024PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5540-B02ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1000 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5540-B13ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1000 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5540-B14ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1000 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HEDM-5600#B06ROTARY ENCODER OPTICAL 1000PPR |
0 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
HRPG-AD16#16FROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HRPG-AD16#16RROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HRPG-AD16#51RROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Round End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HRPG-AD16#54FROTARY ENCODER OPTICAL 16PPR |
0 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Round End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
