EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NUF2240W1T1FILTER RC(PI) 100 OHM/17PF SMD |
0 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | 125MHz (Cutoff) | -20dB @ 800MHz | 100 | - | R = 100Ohms, C = 17pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.09mm) |
|
NUF2450MUT2GFILTER LC(PI) 2.3NH/240PF SMD |
0 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 2 | 20MHz (Cutoff) | -30dB @ 800MHz ~ 5GHz | 1.3 | - | L = 2.3nH, C = 240pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.022" (0.55mm) |
 Exposed Pad.jpg)
|
NUF8600MNTXGFILTER RC(PI) 50 OHM/17PF SMD |
0 |
|
- |
- | 16-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 115MHz (Cutoff) | -25dB @ 800MHz ~ 2.2GHz | 50 | - | R = 50Ohms, C = 17pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.039" (1.00mm) |
|

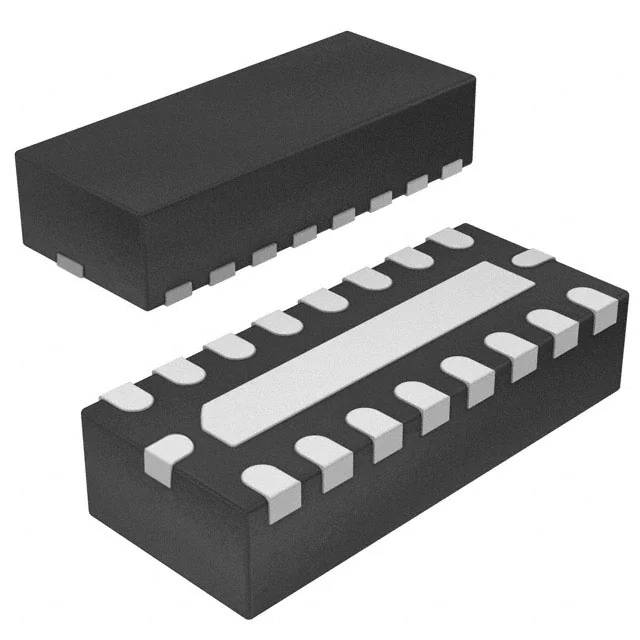

NUF8610MNTXGFILTER RC(PI) 50 OHM/8.5PF SMD |
0 |
|
- |
- | 16-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 260MHz (Cutoff) | -15dB @ 800MHz ~ 2.2GHz | 50 | - | R = 50Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.039" (1.00mm) |
|
IP4065CX11/LF,135FILTER RC(PI) 33 OHM/27PF SMD |
0 |
|
- |
- | 11-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 33, 1.3k, 17k, 15k | - | R = 33Ohms, C = 27pF | Yes | -30°C ~ 85°C | USB | - | - | - | Surface Mount | 0.077" L x 0.058" W (1.97mm x 1.47mm) | 0.026" (0.65mm) |
|
IP4051CX11/LF,135FILTER RC(PI) 47 OHM/25PF SMD |
0 |
|
- |
- | 11-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | - | - | 47, 13k, 56k | - | R = 47Ohms, C = 25pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.075" L x 0.056" W (1.91mm x 1.41mm) | 0.026" (0.65mm) |
|
IP4052CX20/LF,135FILTER RC(PI) 40 OHM/18PF SMD |
0 |
|
- |
- | 20-CSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 40, 25k, 50k | - | R = 40Ohms, C = 18pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.100" L x 0.079" W (2.54mm x 2.00mm) | 0.026" (0.65mm) |
|
IP4058CX8/LF,135FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 33, 1.5k | - | R = 33Ohms, 1.5kOhms, C = 35pF | Yes | -30°C ~ 85°C | USB | - | - | - | Surface Mount | 0.075" L x 0.036" W (1.90mm x 0.91mm) | 0.026" (0.65mm) |
|
|
IP4027CX20/LF,135FILTER RC(PI) 10 OHM/20PF SMD |
0 |
|
- |
- | 20-CSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 10, 40, 1.45k | - | R = 10Ohms, C = 20pF | Yes | -45°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.099" L x 0.075" W (2.52mm x 1.91mm) | 0.026" (0.65mm) |
|
|
IP5003CX9/LF/C,135FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 9-CSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 1.05k | - | R = 1.05kOhms, C = 1000pF | Yes | - | Audio | - | - | - | Surface Mount | - | - |
|
|
IP4307CX4/LF,135FILTER RC(PI) 75 OHM/36PF SMD |
0 |
|
- |
- | 4-WFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 1 | - | - | 75 | - | R = 75Ohms, C = 36pF | Yes | -30°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.030" L x 0.030" W (0.76mm x 0.76mm) | 0.024" (0.60mm) |
|
|
IP4125CX20/LF,135FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 20-CSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 10, 50 | - | R = 10Ohms, 50Ohms, C = 50pF, 100pF, 1000pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.100" L x 0.079" W (2.54mm x 2.00mm) | 0.026" (0.65mm) |
|
IP4353CX15/LF,135FILTER RC(PI) 100 OHM/60PF SMD |
0 |
|
- |
- | 15-WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 100 | - | R = 100Ohms, C = 60pF | Yes | -30°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.094" L x 0.041" W (2.38mm x 1.05mm) | 0.024" (0.60mm) |
|
IP3337CX18/LF/P,13FILTER LC(PI) 60NH/25PF ESD SMD |
0 |
|
- |
- | 18-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 7 | 180MHz (Cutoff) | 40dB @ 800MHz ~ 3GHz | 125 | 10 mA | L = 60nH (Total), C = 25pF (Total) | Yes | -35°C ~ 85°C | GSM, LAN, PCS, WAN | - | - | - | Surface Mount | 0.081" L x 0.065" W (2.06mm x 1.66mm) | 0.026" (0.65mm) |
|
IP3338CX24/LF/P,13FILTER LC(PI) 60NH/25PF ESD SMD |
0 |
|
- |
- | 24-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 10 | 180MHz (Cutoff) | 40dB @ 800MHz ~ 3GHz | 125 | 10 mA | L = 60nH (Total), C = 25pF (Total) | Yes | -35°C ~ 85°C | GSM, LAN, PCS, WAN | - | - | - | Surface Mount | 0.083" L x 0.083" W (2.11mm x 2.11mm) | 0.026" (0.65mm) |
|
|
IP5306CX8,135FILTER RC(PI) ESD SMD |
0 |
|
- |
- | 8-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 2.2k | - | R = 2.2kOhms, C = 1700pF | Yes | - | Audio | - | - | - | Surface Mount | 0.047" L x 0.047" W (1.20mm x 1.20mm) | 0.024" (0.60mm) |
|
BGF108CE6328XTSA1FILTER RC 70 OHM/17PF ESD SMD |
0 |
|
- |
- | 18-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC | 7 | - | 45dB @ 800MHz ~ 2GHz | 70 | - | R = 70Ohms, C = 17pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | 5V | - | - | Surface Mount | 0.079" L x 0.066" W (2.02mm x 1.68mm) | 0.026" (0.65mm) |
|
BGF112E6328XTSA1FILTER RC(PI) 15 OHM/0.005UF SMD |
0 |
|
- |
- | 5-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | 30dB @ 30MHz ~ 1.5GHz | 15 | - | R = 15Ohms, C = 5000pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.046" L x 0.030" W (1.16mm x 0.76mm) | 0.026" (0.65mm) |
|
CM1402-03CPFILTER RC(PI) ESD SMD |
0 |
|
- |
- | 10-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | 77MHz, 85MHz (Cutoff) | 30dB @ 1GHz | 47, 100 | - | R = 47Ohms, 100Ohms, C = 20pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.077" L x 0.052" W (1.96mm x 1.33mm) | 0.028" (0.72mm) |
|
|
CM1406-08DEFILTER RC(PI) 200 OHM/15PF SMD |
0 |
|
- |
- | 16-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 105MHz (Cutoff) | 30dB @ 800MHz ~ 3GHz | 200 | - | R = 200Ohms, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.031" (0.79mm) |
